The VDO 333-015-001K Cockpit Vision tachometer is an 80 mm, 12V analog RPM gauge designed for accurate engine-speed monitoring from 0 to 7,000 RPM as part of VDO engine monitoring instrumentation. With multi-color backlighting (white, green, red), an anti-glare lens, and a rugged IP64-rated front, it keeps RPM information clearly readable in demanding vehicle and machinery environments while maintaining low current consumption and dependable electrical protection.
- Description
- Ask a Question
-

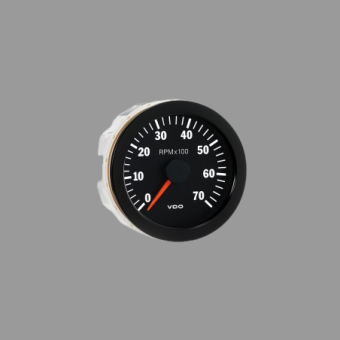

Cockpit Vision 80 mm 12V Analog Tachometer Up to 7,000 RPM
Built for clear, dependable engine-speed monitoring, the VDO 333-015-001K Cockpit Vision tachometer is an 80 mm analog gauge with a 0–7,000 RPM range. Designed for VDO engine monitoring installations, it supports alternator and ignition-derived RPM signals and combines strong front sealing with a modern black-bezel look for clean dashboard integration.
Compatibility
- Vehicles and machinery requiring precise RPM tracking
- Instrument panels with an 80 mm panel hole cutout
- Systems using analog RPM signal inputs from alternator terminal W
- Systems using analog RPM signal inputs from ignition terminal 1
Technical Specifications
Brand VDO Part Number 333-015-001K Series Cockpit Vision Measurement Range 0 to 7,000 RPM Operating Voltage 11–16 V DC Power Supply 12 V DC Current Consumption (Without Illumination) < 100 mA Panel Hole Diameter 80 mm (3 1/8 in) Outside Diameter 85 mm (3 1/3 in) Installation Depth 91 mm Dial Deflection Angle 320° Illumination 12 V, 2 W backlight (white, green, red); optional 24 V illumination Pointer Red backlight Connection 8-pole AMP male blade connector 6.3 x 0.8 mm Illumination Connection AMP male blade connector 6.3 x 0.8 mm (4x) Front Protection IP64 (DIN 40050), ozone proof, UV proof Rear Protection IP42 (DIN 40050) Operating Temperature -20°C to +70°C Nominal Position NL 0 to NL 90 (DIN 16257) Reverse Polarity Protection Yes Housing Plastic, flame retardant Lens Single anti-glare plastic lens Bezel Triangular black threaded ring Color Black CE Yes EMC According to EN 13309 and ISO 13766 Mechanical Shock (8 Hours) Max 1G, 25 Hz to 2000 Hz Country of Origin Switzerland Packaging VDO instrument retail package EAN 4103590700339 HS Code 90292031 Weight 0.31 kg
Product Details
- Component Type: Analog tachometer gauge
- System Use: Engine RPM monitoring within dashboard instrumentation
- Signal Inputs: Alternator terminal W; ignition terminal 1
Features
- Accurate analog RPM display for confident engine load and speed control
- White, green, and red backlighting supports fast readability in day or night operation
- IP64 front protection helps resist dust ingress and water splashes in harsh working conditions
- Anti-glare lens and black bezel deliver a clean, professional cockpit-style appearance
- Low current consumption supports energy-efficient instrument installations
- Reverse polarity protection helps safeguard the gauge in 12 V electrical systems
-
