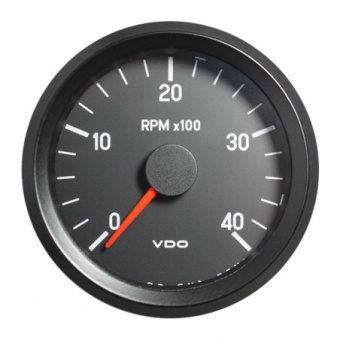

The VDO 333-035-002C Cockpit International tachometer is an analog RPM instrument designed for automotive engine monitoring up to 4,000 RPM, using a tachometer impulse signal from the alternator W terminal and ignition terminal 1. Built for an 80 mm panel cutout and 12V systems (11–16 V DC), it uses an 8-pole AMP male blade connector for the sensor signal and a separate AMP male blade connector for illumination, delivering clear, dependable engine speed feedback for road and workshop builds.
- Description
- Ask a Question
-
VDO Cockpit International 80 mm Analog Tachometer for 12V Systems
The VDO 333-035-002C is a Cockpit International series analog tachometer for accurate engine speed monitoring from 0 to 4,000 RPM. Designed for automotive instrumentation, it reads a tachometer impulse signal via the alternator terminal W and ignition terminal 1, making it a practical choice for alternator-driven RPM sensing. The gauge fits a standard 80 mm panel cutout and uses separate connections for signal and illumination for clean, service-friendly wiring.
Compatibility
- Automotive 12V electrical systems (11–16 V DC) requiring a 0–4,000 RPM analog tachometer
- Installations using tachometer impulse input from alternator terminal W and ignition terminal 1
- Dash panels with an 80 mm (3 1/8 inch) instrument hole
Technical Specifications
Part Number 333-035-002C Series Cockpit International Measurement Range 0 to 4,000 RPM Signal Type Analog tachometer impulse signal Signal Input Alternator terminal W; ignition terminal 1 Operating Voltage 11–16 Volt DC Current Consumption (Without Illumination) < 100 mA Reverse Polarity Protection Yes Panel Hole Diameter 80 mm (3 1/8 inch) Outside Diameter 85 mm (3 1/3 inch) Installation Depth 91 mm Locking Height with Spinlock Nut 0.5–23 mm (optional) Locking Height with Bracket 0.5–12 mm Flush Mounting Not supported Connection (Signal) 8-pole AMP male blade connector, 6.3 x 0.8 mm Illumination Connection AMP male blade connector, 6.3 x 0.8 mm (4x) Deflection Angle 320° Dial Color Black Pointer Red backlight Warning Indication None Programming Yes Lens Single anti-glare Bezel Triangular black (threaded ring) Front Protection Class IP64 (DIN 40050), ozone proof, UV proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -20°C to +70°C CE Standard Yes Mechanical Shock (8 Hours) Max 1G, 25 Hz–2000 Hz EMC Test According to EN 13309 and ISO 13766 Nominal Position NL 0 to NL 90 (DIN 16257) Housing Plastic, flame retardant Illumination Floodlight double: 12V, 3.4 W (white, green, red); 24V, 3 W (optional) Country of Origin Switzerland HS Code 90292031 EAN Code 4103590690258 Successor A2C3832990010
Product Details
- Brand: VDO
- Instrument Type: Analog tachometer
- Intended Use: Engine RPM monitoring
- Mounting Style: Panel mount (80 mm hole)
- Packaging: OEM bulk (10 pieces)
- Included in OEM Package: Tachometer; 2 steel brackets (zinc-plated and chromatized)
Features
- Clear, analog RPM indication for quick engine-speed checks at a glance
- Alternator W-terminal input suits many diesel and gasoline alternator-signal setups
- Separate illumination connection supports tidy wiring and easy backlight integration
- Rugged Cockpit International design with IP-rated front protection for demanding dashboards
- Programmable configuration helps match the gauge to the signal source during installation
-
