The VDO Cockpit International 333-035-029G tachometer is a compact 52 mm analog engine-speed instrument designed for clear RPM monitoring from 0 to 4000 RPM in cars and boats. Using a sensor impulse signal from the alternator W terminal and ignition terminal 1, it delivers stable readings for dependable engine monitoring, with AMP male blade connectors for straightforward wiring and built-in illumination support for excellent cockpit visibility on 12V systems.
- Description
- Ask a Question
-

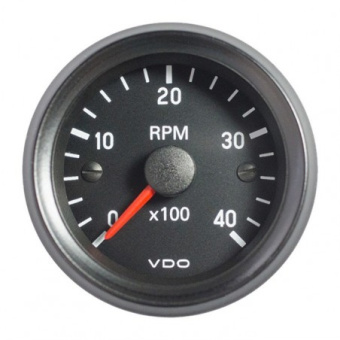

VDO Cockpit International 52 mm 4000 RPM Tachometer
Built for clean, at-a-glance engine monitoring, the VDO 333-035-029G Cockpit International tachometer displays engine speed from 0 to 4000 RPM in a compact 52 mm panel format. Designed for both automotive dashboards and marine cockpits, it uses a sensor impulse signal (alternator W terminal and ignition terminal 1) and supports instrument illumination for clear visibility in low light.
Compatibility
- Cars
- Boats
Technical Specifications
Part Number 333-035-029G Series Cockpit International Measurement Range 0 to 4000 RPM Operating Voltage 11 to 16 V DC Current Consumption (Without Illumination) < 100 mA Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59.25 mm (2 1/3 inch) Installation Depth 83 mm Locking Height with Spinlock Nut Optional 0.5 mm to 23 mm Locking Height with Bracket 0.5 mm to 8 mm Signal Type Tachometer impulse signal Signal Inputs Alternator terminal W; ignition terminal 1 Main Connection AMP male blade connector 6.3 x 0.8 mm (4x) Illumination Connection AMP male blade connector 6.3 x 0.8 mm (2x) Deflection Angle 320° Dial Color Black Pointer Red backlight Programming Yes Reverse Polarity Protection Yes Lens Single, anti-glare Bezel Triangular black (threaded ring) Front Protection Class IP64 (DIN 40050), ozone proof, UV proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -20°C to +70°C EMC According to EN 13309 and ISO 13766 Nominal Position NL 0 to NL 90 (DIN 16257) Housing Plastic, flame-retardant Color Black Weight 0.18 kg EAN Code 4103590690319 HS Code 90292031 Country of Origin Switzerland Successor 333-015-010K
Product Details
- Brand: VDO
- Component Type: Analog tachometer (RPM gauge)
- Installation Style: Panel-mounted instrument for cockpit and dashboard use
- Application: VDO engine monitoring
Features
- Clear analog RPM display for quick engine-speed checks during operation
- Alternator W-terminal input makes it well-suited to many diesel and gasoline charging systems
- Compact 52 mm format with a black dial and anti-glare lens for a clean cockpit look
- Protected against reverse polarity to support reliable electrical-system integration
Retail Package
- VDO Cockpit International 333-035-029G tachometer
- Steel bracket, zinc-plated and chromated
- Connecting materials ordered separately
-
