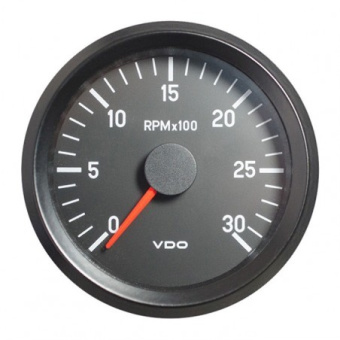

The Cockpit International series VDO 333-045-001C tachometer is a precision analog instrument for monitoring engine speed from 0 to 3,000 RPM in automotive, marine, and industrial dashboards. Built for 24 V DC systems (21.5 to 30 V operating range), it uses alternator terminal W or ignition terminal 1 as the RPM signal source and delivers high visibility through a black anti-glare dial, red backlit pointer, and selectable illumination in white, green, or red. With IP64-rated front protection, UV and ozone resistance, and an interchangeable black triangular bezel, it is designed for reliable RPM monitoring in demanding environments.
- Description
- Ask a Question
-
Cockpit International 24 V Tachometer for Accurate 0–3000 RPM Monitoring
The VDO 333-045-001C is a Cockpit International tachometer engineered to display engine speed from 0 to 3,000 RPM for automotive, marine, and industrial panels. Designed around a standard 80 mm panel cutout and powered by 24 V DC, it interprets RPM using common engine signal sources such as alternator terminal W or ignition terminal 1. A black anti-glare dial, red backlit pointer, and selectable illumination colors support clear reading day or night, while the IP64 front rating helps protect the instrument in harsh operating conditions.
Compatibility
- Automotive applications
- Marine applications
- Industrial applications
Features
- Accurate analog RPM indication up to 3,000 RPM for dependable engine monitoring
- Black anti-glare dial with red backlit pointer for fast, confident readings
- Selectable instrument illumination in white, green, or red to match cockpit or cab lighting
- IP64 front protection with UV and ozone resistance for demanding environments
- Interchangeable black triangular bezel for flexible dashboard styling
- Reverse polarity protection supports robust installation on 24 V systems
Product Details
- Brand: VDO
- Part Number: 333-045-001C
- Series: Cockpit International
- Instrument Type: Tachometer (engine RPM gauge)
- Signal Input: Alternator terminal W; ignition terminal 1
- Bezel: Black triangular, interchangeable (special tool required)
- Housing: Plastic, flame-retardant
- Country of Origin: Switzerland
- Successor Part Number: A2C3832980010
Technical Specifications
Measurement Range 0 to 3,000 RPM Operating Voltage 21.5 to 30 V DC Nominal System Voltage 24 V DC Current Consumption (Without Illumination) < 100 mA Panel Cutout Diameter 80 mm (3 1/8 inch) Outside Diameter 85 mm (3 1/3 inch) Installation Depth 91 mm Locking Height (Spinlock Nut) Optional 0.5 to 23 mm Locking Height (Bracket) 0.5 to 12 mm Main Connection 8-pole AMP male blade connector 6.3 x 0.8 mm Illumination Connection AMP male blade connector 6.3 x 0.8 mm (4x) Deflection Angle 320° Dial Black Pointer Red, backlit Lens Single anti-glare plastic Front Protection Class IP64 (DIN 40050) Rear Protection Class IP42 (DIN 40050) Operating Temperature -20°C to +70°C Mechanical Shock Max 1G, 25 Hz to 2000 Hz Standards CE certified; EMC tested according to EN 13309 and ISO 13766 Programming Yes Warning Indication None EAN Code 4103590690326 HS Code 90292031 Weight 2.34 kg
OEM Bulk Package
- 10 pieces VDO Cockpit International tachometer 333-045-001C
- 2 steel brackets, zinc-plated and chromatized
- Connecting material ordered separately
-
