The VDO Cockpit International tachometer 333-035-003G is an 80 mm analog engine-speed instrument built for VDO engine monitoring, displaying 0 to 7,000 RPM for clear, at-a-glance control. Designed for 12 V systems (11–16 V DC), it accepts an RPM signal from either alternator terminal W or ignition terminal 1 and connects via an 8-pole AMP male blade connector, with dedicated blade terminals for illumination to keep the dial readable in low-light operation.
- Description
- Ask a Question
-

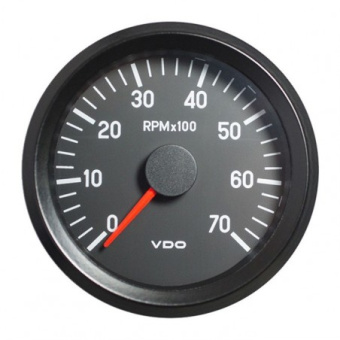

Cockpit International 80 mm Analog Tachometer 0–7000 RPM
Built for VDO engine monitoring, the VDO 333-035-003G Cockpit International tachometer provides a stable, easy-to-read analog display of engine speed from 0 to 7,000 RPM. It is designed for standard panel installation with an 80 mm panel hole and supports RPM input from either the alternator W terminal or the ignition terminal 1, making it a practical choice for many 12 V engine installations.
Compatibility
- 12 V electrical systems (11–16 V DC)
- Installations using alternator terminal W (tachometer impulse signal)
- Installations using ignition terminal 1 (tachometer impulse signal)
Product Details
- Brand: VDO
- Series: Cockpit International
- Component Type: Tachometer (analog)
- Function: Engine speed display (RPM)
- Color: Black
- Bezel: Triangular black (threaded ring), interchangeable (special tool required)
- Lens: Single anti-glare plastic
- Warning Indication: None
- Programming: Yes
- Predecessor: 333035003C
Technical Specifications
Part Number 333-035-003G Measurement Range 0 to 7,000 RPM Operating Voltage 11–16 V DC Current Consumption (Without Illumination) < 100 mA Panel Hole Diameter 80 mm (3 1/8 inch) Outside Diameter 85 mm (3 1/3 inch) Installation Depth 91 mm Locking Height With Spinlock Nut (Optional) 0.5–23 mm Locking Height With Bracket 0.5–12 mm Flush Mount No Signal Input Alternator terminal W / Ignition terminal 1 Main Connection 8-pole AMP male blade connector 6.3 x 0.8 mm Illumination Connection AMP male blade connector 6.3 x 0.8 mm (4x) Deflection Angle 320° Dial Illumination Floodlight double; 12 V 3.4 W white/green/red; 24 V 3 W optional Pointer Red backlight Reverse Polarity Protection Yes Front Protection Class IP64 (DIN 40050), ozone proof, UV proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -20°C to +70°C CE Standard Yes EMC Test According to EN 13309 and ISO 13766 Nominal Position NL 0 to NL 90 (DIN 16257) Mechanical Shock (8 Hours) Max 1G, 25 Hz to 2000 Hz Housing Plastic, flame retardant EAN Code 410359065959 HS Code 90292031 Weight 0.38 kg Country of Origin Switzerland
Features
- Clear analog RPM display for quick engine-speed checks during operation
- Accepts common tachometer impulse sources from alternator W or ignition terminal 1
- Panel-friendly 80 mm format with secure bracket or optional spinlock-nut mounting
- Rugged protection ratings (IP64 front, IP42 rear) suitable for demanding installations
- Integrated electrical protection with reverse-polarity safeguarding
Retail Package
- VDO Cockpit International 333-035-003G tachometer
- 2 steel brackets, zinc-plated and chromatized
- Connecting material ordered separately
-
