The VDO Cockpit Vision tachometer 333-015-005G is a rugged 12V analog RPM instrument that tracks engine speed from 0 to 8,000 RPM for automotive and marine engine monitoring dashboards. Designed for clear readability with a black dial and selectable backlighting colors, it integrates easily using alternator W-terminal or ignition terminal 1 signals and adds extra protection in demanding installations thanks to reverse polarity protection and an IP64-rated front face.
- Description
- Ask a Question
-

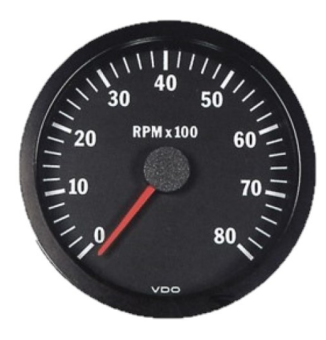

VDO Cockpit Vision 12V 8,000 RPM Engine Tachometer
Built for dependable engine monitoring, the VDO 333-015-005G Cockpit Vision tachometer provides real-time RPM indication from 0 to 8,000 RPM for both automotive and marine instrument panels. With a black dial, configurable backlighting colors, and a protected housing designed for harsh environments, it is a strong choice for precise RPM feedback and confident engine operation.
Compatibility
- Automotive RPM monitoring systems
- Marine RPM monitoring systems
Product Details
- Brand: VDO
- Part Number: 333-015-005G
- Series: Cockpit Vision
- Component Type: Analog tachometer (RPM gauge)
- Signal Inputs: Alternator terminal W; ignition terminal 1
- Dial Color: Black
- Pointer: Red backlight
- Lens: Single anti-glare
- Country of Origin: Switzerland
- Retail Package: 1 tachometer
Features
- Accurate, easy-to-read RPM tracking to support efficient engine management
- Selectable dial backlighting colors: white, green, or red for improved visibility
- Reverse polarity protection for safer installation and long-term reliability
- IP64 front protection against dust and water for demanding automotive and marine environments
- Designed for secure panel mounting in a 100 mm instrument cutout
Technical Specifications
RPM Measurement Range 0 to 8,000 RPM Operating Voltage 11 to 16 V DC Current Consumption (Without Illumination) < 100 mA Deflection Angle 320° Front Protection Class IP64 (DIN 40050), ozone proof, UV proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -20°C to +70°C Housing Plastic, flame retardant Panel Hole Diameter 100 mm (4 inch) Outside Diameter 105 mm (4 1/8 inch) Installation Depth 91 mm Connector Type 8-pole AMP male blade connector 6.3 x 0.8 mm Illumination Connection AMP male blade connector 6.3 x 0.8 mm (4x) Dial Illumination Backlight (12V, 2 W) white, green, red; 24V (2 W) optional Bezel Triangular black, threaded ring; interchangeable with a special tool Nominal Position NL 0 to NL 90 (DIN 16257) Mechanical Shock (8 Hours) Max 1G, 25 Hz to 2000 Hz EMC According to EN 13309 and ISO 13766 HS Code 90292031 EAN 4103590700292 Weight 0.42 kg
In the Box
- VDO Cockpit Vision 333-015-005G tachometer
- 2 steel brackets, zinc-plated and chromatized
-
