The VDO Cockpit International 333-045-002G tachometer is a 24V, 80 mm analog RPM instrument that monitors engine speed from 0 to 4,000 RPM using the alternator W terminal and ignition terminal 1 signal. Built for VDO engine monitoring panels, it fits a standard 80 mm panel cutout and locks securely with a Spinlock nut or bracket, delivering clear, stable RPM indication for professional vehicle and marine dashboards.
- Description
- Ask a Question
-

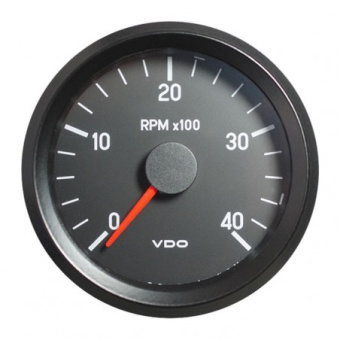

VDO Cockpit International 24V 80 mm Analog Tachometer 0 to 4,000 RPM
Designed for dependable engine speed monitoring, the VDO 333-045-002G Cockpit International tachometer provides an analog RPM display from 0 to 4,000 RPM. It takes its tach signal from the alternator terminal W and ignition terminal 1, making it a practical choice for 24V instrument panels where accurate, easy-to-read RPM feedback supports efficient operation and safe engine loading.
Compatibility
- VDO engine monitoring installations
- Alternator tach signal input: terminal W
- Ignition signal input: terminal 1
- 24V DC electrical systems (operating range 21.5–30V DC)
Technical Specifications
Part Number 333-045-002G Series Cockpit International Measurement Range 0 to 4,000 RPM Operating Voltage 21.5–30V DC Panel Hole Diameter 80 mm (3 1/8 Inch) Outside Diameter 85 mm (3 1/3 Inch) Installation Depth 91 mm Locking Height with Spinlock Nut 0.5–23 mm Locking Height with Bracket 0.5–12 mm Deflection Angle 320° Front Protection Class IP64 (DIN 40050), ozone-proof, UV-proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -20°C to +70°C EMC According to EN 13309 and ISO 13766 Nominal Position NL 0 to NL 90 (DIN 16257) Mechanical Shock (8 hours) Max 1G, 25 Hz to 2000 Hz Reverse Polarity Protection Yes Current Consumption (Without Illumination) < 100 mA Main Connection 8-pole AMP male blade connector 6.3 x 0.8 mm Illumination Connection AMP male blade connector 6.3 x 0.8 mm (4x) Dial Color Black Pointer Red backlight Lens Single anti-glare Bezel Triangular black (threaded ring), interchangeable (special tool required) Housing Plastic, flame-retardant Programming Yes CE Yes HS Code 90292031 EAN 4103590659644 Weight 0.37 kg Country of Origin Switzerland Successor A2C3832990001
Product Details
- Brand: VDO
- Component Type: Analog tachometer (RPM gauge)
- Installation: 80 mm panel cutout; secured with Spinlock nut or bracket
- Signal Inputs: Alternator terminal W and ignition terminal 1
- Flush Mount: None
Features
- Clear analog RPM display for quick engine load and speed checks
- 24V operating range suited to commercial vehicle and marine electrical systems
- Durable instrument protection classes for demanding cockpit and dashboard environments
- Interchangeable bezel design for consistent panel styling
Retail Package
- VDO Cockpit International 333-045-002G tachometer
- 2 x steel bracket, zinc-plated and chromatized
- Connecting material ordered separately
-
