The VDO Cockpit International 332-030-001C voltmeter gauge provides clear, accurate monitoring of 12V DC system voltage across an 8–16V range, helping you track battery condition and charging performance at a glance. Built as a 52 mm panel instrument with a 90° dial, red backlighting, and optional floodlight illumination, it suits automotive, industrial, and marine dashboards while adding durable front IP64 protection, UV and ozone resistance, and vibration-tested ruggedness for harsh operating environments.
- Description
- Ask a Question
-

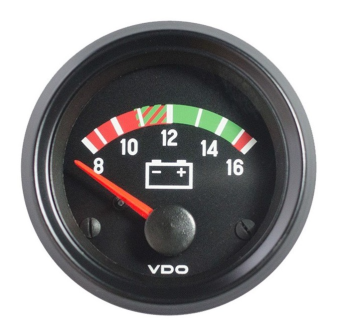

VDO Cockpit International 52 mm Voltmeter for 12V DC Electrical Systems
The VDO 332-030-001C is a Cockpit International voltmeter designed to monitor DC system voltage in vehicles, machinery, and marine panels. With an 8–16V DC measurement range for 12V installations, it helps you spot charging issues early and verify battery condition during operation. The 52 mm format, 90° scale, and illuminated dial support fast readability day or night.
Compatibility
- 12V DC automotive electrical systems
- 12V DC marine electrical systems and instrument panels
- 12V DC industrial and machinery installations
Product Details
- Brand: VDO
- Series: Cockpit International
- Component Type: Voltmeter gauge (analog)
- Use: DC voltage monitoring for battery and charging-system supervision
- Mounting: Bracket mounting
Features
- Clear voltage indication across the 8–16V DC working range for quick system checks
- Night-ready visibility with red backlighting and optional floodlight scale illumination in white, green, or red
- Built for harsh environments with IP64 front protection plus UV and ozone resistance
- Rugged operation with vibration testing up to 1G (25 Hz to 2000 Hz)
- Service-friendly design with interchangeable bezel (special tool required)
Technical Specifications
Part Number 332-030-001C Instrument Type Voltmeter Voltage Measurement Range 8–16V DC Signal 0–16V DC Operating Voltage 11–16V DC Current Consumption (Without Illumination) 67 mA Dial Deflection Angle 90° Dial Color Black Backlighting Red Floodlight Illumination 12V, 3.4 W, optional white/green/red (24V, 3 W optional) Panel Hole Diameter 52 mm (2 1/16 in) Outside Diameter 59.25 mm (2 1/3 in) Installation Depth 67.5 mm Panel Thickness (Bracket Mounting) 0.5–8 mm Front Protection Class IP64 (DIN 40050) Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C Reverse Polarity Protection Yes EMC Test EN 13309 and ISO 13766 Nominal Position NL 0 to NL 90 (DIN 16257) Lens Single, anti-glare Bezel Triangular black threaded ring Connections Male blade connectors 6.3 x 0.8 mm (2x) plus illumination connectors 6.3 x 0.8 mm (2x) Vibration Test Max. 1G, 25 Hz to 2000 Hz (8 hours) CE Yes Predecessor 332-932B Color Black Country of Origin Malaysia EAN 4103590690234 HS Code 90303370 Weight 0.12 kg
OEM Bulk Packaging
- Packaging: VDO Instruments OEM bulk
- Package Content (OEM 10-piece pack): Cockpit International 332-030-001C voltmeter, steel bracket (zinc-plated and chromatized)
-
