ID
1347225
$ 4,431.71
1-2 weeks delivery time
-
+
The Simrad NAC-3 Autopilot Core Pack is designed for vessels over 10 m, including the high-current NAC-3 autopilot, Precision-9 compass, and RF25 rudder feedback. It supports high-current hydraulic pumps and mechanical drives, with reliable autopilot performance and IPX7 waterproof components. Brand: Simrad, article 000-13336-001, barcode 9420024155646.
- Description
- Ask a Question
-
Simrad NAC-3 Autopilot Core Pack
The Simrad NAC-3 Autopilot Core Pack includes the high-current NAC-3 autopilot computer, Precision-9 compass and RF25 rudder feedback unit. This system is designed for vessels above 10 metres (35 feet) and is suitable for high-current hydraulic pumps, mechanical drive units and solenoid valves.

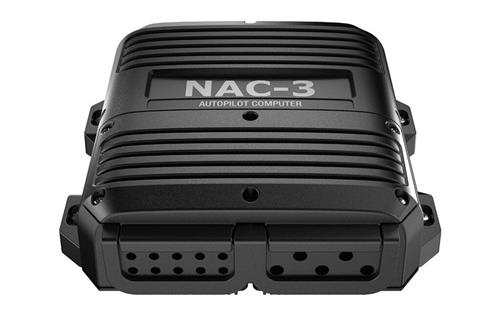

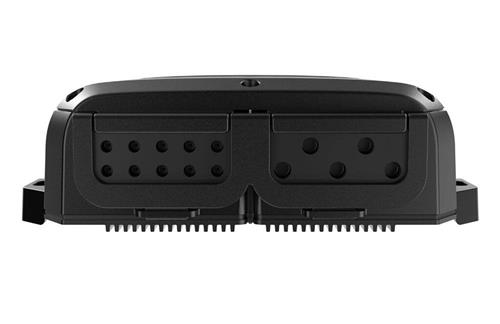

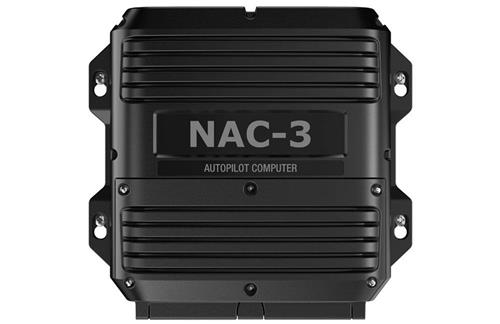

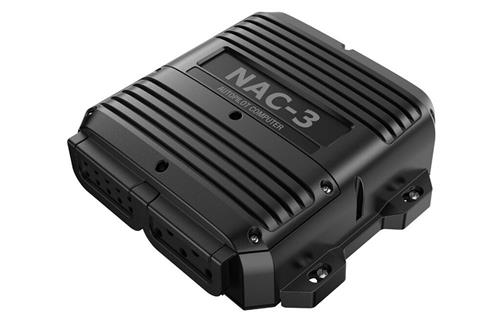

The NAC-3 Autopilot Computer provides the electronics required to control a hydraulic steering pump or mechanical drive unit, while interfacing with heading sensors and rudder feedback units. It is built for reliable steering performance in demanding marine conditions.
NAC-3 Features
- Designed for boats greater than 10 m (35 ft)
- Rated for high-current pumps and mechanical drives
- 30 A continuous / 50 A peak (high-current rating)
- 12 / 24 V input
- 8 A continuous output, 12 A peak
- Solenoid output capable
- 3 A clutch output
- Optional Auto/Standby switch
- B&G Reflex Sailing algorithms
- Plug and Play installation
Precision-9 Compass Features
- Heading, rate of turn (ROT), pitch and roll output over NMEA 2000®
- Heading accuracy ±2° after calibration
- Solid-state sensor technology
- Adjustable mounting bracket for bulkhead or up-mast installation
- IPX7 waterproof
- Single NMEA 2000® connection
RF25 Rudder Feedback Features
- ±120° measurement
- Accuracy ±0.5°
- SimNet connectivity
- 5.5 m attached SimNet cable
Technical Data
Article 000-13336-001 Series NOR-3 Input Voltage 12 / 24 V High-Current Rating 30 A Continuous / 50 A Peak Continuous Output 8 A Peak Output 12 A Maximum Vessel Length Above 10 m (35 ft) Sales Unit 1 Piece
Minimum product requirements: Requires a hydraulic steering pump or mechanical drive unit, and a compatible autopilot controller or networked multifunction display.
Brand: Simrad (Article Code: 000-13336-001) (Barcode: 9420024155646)
-
