ID
1347228
$ 1,860.84
1-2 weeks delivery time
-
+
The Simrad GO9 XSE With HDI Transducer is a complete 9” multifunction display solution including an HDI transducer for sonar, touch screen control, GPS, AIS, WiFi, and Bluetooth. It supports radar, multiple chart formats, and digital switching with IPX6/IPX7 protection. Brand: Simrad, article 000-14445-001, barcode 9420024172131.
- Description
- Ask a Question
-

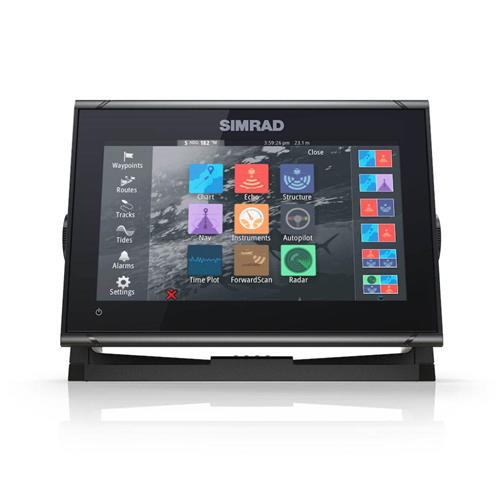

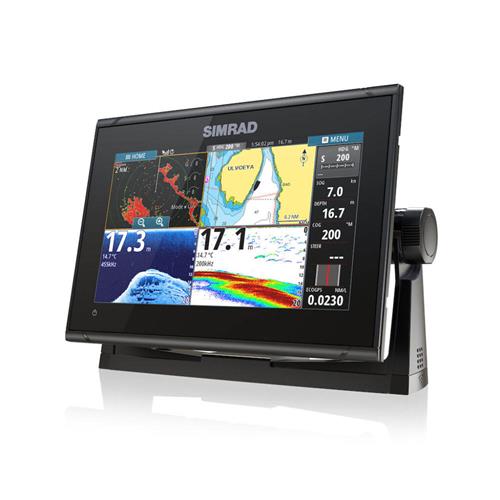

Simrad GO9 XSE With HDI Transducer
The Simrad GO9 XSE with HDI transducer is a complete 9” multifunction display solution for navigation and sonar. Featuring an 800 x 480 px touch screen, it integrates GPS, AIS, WiFi and Bluetooth connectivity. This version includes an HDI transducer for sonar functionality.
The unit supports radar and Sirius connectivity (USA only, unless unlocked) via the 5-pin yellow Ethernet port and offers compatibility with multiple chart formats.
Key Features
- 9" display with 800 x 480 px resolution
- Includes HDI transducer
- Touch screen control
- Supports OP40 or OP50 controller via NMEA 2000
- Ethernet: 1 x 5 pin yellow connector x 1 Mbit
- Radar and Sirius (USA only) connectivity (unless unlocked)
- Supports Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+), NV Digital (Raster US Charts)
- Built-in GPS, AIS, WiFi and Bluetooth
- BEP C-Zone digital switching support
- Bracket or panel mounting
- Water resistant IPX6 | IPX7
Technical Data
Article 000-14445-001 Series GO Display Size 9" Resolution 800 x 480 px Product Width 243 mm Product Height 171 mm Product Depth 83 mm Protection Class IPX6 | IPX7 Voltage 10 – 17 VDC Maximum Consumption 20 W Connection Type NMEA 2000 Micro-C Port, 1 LEN Digital Input BEP C-Zone Sonar Yes Certification CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1 Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-14445-001) (Barcode: 9420024172131)
-
