ID
1347230
$ 1,173.51
1-2 weeks delivery time
-
+
The Simrad GO7 XSR without transducer is a 7” multifunction display with 800 x 480 px touch screen for navigation and sonar support. It integrates GPS, AIS, WiFi, Bluetooth, and supports OP40/OP50 controllers via NMEA 2000, with bracket or panel mounting and IPX6/IPX7 protection. Brand: Simrad, article 000-14448-001, barcode 9420024172162.
- Description
- Ask a Question
-

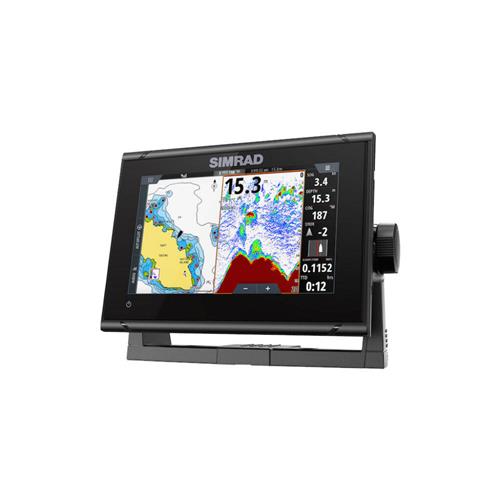

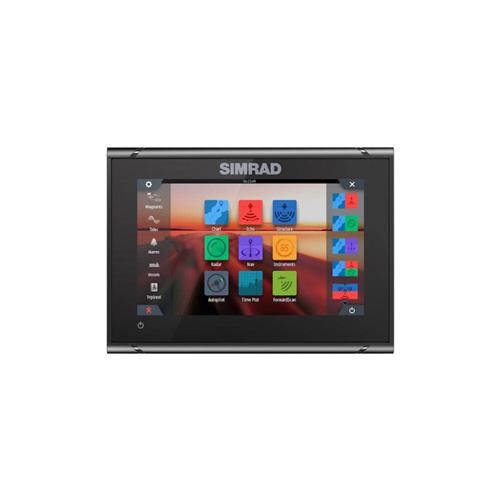

Simrad GO7 XSR Without Transducer
The Simrad GO7 XSR without transducer is a 7” multifunction display offering navigation, sonar support and wireless connectivity. The 800 x 480 px touch screen provides intuitive control and can be expanded with OP40 or OP50 controllers via NMEA 2000.
This model supports multiple chart formats and integrates GPS, AIS, WiFi and Bluetooth. Designed for marine use, it features IPX6 and IPX7 protection and flexible bracket or panel mounting options.
Key Features
- 7" display with 800 x 480 px resolution
- Touch screen control
- Supports OP40 or OP50 controller via NMEA 2000
- Included: TBD
- Supports Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+), NV Digital (Raster US Charts)
- Built-in GPS, AIS, WiFi and Bluetooth
- BEP C-Zone digital input support
- Bracket or panel mounting
- Water resistant IPX6 | IPX7
Technical Data
Article 000-14448-001 Series GO Display Size 7" Resolution 800 x 480 px Product Width 197 mm Product Height 141 mm Product Depth 82.7 mm Protection Class IPX6 | IPX7 Voltage 10 – 17 VDC Maximum Consumption 20 W Connection Type NMEA 2000 Micro-C Port, 1 LEN Digital Input BEP C-Zone Sonar Yes Certification CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1 Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-14448-001) (Barcode: 9420024172162)
-
