ID
1347227
$ 1,769.58
1-2 weeks delivery time
-
+
The Simrad GO9 XSE Without Transducer is a 9” multifunction display for navigation and system control, with touch screen, NMEA 2000 support, radar and optional Sirius connectivity, and compatibility with multiple chart formats. It offers IPX6/IPX7 protection and bracket or panel mounting. Brand: Simrad, article 000-14444-001, barcode 9420024172124.
- Description
- Ask a Question
-

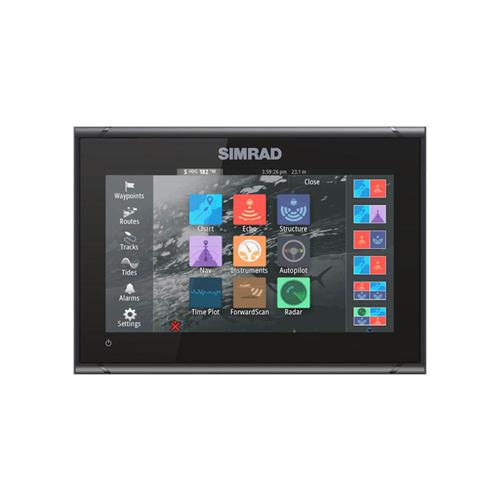

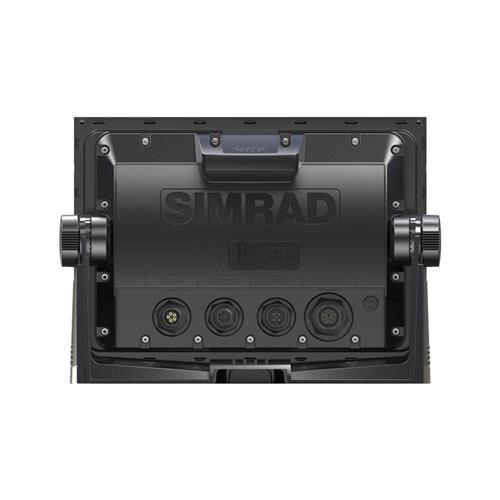

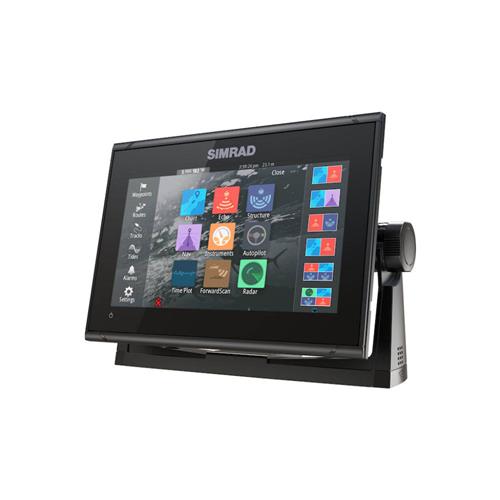

Simrad GO9 XSE Without Transducer
The Simrad GO9 XSE is a 9” multifunction display designed for navigation, sonar and onboard system control. This version is supplied without transducer and offers touch screen operation with optional OP40 or OP50 controller via NMEA 2000. It supports radar and Sirius connectivity (USA only, unless unlocked) through the 5-pin yellow Ethernet connector.
The GO9 XSE supports multiple digital chart options and integrates GPS, AIS, WiFi and Bluetooth connectivity. With IPX6 and IPX7 protection, it is suitable for demanding marine environments.
Key Features
- 9" display with 800 x 480 px resolution
- Touch screen control
- Supports OP40 or OP50 controller via NMEA 2000
- Ethernet: 1 x 5 pin yellow connector x 1 Mbit
- Radar and Sirius (USA only) connectivity (unless unlocked)
- Supports Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+), NV Digital (Raster US Charts)
- Built-in GPS, AIS, WiFi and Bluetooth
- BEP C-Zone digital switching support
- Bracket or panel mounting
- Water resistant IPX6 | IPX7
Technical Data
Article 000-14444-001 Series GO Display Size 9" Resolution 800 x 480 px Product Width 243 mm Product Height 171 mm Product Depth 83 mm Protection Class IPX6 | IPX7 Voltage 10 – 17 VDC Maximum Consumption 20 W Connection Type NMEA 2000 Micro-C Port, 1 LEN Digital Input BEP C-Zone Sonar Okay Certification CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1 Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-14444-001) (Barcode: 9420024172124)
-
