ID
1347226
$ 1,434.29
1-2 weeks delivery time
-
+
The Navico TotalScan Single Transducer M/H for thru hull mounting is a 500W all-in-one sonar transducer supporting Medium and High CHIRP, DownScan Imaging, StructureScan HD, and water temperature data. Suitable for flat hulls or up to 5° deadrise with a fairing block. Brand: Simrad, article 000-14257-001, barcode 9420024169377.
- Description
- Ask a Question
-

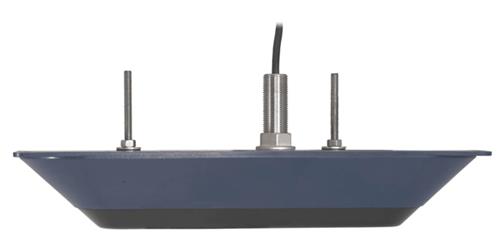

Navico TotalScan Single Transducer M/H For Thru Hull Mounting
The Navico TotalScan Single Transducer M/H for thru hull mounting is an all-in-one sonar solution designed for flat hull installation or hulls with a deadrise up to 5 degrees using a fairing block. With 500W output power, this transducer provides access to Medium CHIRP, High CHIRP, DownScan™ Imaging and StructureScan™ from a single unit.
This TotalScan™ transducer combines Broadband sonar, CHIRP technology and StructureScan® frequencies, allowing detailed fish detection and structure imaging. It also supports water temperature data for complete underwater monitoring.
Key Features
- 500W output power
- Single transducer for thru hull mounting
- Suitable for flat hull or deadrise up to 5° with fairing block
- Supports Medium CHIRP and High CHIRP
- Supports 83/200 kHz Broadband sonar frequencies
- Supports 455/800 kHz StructureScan® frequencies
- DownScan™ Imaging and StructureScan™ support
- Water temperature support
- Broadband, CHIRP, StructureScan HD and DownScan Imaging™ in one unit
Technical Data
Article 000-14257-001 Output Power 500 W Sonar Frequencies 83 / 200 kHz Broadband CHIRP Medium and High CHIRP StructureScan® 455 / 800 kHz Mounting Type Thru Hull (Flat or up to 5° Deadrise with Fairing Block) Water Temperature Supported Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-14257-001) (Barcode: 9420024169377)
-
