ID
1347229
$ 1,303.90
1-2 weeks delivery time
-
+
The Simrad GO7 XSR with HDI transducer is a 7” multifunction display with 800 x 480 px touch screen, including an HDI transducer for sonar. It supports GPS, AIS, WiFi, Bluetooth, radar, and Sirius connectivity (USA only), with bracket or panel mounting and IPX6/IPX7 protection. Brand: Simrad, article 000-14446-001, barcode 9420024172148.
- Description
- Ask a Question
-

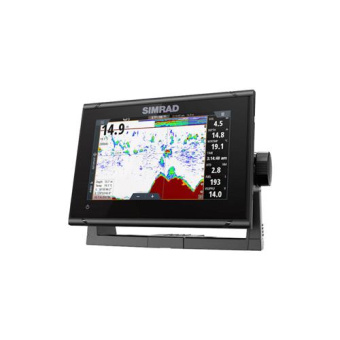

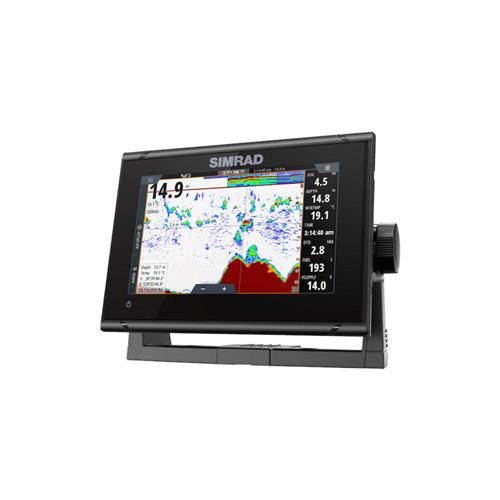

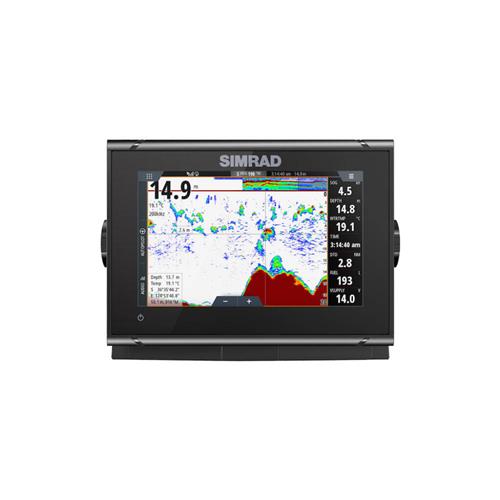

Simrad GO7 XSR With HDI Transducer
The Simrad GO7 XSR with HDI transducer is a compact 7” multifunction display designed for navigation and sonar. This version includes an HDI transducer and features an 800 x 480 px touch screen for easy control. It supports radar and Sirius connectivity (USA only, unless unlocked) via the 5 pin yellow Ethernet connector.
The GO7 XSR integrates GPS, AIS, WiFi and Bluetooth and supports multiple digital chart options. With IPX6 and IPX7 protection, it is suitable for marine environments and can be installed using bracket or panel mounting.
Key Features
- 7" display with 800 x 480 px resolution
- Includes HDI transducer
- Touch screen control
- Supports OP40 or OP50 controller via NMEA 2000
- Ethernet: 1 x 5 pin yellow connector x 1 Mbit
- Radar and Sirius (USA only) connectivity (unless unlocked)
- Included: TBD
- Supports Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+), NV Digital (Raster US Charts)
- Built-in GPS, AIS, WiFi and Bluetooth
- BEP C-Zone digital input support
- Bracket or panel mounting
- Water resistant IPX6 | IPX7
Technical Data
Article 000-14446-001 Series GO Display Size 7" Resolution 800 x 480 px Product Width 197 mm Product Height 141 mm Product Depth 82.7 mm Protection Class IPX6 | IPX7 Voltage 10 – 17 VDC Maximum Consumption 20 W Connection Type NMEA 2000 Micro-C Port, 1 LEN Digital Input BEP C-Zone Sonar Yes Certification CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1 Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-14446-001) (Barcode: 9420024172148)
-
