ID
1347223
$ 706.29
1-2 weeks delivery time
-
+
The Simrad IS35 Digital Gauge displays engine and vessel data via NMEA 2000 with a 3.5” full-colour LCD, day/night backlighting, and customisable pages. It supports engine monitoring, RPM, fuel, speed, and more, with IPX7 waterproof rating and NOS platform compatibility. Brand: Simrad, article 000-13334-001, barcode 9420024155578.
- Description
- Ask a Question
-
Simrad Digital Gauge IS35

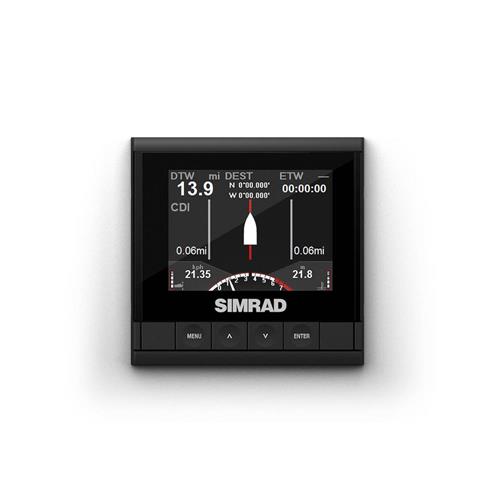

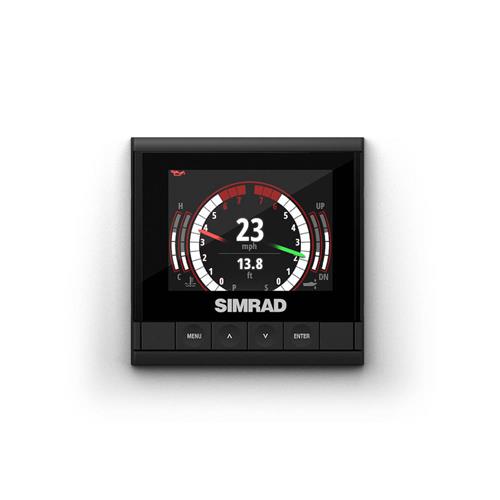

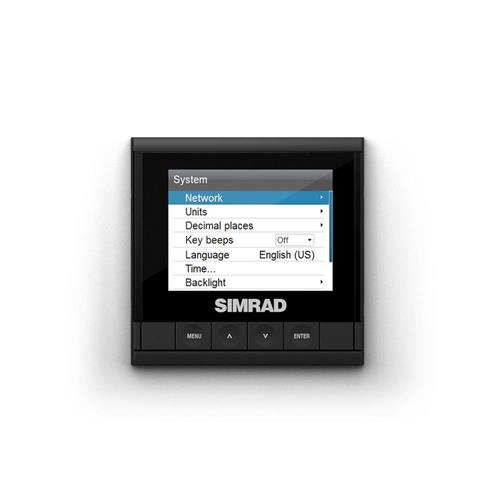

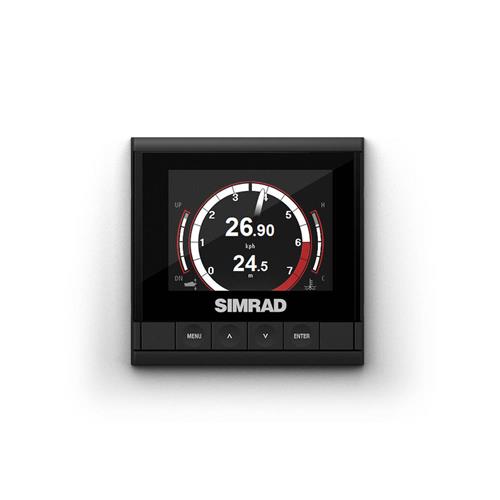

The Simrad IS35 Digital Gauge is designed to display engine and vessel data from NMEA 2000 compatible engines and sensors. The bright 3.5” full colour LCD screen ensures clear visibility in full sunlight and night operation. With simple button control and intuitive menu navigation, users can easily switch between pages and customise data views.
The IS35 runs on the NOS (Navico Operating System) platform, offering a familiar interface for Navico users. It automatically detects available sensors on the network and displays the most relevant information. The gauge is suitable as an engine display via NMEA 2000 gateway or J1939 to NMEA 2000 converter.
Key Features
- 3.5” (88.9 mm) LED-backlit TFT-LCD display
- Resolution: 320 x 240 (H x W)
- Day (white) and night (red) backlighting
- Customisable pages with automatic scrolling (1–10 seconds)
- 5 pre-configured pages: engine monitoring, fuel economy, cruising, steering, depth history
- Displays RPM, fuel flow, fuel economy, speed and more
- Dedicated engine display – monitor up to two engines per gauge
- Fits standard gauge hole
- Rear mount option for flush mount glass dash
- Waterproof rating IPX7
Technical Data
Article 000-13334-001 Display Size 3.5” (88.9 mm) Resolution 320 x 240 px Dimensions (W x H x D) 102 mm x 99.7 mm x 122 mm Weight 0.28 kg Power Consumption 130 mA @ 13.5 V Protection Class IPX7 Platform NOS (Navico Operating System) Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-13334-001) (Barcode: 9420024155578)
-
