The Simrad NSS7 Evo3 is a 7” multifunction display with touch screen and keypad control, including a world basemap and support for GPS, AIS, sonar, WiFi, and Bluetooth. It offers bracket or panel mount installation, IPX6/IPX7 protection, and multiple connectivity options including Ethernet and RCA video inputs. Brand: Simrad, article 000-13237-001, barcode 9420024154076.
- Description
- Ask a Question
-

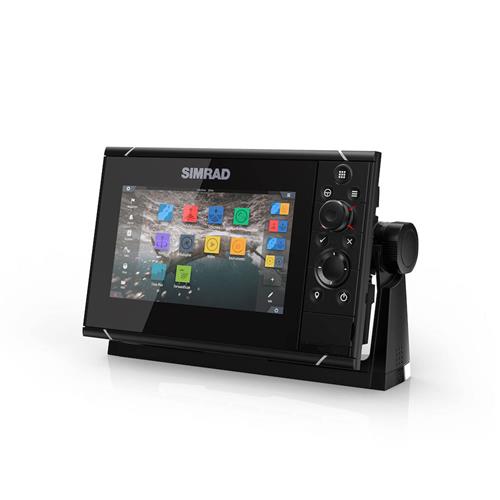

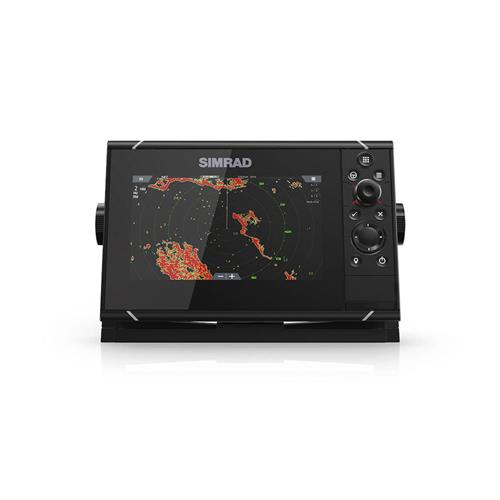

Simrad NSS7 Evo3 With World Basemap
The Simrad NSS7 Evo3 is a 7-inch multifunction display with full touch screen and keypad control. It includes a world base map and offers advanced connectivity for navigation, sonar, AIS and network integration. Designed for marine environments, it supports bracket or panel mount installation and delivers reliable performance with multiple wireless and wired connections.
Key Features
- 7" display with 600 x 1024 px resolution
- Full touch screen (multi-touch) and full keypad control
- World base map included (not detailed)
- Built-in GPS, AIS, Sonar, WiFi and Bluetooth

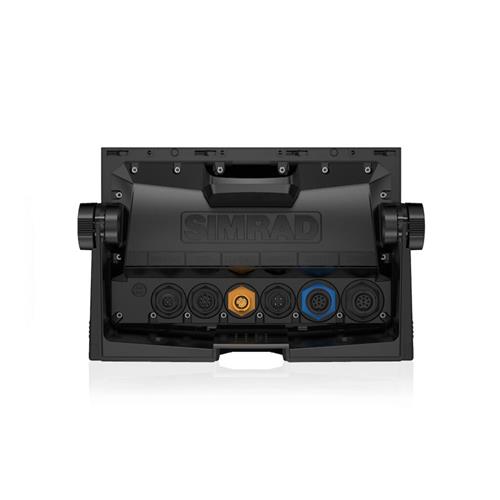

- Ethernet connection: 1 x 5-pins yellow connector x 1 Mbit
- 2 x Composite (RCA connectors) video inputs
- Supports BEP C-Zone and Naviop digital switching
- Bracket mount (included) or panel mount
- Water resistant IPX6 and IPX7
Technical Data
Article 000-13237-001 Series NSS Display Size 7" Resolution 600 x 1024 px Product Width 150 mm Product Height 239 mm Product Depth 90 mm Protection Class IPX6 | IPX7 Voltage 10 / 12 / 24 / 31.2 VDC Maximum Consumption 20 W Connection Type NMEA 2000 Micro-C Port, 1 LEN Ethernet 1 x 5-pins Yellow Connector x 1 Mbit Video Input 2 x Composite (RCA Connectors) Digital Input BEP C-Zone, Naviop Mounting Bracket (Included) or Panel Mount Certification CE; C-Tick; HDMI; EN 60950-1: 2006; EN 60945: 2002; 300 440-2 V1.4.2 Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-13237-001) (Barcode: 9420024154076)
-
