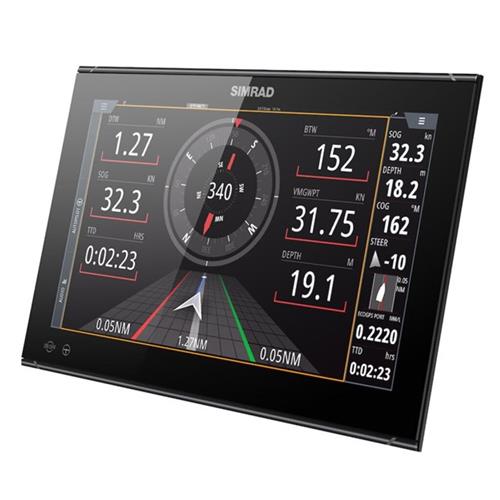

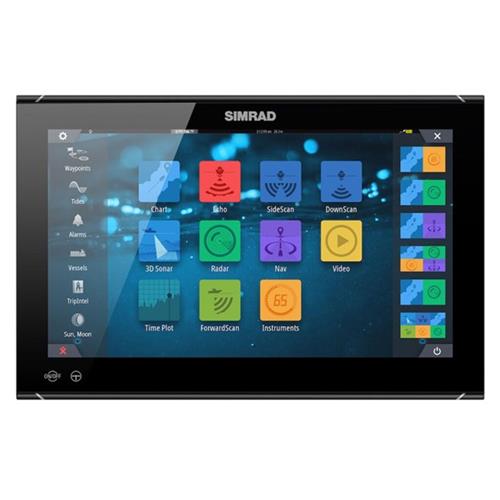

Simrad 16" NSO Evo3S MFD Display

ID 1347241

$ 11,300.05

1-2 weeks delivery time

- +

Add to cart

The Simrad NSO evo3S 16" MFD is a high-performance multifunction display with Full HD 1920 x 1080 resolution and touchscreen control. It supports advanced networking, video integration, digital switching, and includes a world base map. The unit offers multiple Ethernet and video connections, OP40 or OP50 controller support via NMEA 2000, and panel or optional bracket mounting with front IPX6 protection.

Description
Ask a Question

Simrad 16" NSO Evo3S MFD Display

The Simrad NSO evo3S 16" MFD is a high-performance multifunction display with Full HD 1920 x 1080 resolution and touchscreen control. Designed for panel or optional bracket mounting, this system supports advanced networking, video integration and digital switching for professional marine installations.

The display includes a world base map and supports OP40 or OP50 controllers via NMEA 2000. With multiple Ethernet and video connections, it integrates easily with radar, sonar, AIS and onboard control systems.

Key Features

16" Full HD display (1920 x 1080 px)
Touchscreen control
World base map included
3 x 100 Mbit/s Ethernet ports (RJ45)
2 x composite video (BNC)
1 x HDMI input (1080p, HDCP 1.4)
1 x HDMI output (1080p, no HDCP)
Supports OP40 or OP50 controller via NMEA 2000
Naviop and BEP C-Zone digital input support
Panel or optional heavy duty bracket mounting (000-13547-001)
Front IPX6 when panel mounted correctly (rear not waterproof)

Technical Data

Article	000-15047-001
Series	NSO
Display Size	16"
Resolution	1920 x 1080 px
Dimensions (W x H x D)	260 mm x 400.1 mm x 83 mm
Protection Class	IPX6 (Front Only, Panel Mounted)
Voltage	12 / 24 VDC
Connection Type	NMEA 2000 Micro-C Port, 1 LEN
Ethernet	3 x 100 Mbit/s RJ45
Digital Input	Naviop, BEP C-Zone
Certification	CE; C-Tick; HDMI; EN 60950-1:2006; EN 60945:2002; EN 300 440-2; V1.4.1
Sales Unit	1 Piece

Brand: Simrad (Article Code: 000-15047-001) (Barcode: 9420064105014)
