ID
1347239
$ 1,546.05
1-2 weeks delivery time
-
+
The Simrad GO7 XSR with Active Imaging 3-in-1 transducer is a 7” multifunction display with 800 x 480 px touch screen, including an Active Imaging transducer for sonar. It supports GPS, AIS, WiFi, Bluetooth, radar, and Sirius (USA only), with bracket or panel mounting and IPX6/IPX7 protection. Brand: Simrad, article 000-14839-001, barcode 9420024177020.
- Description
- Ask a Question
-

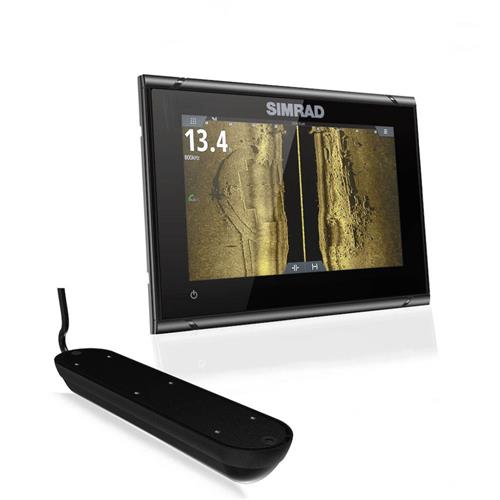

Simrad Chartplotter GO7 XSR With Active Imaging 3-In-1 Transducer
The Simrad GO7 XSR with Active Imaging 3-in-1 transducer is a compact 7” multifunction display designed for navigation and sonar performance. The 800 x 480 px touch screen provides intuitive control, while integrated GPS, AIS, WiFi and Bluetooth ensure full onboard connectivity.
This model includes the Active Imaging 3-in-1 transducer and supports radar and Sirius connectivity (USA only, unless unlocked) via the 5 pin yellow Ethernet connector. It is suitable for bracket or panel mounting and built to withstand marine conditions with IPX6 and IPX7 protection.
Key Features
- 7" display with 800 x 480 px resolution
- Includes Active Imaging 3-in-1 transducer
- Touch screen control
- Supports OP40 or OP50 controller via NMEA 2000
- Ethernet: 1 x 5 pin yellow connector x 1 Mbit
- Radar and Sirius (USA only) connectivity (unless unlocked)
- Supports Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+), NV Digital (Raster US Charts)
- Built-in GPS, AIS, WiFi and Bluetooth
- BEP C-Zone digital input support
- Bracket or panel mounting
- Water resistant IPX6 | IPX7
Technical Data
Article 000-14839-001 Series GO Display Size 7" Resolution 800 x 480 px Product Width 197 mm Product Height 141 mm Product Depth 82.7 mm Protection Class IPX6 | IPX7 Voltage 10 – 17 VDC Maximum Consumption 20 W Connection Type NMEA 2000 Micro-C Port, 1 LEN Digital Input BEP C-Zone Sonar Yes Certification CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1 Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-14839-001) (Barcode: 9420024177020)
-
