ID
1347244
$ 1,953.98
1-2 weeks delivery time
-
+
The Simrad NSX 3007 is a 7" multifunction display without a transducer, offering a world base map, multi-touch 1024 x 600 screen, GPS, AIS, WiFi, Bluetooth, and support for C-MAP charts. It supports bracket, panel, or flush mounting and is water resistant with IPX6 and IPX7 protection.
- Description
- Ask a Question
-

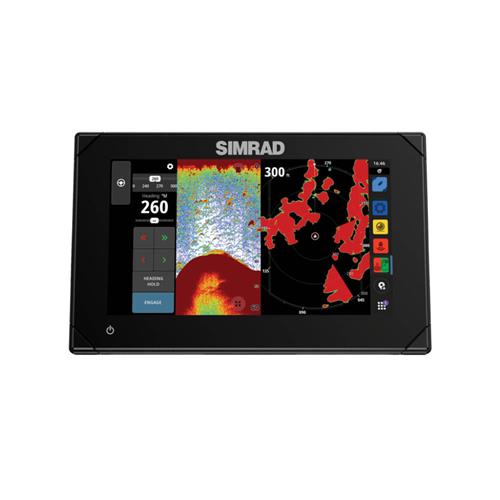

Simrad Yachting NSX 3007 No Transducer ROW
The Simrad NSX 3007 is a 7" multifunction display designed for intuitive navigation and onboard integration. This version is supplied without transducer and includes a world base map (not for navigation). It supports C-MAP Tile (CMT) Discover X and C-MAP Tile (CMT) Reveal X charts.
The multi-touch screen with 1024 x 600 resolution ensures clear viewing, while built-in GPS, AIS, WiFi and Bluetooth provide full connectivity. The unit supports bracket, panel or flush mounting and is built for marine environments with IPX6 and IPX7 protection.
Key Features
- 7" display with 1024 x 600 px resolution
- Multi-touch screen
- World base map included (not for navigation)
- Supports C-MAP Tile Discover X and Reveal X

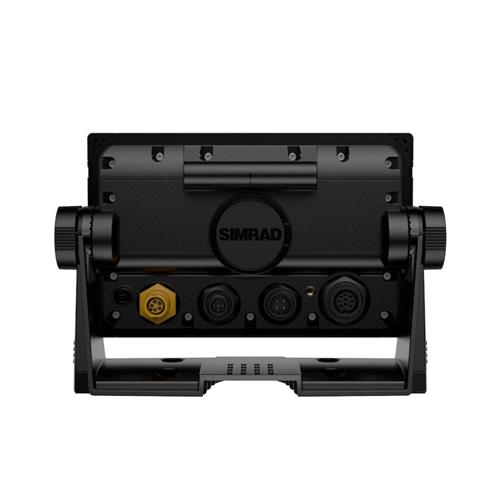

- 1 Ethernet port (5-pin connector)
- IP camera support
- Built-in GPS, AIS, WiFi and Bluetooth
- CZone and Simrad DDS digital input support
- Bracket (included), panel or flush mount
- Water resistant IPX6 | IPX7
Technical Data
Article 000-15215-001 Series NSX Display Size 7" Resolution 1024 x 600 px Dimensions (W x H x D) 195 mm x 123 mm x 79.5 mm Protection Class IPX6 | IPX7 Voltage 12 VDC Maximum Consumption 11.5 W Connection Type NMEA 2000 Micro-C Port, 1 LEN Ethernet 1 x 5-pin Connector Digital Input CZone, Simrad DDS Sonar Okay Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-15215-001) (Barcode: 9420064110025)
-
