The Simrad NSS12 Evo3S is a 12" multifunction display with an 800 x 1280 multi-touch screen and full keypad control. It includes a world base map, supports multiple chart formats, integrates AIS, GPS, WiFi, Bluetooth, sonar, and digital inputs, with bracket or panel mounting and IPX6/IPX7 water resistance.
- Description
- Ask a Question
-

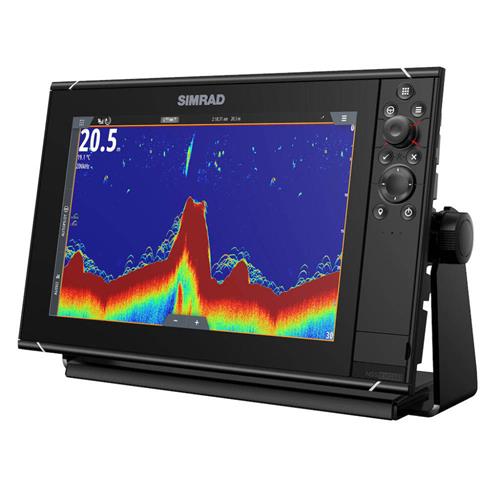

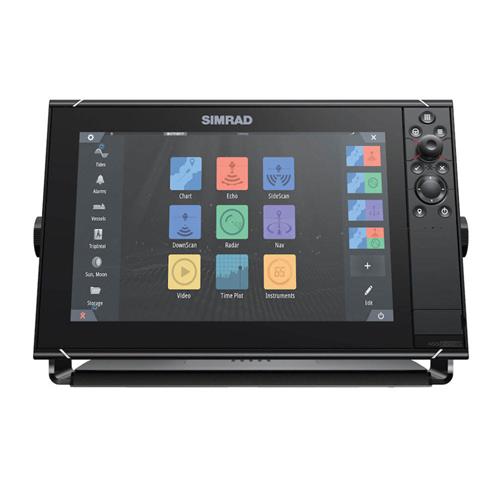

Simrad NSS12 Evo3S With World Basemap
The Simrad NSS12 Evo3S is a 12" multifunction display with world base map included (not for navigation). The 800 x 1280 px display combines multi-touch screen and full keypad control for precise and flexible operation.
This unit supports Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+) and NV Digital (Raster US Charts). It integrates AIS, GPS, WiFi, Bluetooth and sonar functionality, with bracket (included) or panel mounting options.
Key Features
- 12" display with 800 x 1280 px resolution
- World base map included (not for navigation)
- Supports Insight, Navionics, C-MAP and NV Digital charts
- Full multi-touch screen and keypad control
- OP50 remote control support
- 2 x 5 pin yellow Ethernet connectors (10/100 Mbit)
- 2 x composite video inputs (RCA)
- BEP C-Zone and Naviop digital input support
- Built-in AIS, GPS, WiFi and Bluetooth
- Bracket (included) or panel mount
- Water resistant IPX6 | IPX7
Technical Data
Article 000-15406-002 Series NSS Display Size 12" Resolution 800 x 1280 px Dimensions (W x H x D) 352 mm x 225 mm x 98 mm Protection Class IPX6 | IPX7 Voltage 10 – 31.2 VDC Maximum Consumption 28 W Connection Type NMEA 2000 Micro-C Port, 1 LEN Ethernet 2 x 5 pin Yellow Connector (10/100 Mbit) Video Input 2 x Composite (RCA) Digital Input BEP C-Zone, Naviop Certification CE; C-Tick; EN 60950-1:2006; EN 60945:2002; EN 300 440-2; V1.4.2 Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-15406-002) (Barcode: 9420064130184)
-
