The Simrad GO9 XSE with Active Imaging 3-in-1 transducer is a 9” multifunction display with 800 x 480 px touchscreen, 1200 nits brightness, integrated GPS, AIS, WiFi, Bluetooth, CHIRP sonar, StructureScan® HD, ForwardScan™ support, radar compatibility, and CZone® digital switching, with IPX6/IPX7 protection and bracket or panel mounting. Brand: Simrad, article 000-14841-001.
- Description
- Ask a Question
-

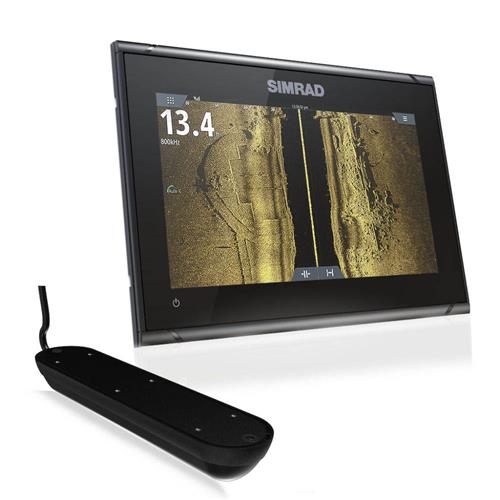

Simrad Chartplotter GO9 XSE With Active Imaging 3-In-1 Transducer
The Simrad GO9 XSE with Active Imaging 3-in-1 transducer is a 9” multifunction display with bright LED backlight and simple tablet-style touchscreen control. It offers advanced navigation, radar compatibility and sonar support, making it suitable for a wide range of motorboats.
This display supports C-MAP charts and other compatible chart providers. Built-in WiFi and Bluetooth allow viewing and control from a compatible smartphone or tablet. The unit integrates CHIRP sonar, StructureScan® HD imaging and ForwardScan™ sonar with a compatible transducer, and supports radar systems including Broadband 3G™, 4G™ and Halo™ (GO7 and above).
Key Features
- 9" widescreen display with white LED backlight
- Resolution 800 x 480 px
- Screen brightness 1200 nits
- Tablet-style touchscreen control
- Includes Active Imaging 3-in-1 transducer
- Compatible with Broadband 3G™, 4G™ and Halo™ radar
- Supports C-MAP and other chart formats
- Built-in CHIRP sonar, StructureScan® HD and ForwardScan™ support
- SteadySteer™ support for NAC-2 and NAC-3 autopilot computers with RPU drive pumps
- CZone® digital switching via NMEA 2000
- Mercury® Smart Tow® enabled
- Supports Honda ECO mode engine information
- PPI and AIS enhanced interface (GO7 and above)
- Internal WiFi and Bluetooth
- Bracket or panel mounting
- Waterproof rating IPX6 and IPX7
Technical Data
Product Code 000-14841-001 Display Size 9" Resolution 800 x 480 px Brightness 1200 nits Viewing Angles 80° Top/Bottom, 80° Left/Right Dimensions (W x H x D) 243 mm x 171 mm x 83 mm Weight 1.315 kg Mounting Type Bracket or Panel Supply Voltage 10 – 17 V DC Power Consumption (Typical) 12 W Power Consumption (Max) 20 W Recommended Fuse 3 A Operating Temperature -15°C to +55°C Storage Temperature -20°C to +60°C Waterproof Rating IPX6 and IPX7 Ethernet 1 x 5 pin yellow connector x 1 Mbit WiFi Internal Bluetooth Internal Certification CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1 Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-14841-001)
-
