The Simrad NSS9 Evo3S is a 9" multifunction display with a world base map, 1280 x 720 full multi-touch screen, and keypad control. It integrates sonar, AIS, GPS, WiFi, Bluetooth, and supports C-MAP charts, OP50 remote, and digital inputs with bracket or panel mounting and IPX6/IPX7 protection.
- Description
- Ask a Question
-

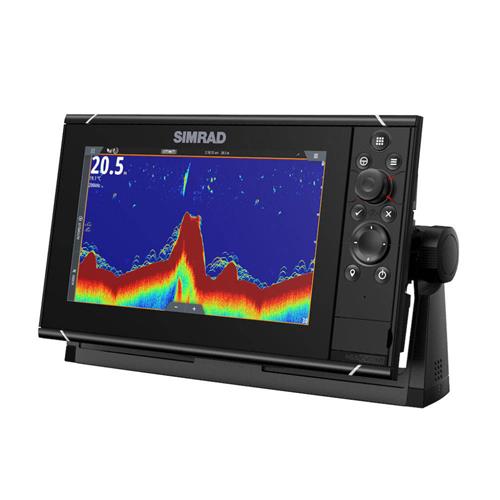

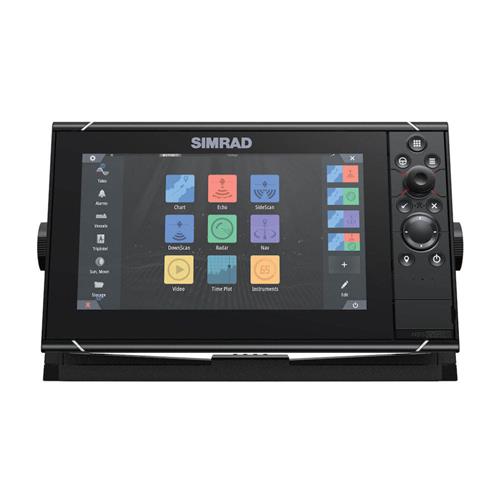

Simrad NSS9 Evo3S With World Basemap
The Simrad NSS9 Evo3S is a 9" multifunction display with world base map included (not for navigation). It features a 1280 x 720 px display with full multi-touch screen and keypad control, offering intuitive operation and advanced marine integration.
The unit supports C-MAP Tile (CMT) Discover X and Reveal X charts and integrates sonar, AIS, GPS, WiFi and Bluetooth. With bracket (included) or panel mounting options and IPX6/IPX7 protection, it is built for demanding marine environments.
Key Features
- 9" display with 1280 x 720 px resolution
- World base map included (not for navigation)
- Supports C-MAP Tile Discover X and Reveal X
- Full multi-touch screen and keypad control
- OP50 remote control support
- 1 x 5 pin yellow Ethernet connector (10/100 Mbit)
- 2 x composite video inputs (RCA)
- BEP C-Zone and Naviop digital input support
- Built-in AIS, GPS, WiFi and Bluetooth
- Bracket (included) or panel mount
- Water resistant IPX6 | IPX7
Technical Data
Article 000-15405-001 Series NSS Display Size 9" Resolution 1280 x 720 px Dimensions (W x H x D) 287 mm x 166 mm x 90 mm Protection Class IPX6 | IPX7 Voltage 10 – 31.2 VDC Maximum Consumption 21 W Connection Type NMEA 2000 Micro-C Port, 1 LEN Ethernet 1 x 5 pin Yellow Connector (10/100 Mbit) Video Input 2 x Composite (RCA) Digital Input BEP C-Zone, Naviop Certification CE; C-Tick; HDMI; EN 60950-1:2006; EN 60945:2002; EN 300 440-2; V1.4.2 Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-15405-001) (Barcode: 9420064113590)
-
