The Simrad NSX 3012 is a 12" multifunction display without a transducer, with a 1280 x 800 multi-touch screen, GPS, AIS, WiFi, Bluetooth, and digital input support for CZone and Simrad DDS. It can be installed via bracket, panel, or flush mounting and features IPX6/IPX7 water resistance.
- Description
- Ask a Question
-
Simrad Yachting NSX 3012 No Transducer ROW

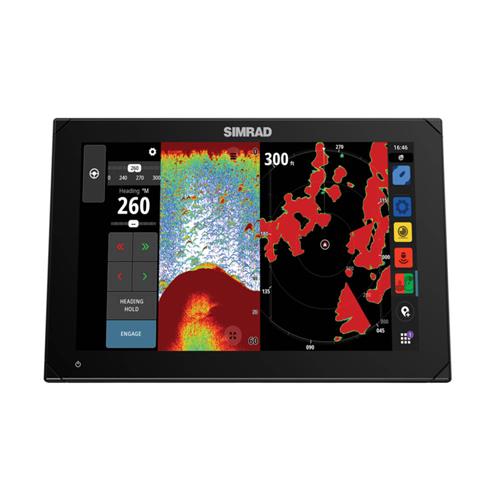

The Simrad NSX 3012 is a 12" multifunction display engineered for advanced navigation and onboard control. Supplied without transducer, it includes a world base map (not for navigation) and supports C-MAP Tile (CMT) Discover X and Reveal X charts.
The 1280 x 800 px multi-touch display ensures clear viewing and smooth operation. Integrated GPS, AIS, WiFi and Bluetooth provide reliable connectivity, while support for CZone and Simrad DDS enables digital switching integration. The unit can be installed using bracket (included), panel or flush mounting.
Key Features
- 12" display with 1280 x 800 px resolution
- Multi-touch screen
- World base map included (not for navigation)
- Supports C-MAP Tile Discover X and Reveal X
- 1 Ethernet port (5-pin connector)
- IP camera support
- Built-in GPS, AIS, WiFi and Bluetooth
- CZone and Simrad DDS digital input support

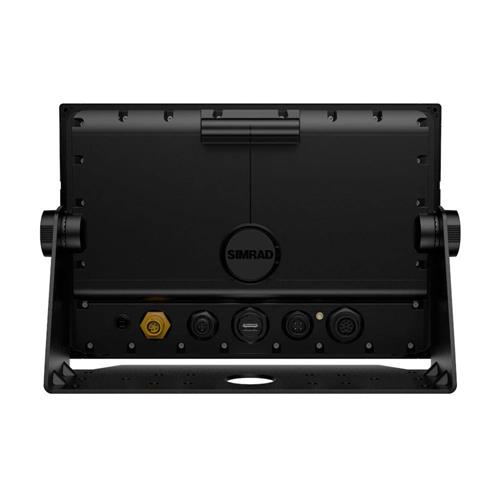

- Bracket (included), panel or flush mount
- Water resistant IPX6 | IPX7
Technical Data
Article 000-15223-001 Series NSX Display Size 12" Resolution 1280 x 800 px Dimensions (W x H x D) 309.5 mm x 208.4 mm x 86 mm Protection Class IPX6 | IPX7 Voltage 12 VDC Maximum Consumption 29.7 W Connection Type NMEA 2000 Micro-C Port, 1 LEN Ethernet 1 x 5-pin Connector Digital Input Simrad DDS, CZone Sonar Yes Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-15223-001) (Barcode: 9420064110100)
-
