ID
1347243
$ 19,760.21
1-2 weeks delivery time
-
+
The Simrad NSO evo3S 24" System Pack delivers a 24" multifunction display with world base map, Ethernet and video integration, digital switching support, and integration with radar and AIS. The front panel is IPX6 rated, with panel or optional bracket mounting, and includes built-in AIS, Bluetooth, and WiFi.
- Description
- Ask a Question
-

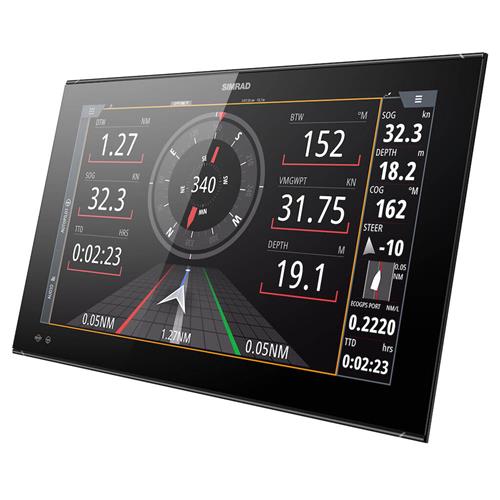

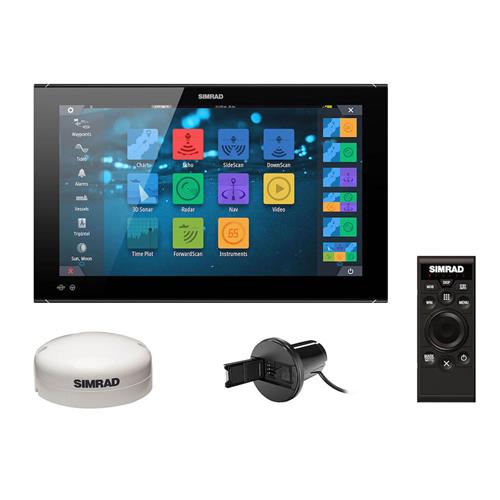

Simrad NSO Evo3S 24" System Pack
The Simrad NSO evo3S 24" System Pack is a large-format multifunction display designed for advanced marine installations. With a 24" screen and world base map included, it delivers powerful networking, video integration and digital switching control for professional helm systems.
The system supports panel or optional heavy duty bracket mounting and integrates with radar, AIS and onboard control systems. The front panel is IPX6 rated when correctly panel mounted, while the rear is not waterproof.
Key Features
- 24" display
- World base map included
- 3 x 100 Mbit/s Ethernet ports (RJ45)
- 2 x composite video (BNC)
- 1 x HDMI input (1080p, HDCP 1.4, HDMI-A)
- 1 x HDMI output (1080p, no HDCP, HDMI-A)
- Naviop and BEP C-Zone digital input support
- Panel or optional heavy duty bracket mounting (000-13547-001)
- Front IPX6 when panel mounted correctly
- AIS, Bluetooth and WiFi support
Technical Data
Article 000-15128-001 Series NSO Display Size 24" Dimensions (W x H x D) 386 mm x 625.1 mm x 83 mm Protection Class IPX6 (Front Only, Panel Mounted) Voltage 12 / 24 VDC Ethernet 3 x 100 Mbit/s RJ45 Digital Input Naviop, BEP C-Zone AIS Okay Bluetooth Okay WiFi Okay Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-15128-001) (Barcode: 9420064108466)
-
