ID
1347245
$ 2,699.06
1-2 weeks delivery time
-
+
The Simrad NSX 3009 is a 9" multifunction display without a transducer, featuring a 1280 x 720 multi-touch screen, built-in GPS, AIS, WiFi, Bluetooth, and support for C-MAP charts. It can be mounted with bracket, panel, or flush installation and offers IPX6 and IPX7 water resistance.
- Description
- Ask a Question
-

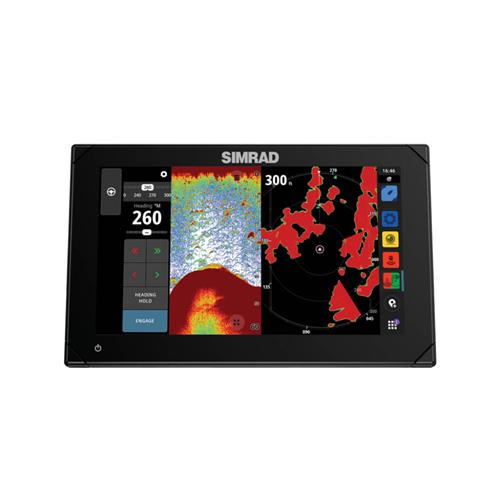

Simrad Yachting NSX 3009 No Transducer ROW
The Simrad NSX 3009 is a 9" multifunction display designed for modern navigation and onboard integration. This version is supplied without transducer and includes a world base map (not for navigation). It supports C-MAP Tile (CMT) Discover X and C-MAP Tile (CMT) Reveal X charts.
The 1280 x 720 px multi-touch screen provides sharp visuals and intuitive control. With built-in GPS, AIS, WiFi and Bluetooth, the NSX 3009 offers full connectivity. It supports bracket (included), panel or flush mounting and is built for marine use with IPX6 and IPX7 protection.
Key Features
- 9" display with 1280 x 720 px resolution
- Multi-touch screen
- World base map included (not for navigation)
- Supports C-MAP Tile Discover X and Reveal X

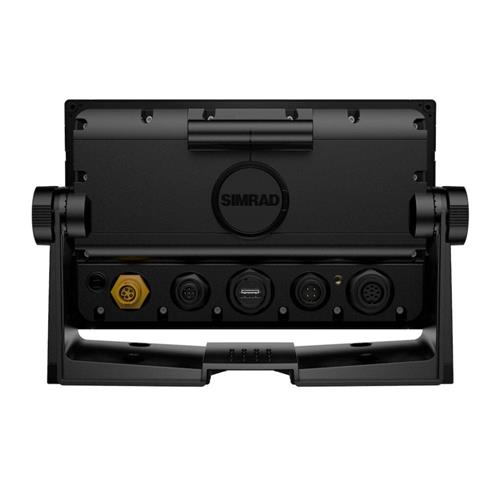

- 1 Ethernet port (5-pin connector)
- IP camera support
- Built-in GPS, AIS, WiFi and Bluetooth
- CZone and Simrad DDS digital input support
- Bracket (included), panel or flush mount
- Water resistant IPX6 | IPX7
Technical Data
Article 000-15219-001 Series NSX Display Size 9" Resolution 1280 x 720 px Dimensions (W x H x D) 239 mm x 148.5 mm x 80.6 mm Protection Class IPX6 | IPX7 Voltage 12 VDC Maximum Consumption 18.8 W Connection Type NMEA 2000 Micro-C Port, 1 LEN Ethernet 1 x 5-pin Connector Digital Input CZone, Simrad DDS Sonar Yes Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-15219-001) (Barcode: 9420064110063)
-
