BEP 80-511-0004-00 – 12V Push-Button Switch, Momentary (On)/Off, Blue LED Ring, IP67, 5A

ID 823907

$ 49.52

1-2 weeks delivery time

- +

Add to cart

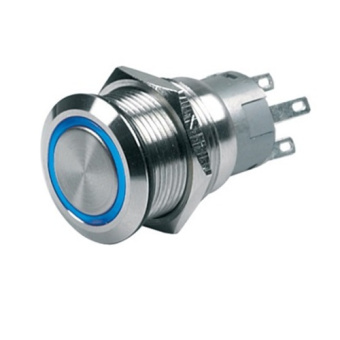

The BEP 80-511-0004-00 is a 12V panel-mount push-button switch with momentary (On)/Off operation and an integrated blue LED ring that can be wired for power indication or backlighting. Built with stainless steel components and silver alloy contacts, it is rated up to 5A and provides IP67 environmental protection, making it suitable for marine dashboards, switch panels, and lighting or accessory control circuits.

Description
Ask a Question

BEP 80-511-0004-00 – 12V Push-Button Switch, Momentary (On)/Off, Blue LED Ring, IP67, 5A

The BEP 80-511-0004-00 is a 12V push-button switch designed for through-panel mounting and features a momentary (On)/Off function with a blue LED ring. It is a practical solution for marine switch panels, lighting controls, and dashboard installations where a compact, sealed, and reliable control switch is required.

Key Features

Operating voltage: 12V
Function: Momentary (On)/Off
LED ring color: Blue
Maximum switch current rating: 5A
Environmental protection (switch): IP67
Construction: Stainless steel components with silver alloy contacts

Dimensions (from product drawing)

Body length: 37 mm (1.4")
Mounting depth max: 10 mm (0.4") max
Panel cutout / diameter reference: 22 mm (0.9")
Face / nut diameter reference: 25 mm (1.0")
Terminal side length reference: 19 mm (0.7")

Specifications

Part Number	80-511-0004-00
Type	Push-Button Switch with LED Ring
Voltage	12V
Switch Function	Momentary (On)/Off
LED Ring	Blue
Max Current Rating	5A
Ingress Protection	IP67 (switch)

Typical Applications

Marine dash and helm panels
Accessory switching with momentary control
Lighting and control functions on 12V systems
