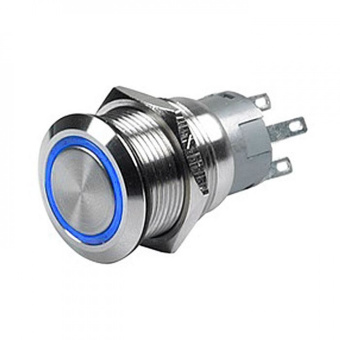

BEP 80-511-0007-00 – 24V Push-Button Switch, Latching On/Off, Blue LED Ring, IP67, 5A

ID 823910

$ 49.52

1-2 weeks delivery time

- +

Add to cart

The BEP 80-511-0007-00 is a 24V DC panel-mount push-button switch with latching On/Off operation and an integrated blue LED ring for power indication or backlighting. Rated up to 5A and designed with stainless steel components and silver alloy contacts, it provides IP67 environmental protection for dependable performance on marine dashboards, lighting panels, and switch installations.

Description
Ask a Question

BEP 80-511-0007-00 – 24V Push-Button Switch, Latching On/Off, Blue LED Ring, IP67, 5A

The BEP 80-511-0007-00 is a compact 24V push-button switch designed for through-panel mounting in dashboards, lighting panels, and electrical switch panels. It features latching On/Off operation and a visible blue LED ring, which can be wired to indicate system power or provide switch backlighting.

Key Features

Operating voltage: 24V
Function: Latching On/Off
LED ring color: Blue
Maximum switch current rating: 5A
Environmental protection (switch): IP67
Construction: Stainless steel components with silver alloy contacts

Dimensions (from product drawing)

Body length: 37 mm (1.4")
Mounting depth max: 10 mm (0.4") max
Panel cutout / diameter reference: 22 mm (0.9")
Face / nut diameter reference: 25 mm (1.0")
Terminal side length reference: 19 mm (0.7")

Specifications

Part Number	80-511-0007-00
Type	Push-Button Switch with LED Ring
Voltage	24V
Switch Function	Latching On/Off
LED Ring	Blue
Max Current Rating	5A
Ingress Protection	IP67 (switch)

Typical Applications

Marine dashboards and control stations (24V systems)
Switch panels for lighting or accessory circuits
Panels requiring clear blue LED ring illumination
