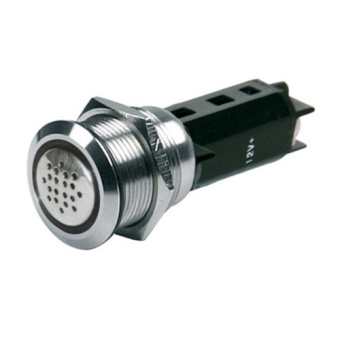

BEP 80-511-0009-00 – 12V Panel Mount Buzzer with Red LED Ring, 80 dB, IP50

ID 823912

$ 51.65

1-2 weeks delivery time

- +

Add to cart

The BEP 80-511-0009-00 is a 12V DC through-panel mount buzzer with an integrated red LED ring designed for alarm and warning indication on dash panels and switch panels. It delivers 80 dB sound intensity, features IP50 environmental protection for the buzzer unit, and the warning buzzer ring flashes red on alarm. Built with stainless steel components and silver alloy contacts, it is a compact solution for clear audible and visual alerts in marine electrical systems.

Description
Ask a Question

BEP 80-511-0009-00 – 12V Panel Mount Buzzer with Red LED Ring, 80 dB, IP50

The BEP 80-511-0009-00 is a compact 12V DC warning buzzer designed for through-panel mounting in dashboards, lighting panels, and switch panels. It combines an audible alarm with a highly visible red LED ring for clear warning indication.

Key Features

Operating voltage: 12V
Product type: Buzzer unit with LED ring
LED ring color: Red
Buzzer sound intensity: 80 dB
Environmental protection (buzzer): IP50
Alarm indication: Warning buzzer flashes red on alarm
Construction: Stainless steel components with silver alloy contacts

Dimensions (from product drawing)

Body length: 54 mm (2.1")
Mounting depth max: 10 mm (0.4") max
Panel cutout / diameter reference: 22 mm (0.9")
Face / nut diameter reference: 25 mm (1.0")
Terminal side length reference: 19 mm (0.7")

Specifications

Part Number	80-511-0009-00
Voltage	12V DC
Device	Buzzer with LED Ring
LED Ring Color	Red
Sound Output	80 dB
Ingress Protection	IP50 (buzzer)

Typical Applications

Audible alarm indication on marine dashboards
Warning alert panels for electrical systems
Status and fault notification systems requiring sound + red visual indication
