ID
823906
$ 49.52
1-2 weeks delivery time
-
+
The BEP 80-511-0003-00 is a 12V panel-mount push-button switch with latching On/Off operation and a blue LED ring that can be wired for power indication or backlighting. Built with stainless steel components and silver alloy contacts, this switch is rated up to 5A and provides IP67 environmental protection, making it a reliable choice for marine switch panels, lighting circuits, and dashboard installations.
- Description
- Ask a Question
-

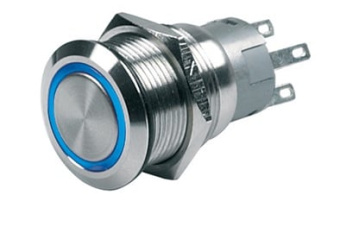

BEP 80-511-0003-00 – 12V Push-Button Switch, Latching On/Off, Blue LED Ring, IP67, 5A
The BEP 80-511-0003-00 is a 12V push-button switch with a latching On/Off function and an integrated blue LED ring. Designed for through-panel mounting, it is ideal for lighting control, switch panels, and dash applications where durability and visibility are required.
Key Features
- Operating voltage: 12V
- Function: Latching On/Off
- LED ring color: Blue
- Maximum switch current rating: 5A
- Environmental protection (switch): IP67
- Construction: Stainless steel components with silver alloy contacts
Dimensions (from product drawing)
- Body length: 37 mm (1.4")
- Mounting depth max: 10 mm (0.4") max
- Panel cutout / diameter reference: 22 mm (0.9")
- Face / nut diameter reference: 25 mm (1.0")
- Terminal side length reference: 19 mm (0.7")
Specifications
Part Number 80-511-0003-00 Type Push-Button Switch with LED Ring Voltage 12V Switch Function Latching On/Off LED Ring Blue Max Current Rating 5A Ingress Protection IP67 (switch)
Typical Applications
- Marine dash and helm panels
- Lighting and accessory switching
- 12V control panels for onboard systems
-
