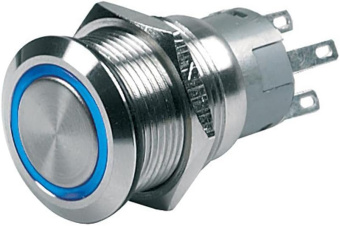

BEP 80-511-0008-00 – 24V Push-Button Switch, Momentary (On)/Off, Blue LED Ring, IP67, 5A

ID 823911

$ 49.52

1-2 weeks delivery time

- +

Add to cart

The BEP 80-511-0008-00 is a 24V DC through-panel push-button switch with momentary (On)/Off operation and an integrated blue LED ring that can be wired for power indication or backlighting. Built with stainless steel components and silver alloy contacts, it is rated up to 5A and provides IP67 environmental protection, making it suitable for marine dash panels, lighting controls, and switch installations.

Description
Ask a Question

BEP 80-511-0008-00 – 24V Push-Button Switch, Momentary (On)/Off, Blue LED Ring, IP67, 5A

The BEP 80-511-0008-00 is a compact 24V push-button switch designed for through-panel mounting in dashboards, lighting panels, and switch panels. It uses a momentary (On)/Off switching function and includes a blue LED ring, which can be wired to display power to the system or provide switch backlighting.

Key Features

Operating voltage: 24V
Function: Momentary (On)/Off
LED ring color: Blue
Maximum switch current rating: 5A
Environmental protection (switch): IP67
Construction: Stainless steel components with silver alloy contacts

Dimensions (from product drawing)

Body length: 37 mm (1.4")
Mounting depth max: 10 mm (0.4") max
Panel cutout / diameter reference: 22 mm (0.9")
Face / nut diameter reference: 25 mm (1.0")
Terminal side length reference: 19 mm (0.7")

Specifications

Part Number	80-511-0008-00
Type	Push-Button Switch with LED Ring
Voltage	24V
Switch Function	Momentary (On)/Off
LED Ring	Blue
Max Current Rating	5A
Ingress Protection	IP67 (switch)

Typical Applications

Momentary control circuits on 24V systems
Marine dashboards and switch panels
Lighting and accessory switching where blue LED ring indication is required
