ID
823909
$ 49.52
1-2 weeks delivery time
-
+
The BEP 80-511-0006-00 is a 24V DC panel-mount push-button switch with momentary (On)/Off operation and an integrated red LED ring for clear status indication or backlighting. Rated up to 5A and built with stainless steel components and silver alloy contacts, it offers IP67 environmental protection for reliable use on marine dashboards, switch panels, and control stations.
- Description
- Ask a Question
-

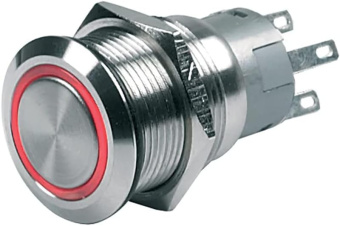

BEP 80-511-0006-00 – 24V Push-Button Switch, Momentary (On)/Off, Red LED Ring, IP67, 5A
The BEP 80-511-0006-00 is a compact 24V push-button switch designed for through-panel mounting in switch panels and dashboards. It features momentary (On)/Off switching operation and a visible red LED ring, which can be wired to either display system power or provide switch backlighting.
Key Features
- Operating voltage: 24V
- Function: Momentary (On)/Off
- LED ring color: Red
- Maximum switch current rating: 5A
- Environmental protection (switch): IP67
- Construction: Stainless steel components with silver alloy contacts
Dimensions (from product drawing)
- Body length: 37 mm (1.4")
- Mounting depth max: 10 mm (0.4") max
- Panel cutout / diameter reference: 22 mm (0.9")
- Face / nut diameter reference: 25 mm (1.0")
- Terminal side length reference: 19 mm (0.7")
Specifications
Part Number 80-511-0006-00 Type Push-Button Switch with LED Ring Voltage 24V Switch Function Momentary (On)/Off LED Ring Red Max Current Rating 5A Ingress Protection IP67 (switch)
Typical Applications
- Marine control panels and dashboards (24V systems)
- Momentary control functions for onboard accessories
- Switch panels where a visible red LED ring is required
-
