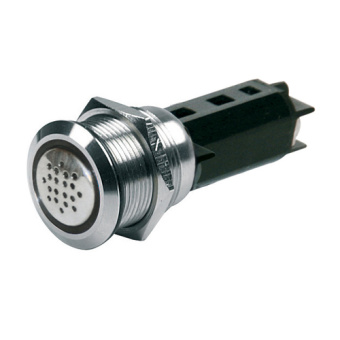

BEP 80-511-0010-00 – 24V Panel Mount Buzzer with Red LED Ring, 80 dB, IP50

ID 823913

$ 51.65

1-2 weeks delivery time

- +

Add to cart

The BEP 80-511-0010-00 is a 24V DC panel mount warning buzzer with an integrated red LED ring, designed for dash panels and switch panels where both audible and visual alarm indication is required. It delivers 80 dB sound intensity, features IP50 environmental protection for the buzzer unit, and the warning buzzer ring flashes red on alarm. Built with stainless steel components and silver alloy contacts, it is a durable solution for marine electrical alarm and notification systems.

Description
Ask a Question

BEP 80-511-0010-00 – 24V Panel Mount Buzzer with Red LED Ring, 80 dB, IP50

The BEP 80-511-0010-00 is a compact 24V DC warning buzzer designed for through-panel mounting in dashboards, lighting panels, and switch panels. It combines an audible alert with a highly visible red LED ring to provide clear warning indication in marine electrical systems.

Key Features

Operating voltage: 24V
Product type: Buzzer unit with LED ring
LED ring color: Red
Buzzer sound intensity: 80 dB
Environmental protection (buzzer): IP50
Alarm indication: Warning buzzer flashes red on alarm
Construction: Stainless steel components with silver alloy contacts

Dimensions (from product drawing)

Body length: 54 mm (2.1")
Mounting depth max: 10 mm (0.4") max
Panel cutout / diameter reference: 22 mm (0.9")
Face / nut diameter reference: 25 mm (1.0")
Terminal side length reference: 19 mm (0.7")

Specifications

Part Number	80-511-0010-00
Voltage	24V DC
Device	Buzzer with LED Ring
LED Ring Color	Red
Sound Output	80 dB
Ingress Protection	IP50 (buzzer)

Typical Applications

Audible warning indication on marine dashboards
Alarm notification panels for onboard electrical systems
Status and fault alert circuits requiring sound + red visual indication
