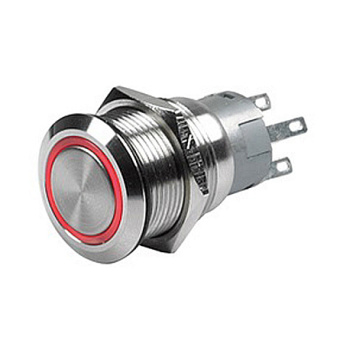

BEP 80-511-0005-00 – 24V Push-Button Switch, Latching On/Off, Red LED Ring, IP67, 5A

ID 823908

$ 49.52

1-2 weeks delivery time

- +

Add to cart

The BEP 80-511-0005-00 is a 24V panel-mount push-button switch with latching On/Off operation and an integrated red LED ring that can be wired either as a power indicator or for switch backlighting. Built with stainless steel components and silver alloy contacts, it is rated up to 5A and provides IP67 environmental protection, making it suitable for marine switch panels, lighting circuits, and dashboard installations.

Description
Ask a Question

BEP 80-511-0005-00 – 24V Push-Button Switch, Latching On/Off, Red LED Ring, IP67, 5A

The BEP 80-511-0005-00 is a compact 24V push-button switch designed for through-panel mounting. It features a latching On/Off switching action and an integrated red LED ring, providing clear visibility for control panels and dashboards. This switch is built to last with stainless steel components and silver alloy contacts, making it a reliable option for marine and other demanding environments.

Key Features

Operating voltage: 24V
Function: Latching On/Off
LED ring color: Red
Maximum switch current rating: 5A
Environmental protection (switch): IP67
Construction: Stainless steel components with silver alloy contacts

Dimensions (from product drawing)

Body length: 37 mm (1.4")
Mounting depth max: 10 mm (0.4") max
Panel cutout / diameter reference: 22 mm (0.9")
Face / nut diameter reference: 25 mm (1.0")
Terminal side length reference: 19 mm (0.7")

Specifications

Part Number	80-511-0005-00
Type	Push-Button Switch with LED Ring
Voltage	24V
Switch Function	Latching On/Off
LED Ring	Red
Max Current Rating	5A
Ingress Protection	IP67 (switch)

Typical Applications

Marine switch panels and helm stations
24V lighting and accessory control
Dashboard and console installations
