ID
823905
$ 49.52
1-2 weeks delivery time
-
+
The BEP 80-511-0002-00 is a 12V panel-mount push-button switch with momentary (On)/Off operation and a red LED ring for status indication or backlighting. The switch is rated at 5A maximum current and features IP67 environmental protection, making it suitable for marine switch panels, lighting control, and dashboard applications where moisture resistance is required.
- Description
- Ask a Question
-

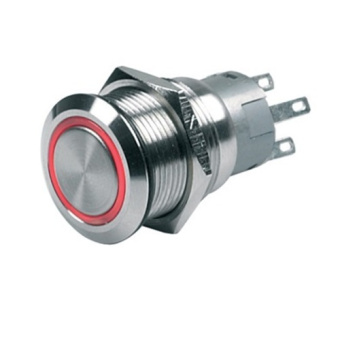

BEP 80-511-0002-00 – 12V Push-Button Switch, Momentary (On)/Off, Red LED Ring, IP67, 5A
The BEP 80-511-0002-00 is a 12V push-button switch with a momentary (On)/Off function and an integrated red LED ring. Designed for through-panel mounting, it is suitable for lighting, switch, and dash panels where compact, durable control is required.
Key Features
- Operating voltage: 12V
- Function: Momentary (On)/Off
- LED ring color: Red
- Maximum switch current: 5A
- Environmental protection (switch): IP67
Dimensions (from product drawing)
- Body length: 37 mm (1.4")
- Mounting depth max: 10 mm (0.4") max
- Panel cutout / diameter reference: 22 mm (0.9")
- Face / nut diameter reference: 25 mm (1.0")
- Terminal side length reference: 19 mm (0.7")
Specifications
Part Number 80-511-0002-00 Type Push-Button Switch with LED Ring Voltage 12V Switch Function Momentary (On)/Off LED Ring Red Max Current Rating 5A Ingress Protection IP67 (switch)
Typical Applications
- Marine dash and helm panels
- Lighting control circuits
- Switch panels and accessory controls
-
