MG Duff ZSA Zinc Spherical Propeller Shaft Anodes

ID 1398979

$ 50.83

1-2 weeks delivery time

Shaft Diameter:

1 1/2"
2"
2 1/4"

The MG Duff ZSA Zinc Spherical Anodes are designed to provide sacrificial corrosion protection for marine propeller shafts. Manufactured from zinc, the range includes three models for shaft diameters of 38 mm (1 1/2"), 51 mm (2") and 57 mm (2 1/4"). The anodes feature rounded bodies with external diameters of 70, 91 and 108 mm and corresponding lengths of 63, 73 and 95 mm. Available models include ZSA150, ZSA200 and ZSA225. Each anode is supplied individually. Select the appropriate model according to the shaft diameter and available installation space.

Description
Ask a Question

MG Duff ZSA Zinc Spherical Propeller Shaft Anodes – Ø38–57 mm Shaft

The MG Duff ZSA Zinc Spherical Anodes are sacrificial anodes designed to protect marine propeller shafts against galvanic corrosion. Manufactured from zinc, these anodes feature rounded bodies and are available in three sizes to accommodate different shaft diameters.

The range includes ZSA150 for 38 mm (1 1/2") shafts, ZSA200 for 51 mm (2") shafts and ZSA225 for 57 mm (2 1/4") shafts. The models differ in their shaft compatibility, external body diameter and overall length.

Key Features

Brand: MG Duff
Product Series: ZSA
Product Type: Sacrificial propeller shaft anode
Material: Zinc
Shape: Spherical / rounded
Application: Marine propeller shaft corrosion protection
Available Shaft Diameters: 38, 51 and 57 mm
Imperial Shaft Sizes: 1 1/2", 2" and 2 1/4"
External Anode Diameters: 70, 91 and 108 mm
Anode Lengths: 63, 73 and 95 mm
Available Models: ZSA150, ZSA200 and ZSA225
Sales Unit: 1 piece

Technical Specifications and Available Models

The MG Duff ZSA range includes three spherical zinc anodes. Shaft diameter refers to the diameter of the propeller shaft, while body diameter refers to the external diameter of the anode itself.

Model	Technical Specifications
ZSA150	Shaft Diameter: 38 mm (1 1/2") Anode Diameter: 70 mm Anode Length: 63 mm Material: Zinc Shape: Spherical EAN: 0628309103729
ZSA200	Shaft Diameter: 51 mm (2") Anode Diameter: 91 mm Anode Length: 73 mm Material: Zinc Shape: Spherical EAN: 0628309103743
ZSA225	Shaft Diameter: 57 mm (2 1/4") Anode Diameter: 108 mm Anode Length: 95 mm Material: Zinc Shape: Spherical EAN: 8720193084442

Construction and Dimensions

The MG Duff ZSA anodes feature rounded zinc bodies with dimensions corresponding to their specified shaft sizes. The range offers three configurations:

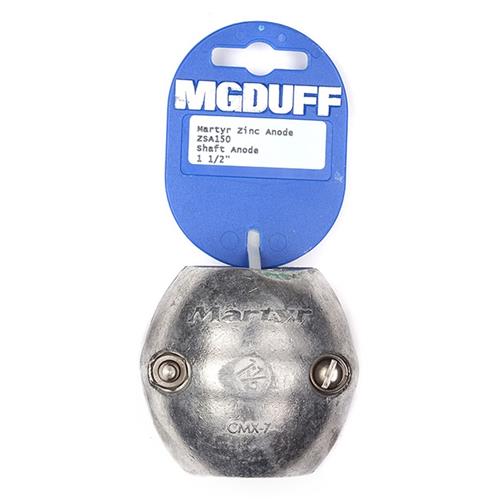

ZSA150: External diameter of 70 mm and length of 63 mm, designed for a 38 mm (1 1/2") shaft.
ZSA200: External diameter of 91 mm and length of 73 mm, designed for a 51 mm (2") shaft.
ZSA225: External diameter of 108 mm and length of 95 mm, designed for a 57 mm (2 1/4") shaft.

The external body diameter and length should be considered when checking the available space around the propeller shaft.

Corrosion Protection

The zinc anodes act as sacrificial components, corroding preferentially to help protect electrically connected marine metal components against galvanic corrosion.

The ZSA range is intended for propeller shaft applications and provides three different sizes for selecting an anode according to the required shaft diameter.

Model Selection and Compatibility

When selecting a replacement anode, verify the following dimensions:

Shaft Diameter: The anode must correspond to the diameter of the propeller shaft.
External Anode Diameter: Check that sufficient installation space is available around the shaft.
Anode Length: Verify the available axial space for the selected model.

The shaft diameter must not be confused with the external anode diameter. For example, the ZSA200 is designed for a 51 mm shaft but has an external body diameter of 91 mm.

Product Identification

Product Number	EAN Code
ZSA150	0628309103729
ZSA200	0628309103743
ZSA225	8720193084442

Sales Unit: 1 zinc spherical anode.
