Tecnoseal zinc Radice hexagonal-type propeller sacrificial anodes for fixed pitch propeller installations, supplied complete with a brass plug. The range includes standard and non-standard configurations for shaft sizes from Ø22–25 mm up to Ø70/100 mm, with weights from 0.27 to 6.90 kg. Standard versions use the corresponding metric brass plug thread, while non-standard versions include alternative metric threads, Whitworth threads and Ø hole configurations. Available models range from 18 to 46 mm in h dimension, 18 to 54 mm in h1 dimension and from Ø37 to Ø100 mm in overall diameter. Select the required version according to shaft size, m configuration, dimensions and weight.
- Description
- Ask a Question
-

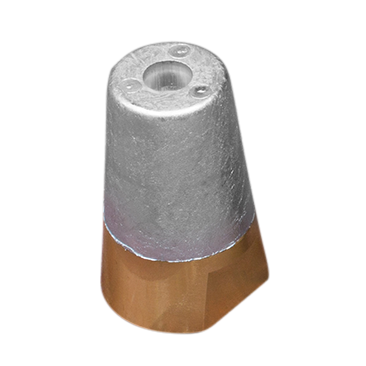

Tecnoseal Zinc Radice Hexagonal Propeller Sacrificial Anodes with Brass Plug – Standard & Non-Standard, Shaft Ø22–100 mm
The Tecnoseal Zinc Radice Hexagonal Propeller Anodes are designed for fixed pitch propeller installations and are supplied complete with a brass plug. The range includes both standard and non-standard plug configurations for different shaft sizes and mounting requirements.
Available versions cover shaft sizes from Ø22–25 mm up to Ø70/100 mm, with weights from 0.27 to 6.90 kg. Standard models use the corresponding standard brass plug thread, while non-standard versions provide alternative metric threads, Whitworth threads or Ø hole configurations. The catalogue parameter m identifies the relevant thread or hole configuration.
Tecnoseal 00410E corresponds to Osculati 43.251.01, Tecnoseal 00411E to Osculati 43.251.02, 00412E to Osculati 43.251.03, 00413E to Osculati 43.251.04, 00414E to Osculati 43.251.05, 00415E to Osculati 43.251.06 and 00417E to Osculati 43.251.07.
Key Features
- Brand: Tecnoseal
- Type: Radice Propeller Anode – Hexagonal Type
- Application: Fixed Pitch Propeller
- Material: Zinc
- Supply: Complete with Brass Plug
- Configurations: Standard and Non-Standard
- Osculati Cross References: 00410E / 43.251.01; 00411E / 43.251.02; 00412E / 43.251.03; 00413E / 43.251.04; 00414E / 43.251.05; 00415E / 43.251.06; 00417E / 43.251.07
- Shaft Size Range: Ø22–25 mm to Ø70/100 mm
- h Range: 18–46 mm
- h1 Range: 18–54 mm
- Overall Diameter Range: Ø37–100 mm
- Weight Range: 0.27–6.90 kg
Standard Brass Plug Models
Tecnoseal Code Osculati Reference Shaft Size Weight h h1 Ø m 00410E 43.251.01 Ø22–25 mm 0.30 kg / 300 g 19 mm 18 mm 37 mm 16x1.5 00411E 43.251.02 Ø30 mm 0.54 kg / 540 g 22 mm 21 mm 45 mm 20x1.5 00412E 43.251.03 Ø35 mm 0.74 kg / 740 g 24 mm 24 mm 50 mm 24x2 00413E 43.251.04 Ø40 mm 1.06 kg / 1060 g 27 mm 26 mm 55 mm 24x2 00414E 43.251.05 Ø45 mm 1.53 kg / 1530 g 29 mm 29 mm 64 mm 33x2 00415E 43.251.06 Ø50 mm 2.25 kg / 2250 g 29 mm 44 mm 75 mm 36x3 00416E — Ø55 mm 2.53 kg / 2530 g 35 mm 40 mm 80 mm 40x3 00417E 43.251.07 Ø60 mm 3.82 kg / 3820 g 41 mm 44 mm 89 mm 45x3 00419E — Ø70/100 mm 6.02 kg / 6020 g 45 mm 54 mm 100 mm 50x3
Non-Standard Brass Plug Models
Tecnoseal Code Osculati Reference Shaft Size Weight h h1 Ø m 00410E/2 — Ø22–25 mm 0.27 kg / 270 g 18 mm 18 mm 37 mm 18x1.5 00410E/3 — Ø22–25 mm 0.27 kg / 270 g 18 mm 18 mm 37 mm 20x1.5 00410E/5 — Ø22–25 mm 0.28 kg / 280 g 18 mm 18 mm 37 mm 3/4" W 00410E/XC — Ø22–25 mm 0.31 kg / 310 g 18 mm 18 mm 37 mm Ø8 00411E/5 — Ø30 mm 0.56 kg / 560 g 22 mm 21 mm 45 mm 7/8" W 00411E/XC — Ø30 mm 0.56 kg / 560 g 22 mm 21 mm 45 mm Ø10 00412E/3 — Ø35 mm 0.75 kg / 750 g 24 mm 24 mm 50 mm 24x1.5 00412E/XC — Ø35 mm 0.75 kg / 750 g 27 mm 24 mm 50 mm Ø10 00413E/XC — Ø40 mm 1.02 kg / 1020 g 29 mm 26 mm 55 mm Ø8.5 00414E/XC — Ø45 mm 1.59 kg / 1590 g 29 mm 29 mm 65 mm Ø12 00415E/XC — Ø50 mm 2.38 kg / 2380 g 35 mm 44 mm 75 mm Ø12 00416E/XC — Ø55 mm 2.53 kg / 2530 g 41 mm 40 mm 80 mm Ø12 00417E/1 — Ø60 mm 3.90 kg / 3900 g 41 mm 44 mm 90 mm 34x2 00417E/2 — Ø60 mm 3.40 kg / 3400 g 41 mm 44 mm 90 mm 42x3 00417E/3 — Ø60 mm 4.10 kg / 4100 g 41 mm 44 mm 90 mm 33x2 00417E/XC — Ø60 mm 4.65 kg / 4650 g 41 mm 44 mm 90 mm Ø12 00419E/XC — Ø70/100 mm 6.90 kg / 6900 g 46 mm 54 mm 100 mm Ø10
Tecnoseal 00410E / Osculati 43.251.01 – Shaft Ø22–25 mm
- Osculati Reference: 43.251.01
- Configuration: Standard
- Shaft Size: Ø22–25 mm
- Weight: 0.30 kg / 300 g
- h: 19 mm
- h1: 18 mm
- Overall Diameter (Ø): 37 mm
- m: 16x1.5
Tecnoseal 00411E / Osculati 43.251.02 – Shaft Ø30 mm
- Osculati Reference: 43.251.02
- Configuration: Standard
- Shaft Size: Ø30 mm
- Weight: 0.54 kg / 540 g
- h: 22 mm
- h1: 21 mm
- Overall Diameter (Ø): 45 mm
- m: 20x1.5
Tecnoseal 00412E / Osculati 43.251.03 – Shaft Ø35 mm
- Osculati Reference: 43.251.03
- Configuration: Standard
- Shaft Size: Ø35 mm
- Weight: 0.74 kg / 740 g
- h: 24 mm
- h1: 24 mm
- Overall Diameter (Ø): 50 mm
- m: 24x2
Tecnoseal 00413E / Osculati 43.251.04 – Shaft Ø40 mm
- Osculati Reference: 43.251.04
- Configuration: Standard
- Shaft Size: Ø40 mm
- Weight: 1.06 kg / 1060 g
- h: 27 mm
- h1: 26 mm
- Overall Diameter (Ø): 55 mm
- m: 24x2
Tecnoseal 00414E / Osculati 43.251.05 – Shaft Ø45 mm
- Osculati Reference: 43.251.05
- Configuration: Standard
- Shaft Size: Ø45 mm
- Weight: 1.53 kg / 1530 g
- h: 29 mm
- h1: 29 mm
- Overall Diameter (Ø): 64 mm
- m: 33x2
Tecnoseal 00415E / Osculati 43.251.06 – Shaft Ø50 mm
- Osculati Reference: 43.251.06
- Configuration: Standard
- Shaft Size: Ø50 mm
- Weight: 2.25 kg / 2250 g
- h: 29 mm
- h1: 44 mm
- Overall Diameter (Ø): 75 mm
- m: 36x3
Tecnoseal 00417E / Osculati 43.251.07 – Shaft Ø60 mm
- Osculati Reference: 43.251.07
- Configuration: Standard
- Shaft Size: Ø60 mm
- Weight: 3.82 kg / 3820 g
- h: 41 mm
- h1: 44 mm
- Overall Diameter (Ø): 89 mm
- m: 45x3
Dimensions and Plug Selection
- Shaft Size: Nominal shaft size for the corresponding Radice installation
- h: Anode body height
- h1: Overall plug / anode profile height according to the catalogue drawing
- Ø: Overall outside diameter
- m: Brass plug thread size or hole diameter according to the selected configuration
- Standard: Catalogue standard brass plug configuration
- Non-Standard: Alternative thread or hole configuration
For replacement selection, compare the shaft size, h, h1, overall diameter, m configuration and anode weight with the existing installation.
-
