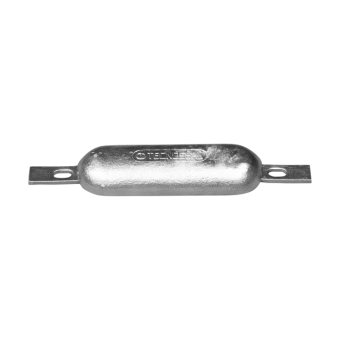

Tecnoseal Aluminium Oval Type Bolt-On Sacrificial Anodes with Slotted Holes

ID 1399281

$ 48.19

1-2 weeks delivery time

Size:

200x70x25
100x60x18
210x70x28
300x80x40
200x70x28
200x90x35
110x63x31

Item:

550 g
1000 g
460 g
1500 g
2500 g
900 g

Tecnoseal aluminium Oval Type bolt-on sacrificial anodes with integrated mounting strap and slotted fixing holes. The range includes seven models weighing from 0.46 to 2.50 kg, with anode body dimensions from 100 × 60 × 18 mm to 300 × 80 × 40 mm, mounting dimension i from 200 to 355 mm and slotted holes from 12 × 20 to 13 × 40 mm. Strap sizes range from 240 × 25 × 5 mm to 400 × 30 × 6 mm. Select the required version according to body dimensions, mounting dimension, slot size and strap dimensions.

Description
Ask a Question

Tecnoseal Aluminium Oval Type Bolt-On Sacrificial Anodes with Slotted Holes – 0.46–2.50 kg

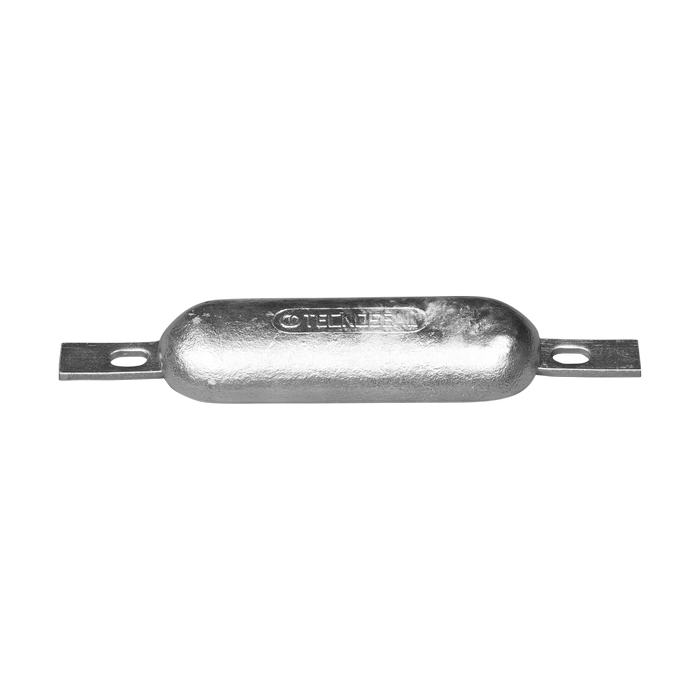

The Tecnoseal Aluminium Oval Type Bolt-On Anodes are sacrificial anodes with integrated mounting straps and slotted fixing holes. The range includes seven aluminium variants with different body dimensions, mounting dimensions, slot sizes, strap configurations and weights.

For replacement selection, compare the anode body dimensions together with mounting dimension i, slotted-hole dimensions and strap size.

Key Features

Brand: Tecnoseal
Product Type: Bolt-on sacrificial anode with strap
Type: Oval Type
Material: Aluminium
Mounting: Bolt-on
Fixing: Slotted holes
Available Models: 00300A-AL, 00301A-AL, 00302A-AL, 00303FERRETTIAL, 00303MAL, 00304A-AL and 00306-2AL
Weight Range: 0.46–2.50 kg
Body Length Range (l): 100–300 mm
Body Width Range (a): 60–90 mm
Body Height Range (h): 18–40 mm
Mounting Dimension (i): 200–355 mm
Slotted Hole Range: 12 × 20 to 13 × 40 mm

Available Models and Technical Specifications

Tecnoseal Code	Weight	l	a	h	i	Slotted Hole	Strap / Insert
00300A-AL	0.46 kg / 460 g	100 mm	60 mm	18 mm	200 mm	13 × 25 mm	265 × 25 × 5 mm
00301A-AL	0.55 kg / 550 g	110 mm	63 mm	31 mm	200 mm	13 × 27 mm	240 × 25 × 5 mm
00302A-AL	0.90 kg / 900 g	200 mm	70 mm	25 mm	250 mm	13 × 25 mm	300 × 25 × 5 mm
00303FERRETTIAL	1.00 kg / 1000 g	200 mm	70 mm	28 mm	230 mm	12 × 20 mm	300 × 25 × 5 mm
00303MAL	1.00 kg / 1000 g	210 mm	70 mm	28 mm	250 mm	13 × 25 mm	300 × 25 × 5 mm
00304A-AL	1.50 kg / 1500 g	200 mm	90 mm	35 mm	250 mm	13 × 25 mm	300 × 25 × 5 mm
00306-2AL	2.50 kg / 2500 g	300 mm	80 mm	40 mm	355 mm	13 × 40 mm	400 × 30 × 6 mm
