Tecnoseal zinc Beneteau propeller anodes supplied complete with brass plug, available for shaft sizes from Ø22–25 to Ø50 mm. The range covers body diameters from Ø37 to Ø75 mm, h dimensions from 20 to 30 mm, h1 dimensions from 18 to 33 mm and metric threads from 16x1.5 to 36x3. Individual weights range from 0.30 to 2.29 kg. Select the required version according to shaft diameter, body dimensions and thread size.
- Description
- Ask a Question
-

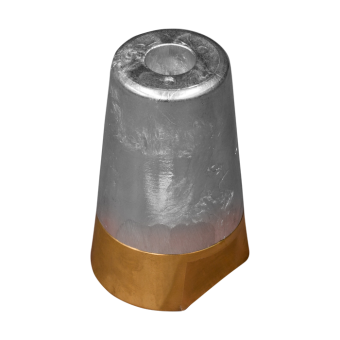

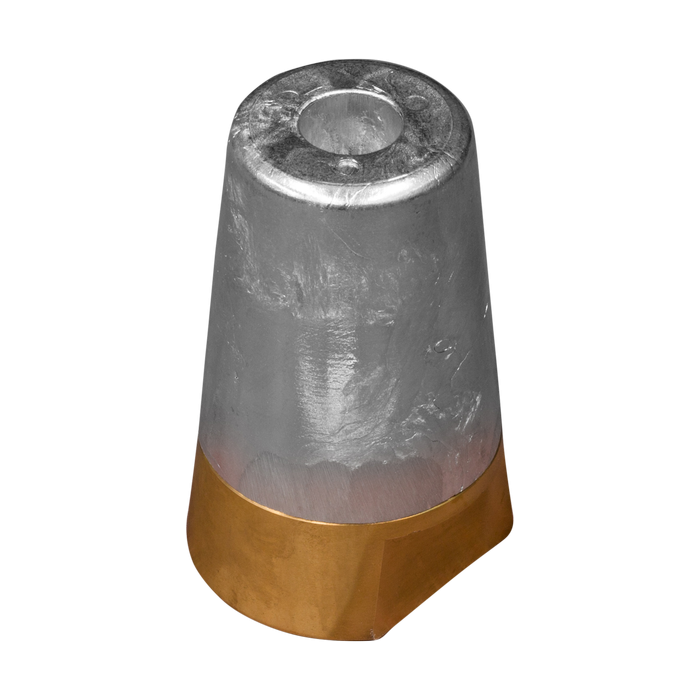

Tecnoseal Zinc Beneteau Propeller Anodes with Brass Plug – Shaft Ø22–50 mm
The Tecnoseal Beneteau Propeller Anodes are zinc (ZN) anodes supplied complete with a brass plug. The range is available for propeller shafts from Ø22–25 mm up to Ø50 mm.
Each version is defined by shaft size, dimensions h and h1, outside diameter Ø, metric thread m and anode weight. Body diameters range from Ø37 to Ø75 mm, while available metric threads range from 16x1.5 to 36x3.
Key Features
- Brand: Tecnoseal
- Application: Beneteau propeller shaft
- Anode Material: Zinc (ZN)
- Configuration: Complete with brass plug
- Shaft Size Range: Ø22–25 to Ø50 mm
- Outside Diameter Range: Ø37–75 mm
- Weight Range: 0.30–2.29 kg
Available Models and Technical Specifications
Tecnoseal Code Shaft Size h h1 Outside Ø Thread m Weight 00410/B Ø22–25 mm 20 mm 18 mm Ø37 mm 16x1.5 0.30 kg / 300 g 00411/B Ø30 mm 22 mm 21 mm Ø45 mm 20x1.5 0.54 kg / 540 g 00412/B Ø35 mm 24 mm 24 mm Ø50 mm 24x2 0.74 kg / 740 g 00413/B Ø40 mm 27 mm 27 mm Ø55 mm 24x2 1.07 kg / 1070 g 00414/B Ø45 mm 30 mm 30 mm Ø65 mm 30x2 1.59 kg / 1590 g 00415/B Ø50 mm 29 mm 33 mm Ø75 mm 36x3 2.29 kg / 2290 g
Dimensions for Model Selection
- Shaft Size: Propeller shaft diameter
- h / h1: Catalogue dimensions
- Ø: Outside anode diameter
- m: Metric thread size
- Weight: Individual anode weight
Select the required Tecnoseal Beneteau anode according to shaft diameter, outside diameter, h/h1 dimensions and metric thread size.
-
