Tecnoseal Zinc Radice Hexagonal Propeller Sacrificial Anodes, Shaft Ø22–100 mm

ID 1399493

$ 12.81

1-2 weeks delivery time

Shaft Diameter:

22-25
30
35
40
45
50
55
60
70/100

Item:

250 g
460 g
780 g
120 g
350 g
950 g
1010 g
1660 g
2580 g

Tecnoseal zinc Radice hexagonal-type propeller sacrificial anodes for fixed pitch propeller installations, supplied as replacement anodes only. The range includes nine models for shaft sizes from Ø22–25 mm up to Ø70/100 mm, with weights from 0.12 to 2.58 kg. Available versions range from 39 to 98 mm in height and from Ø33 to Ø97 mm in overall diameter, with individual c, Ø1 and Ø2 dimensions for replacement matching. Select the required model according to shaft size, anode dimensions and weight.

Description
Ask a Question

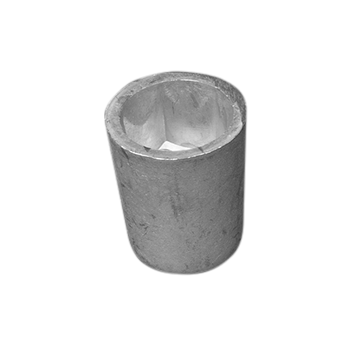

Tecnoseal Zinc Radice Hexagonal Propeller Sacrificial Anodes – Replacement Anode Only, Shaft Ø22–100 mm

The Tecnoseal Zinc Radice Hexagonal Propeller Anodes are replacement sacrificial anodes for Radice fixed pitch propeller installations. The range includes nine zinc models designed for different shaft sizes and hexagonal anode dimensions.

The available versions cover shaft sizes from Ø22–25 mm up to Ø70/100 mm, with weights from 0.12 to 2.58 kg. Depending on the model, overall height ranges from 39 to 98 mm and overall diameter from Ø33 to Ø97 mm. Each version has specific c, Ø1 and Ø2 dimensions for replacement matching.

Key Features

Brand: Tecnoseal
Type: Radice Propeller Anode – Hexagonal Type
Application: Fixed Pitch Propeller
Supply: Replacement Anode Only
Material: Zinc
Available Models: 00400E, 00401E, 00402E, 00403E, 00404E, 00405E, 00406E, 00407E and 00409E
Shaft Size Range: Ø22–25 mm to Ø70/100 mm
Height Range: 39–98 mm
Overall Diameter Range: Ø33–97 mm
Weight Range: 0.12–2.58 kg

Available Models and Technical Specifications

Tecnoseal Code	Shaft Size	Weight	c	Height (h)	Ø	Ø1	Ø2
00400E	Ø22–25 mm	0.12 kg / 120 g	22 mm	39 mm	33 mm	7 mm	10 mm
00401E	Ø30 mm	0.25 kg / 250 g	27 mm	53 mm	41 mm	9 mm	14 mm
00402E	Ø35 mm	0.35 kg / 350 g	32 mm	62 mm	46 mm	9 mm	14 mm
00403E	Ø40 mm	0.46 kg / 460 g	36 mm	67 mm	51 mm	9 mm	15 mm
00404E	Ø45 mm	0.78 kg / 780 g	41 mm	76 mm	61 mm	11 mm	22 mm
00405E	Ø50 mm	0.95 kg / 950 g	46 mm	84 mm	72 mm	11 mm	21 mm
00406E	Ø55 mm	1.01 kg / 1010 g	50 mm	87 mm	74 mm	11 mm	20 mm
00407E	Ø60 mm	1.66 kg / 1660 g	55 mm	98 mm	82 mm	11 mm	21 mm
00409E	Ø70/100 mm	2.58 kg / 2580 g	54 mm	97 mm	97 mm	11 mm	21 mm

Tecnoseal 00400E – Shaft Ø22–25 mm

Material: Zinc
Supply: Replacement anode only
Shaft Size: Ø22–25 mm
Weight: 0.12 kg / 120 g / 0.26 lb
c: 22 mm / 0.87 in
Height (h): 39 mm / 1.54 in
Overall Diameter (Ø): 33 mm / 1.30 in
Ø1: 7 mm / 0.28 in
Ø2: 10 mm / 0.39 in

Tecnoseal 00401E – Shaft Ø30 mm

Material: Zinc
Supply: Replacement anode only
Shaft Size: Ø30 mm
Weight: 0.25 kg / 250 g / 0.55 lb
c: 27 mm / 1.06 in
Height (h): 53 mm / 2.09 in
Overall Diameter (Ø): 41 mm / 1.61 in
Ø1: 9 mm / 0.35 in
Ø2: 14 mm / 0.55 in

Tecnoseal 00402E – Shaft Ø35 mm

Material: Zinc
Supply: Replacement anode only
Shaft Size: Ø35 mm
Weight: 0.35 kg / 350 g / 0.77 lb
c: 32 mm / 1.26 in
Height (h): 62 mm / 2.44 in
Overall Diameter (Ø): 46 mm / 1.81 in
Ø1: 9 mm / 0.35 in
Ø2: 14 mm / 0.55 in

Tecnoseal 00403E – Shaft Ø40 mm

Material: Zinc
Supply: Replacement anode only
Shaft Size: Ø40 mm
Weight: 0.46 kg / 460 g / 1.01 lb
c: 36 mm / 1.42 in
Height (h): 67 mm / 2.64 in
Overall Diameter (Ø): 51 mm / 2.01 in
Ø1: 9 mm / 0.35 in
Ø2: 15 mm / 0.59 in

Tecnoseal 00404E – Shaft Ø45 mm

Material: Zinc
Supply: Replacement anode only
Shaft Size: Ø45 mm
Weight: 0.78 kg / 780 g / 1.72 lb
c: 41 mm / 1.61 in
Height (h): 76 mm / 2.99 in
Overall Diameter (Ø): 61 mm / 2.40 in
Ø1: 11 mm / 0.43 in
Ø2: 22 mm / 0.87 in

Tecnoseal 00405E – Shaft Ø50 mm

Material: Zinc
Supply: Replacement anode only
Shaft Size: Ø50 mm
Weight: 0.95 kg / 950 g / 2.09 lb
c: 46 mm / 1.81 in
Height (h): 84 mm / 3.31 in
Overall Diameter (Ø): 72 mm / 2.83 in
Ø1: 11 mm / 0.43 in
Ø2: 21 mm / 0.83 in

Tecnoseal 00406E – Shaft Ø55 mm

Material: Zinc
Supply: Replacement anode only
Shaft Size: Ø55 mm
Weight: 1.01 kg / 1010 g / 2.23 lb
c: 50 mm / 1.97 in
Height (h): 87 mm / 3.43 in
Overall Diameter (Ø): 74 mm / 2.91 in
Ø1: 11 mm / 0.43 in
Ø2: 20 mm / 0.79 in

Tecnoseal 00407E – Shaft Ø60 mm

Material: Zinc
Supply: Replacement anode only
Shaft Size: Ø60 mm
Weight: 1.66 kg / 1660 g / 3.66 lb
c: 55 mm / 2.17 in
Height (h): 98 mm / 3.86 in
Overall Diameter (Ø): 82 mm / 3.23 in
Ø1: 11 mm / 0.43 in
Ø2: 21 mm / 0.83 in

Tecnoseal 00409E – Shaft Ø70/100 mm

Material: Zinc
Supply: Replacement anode only
Shaft Size: Ø70/100 mm
Weight: 2.58 kg / 2580 g / 5.69 lb
c: 54 mm / 2.13 in
Height (h): 97 mm / 3.82 in
Overall Diameter (Ø): 97 mm / 3.82 in
Ø1: 11 mm / 0.43 in
Ø2: 21 mm / 0.83 in

Dimensions for Model Selection

Shaft Size: Nominal shaft size for the corresponding Radice installation
c: Internal hexagonal / lower body dimension according to the catalogue drawing
h: Overall anode height
Ø: Overall outside diameter
Ø1: Central mounting-hole diameter
Ø2: Upper internal diameter

For replacement selection, compare the shaft size, c, overall height, outside diameter, Ø1 and Ø2 dimensions and anode weight with the existing installation.
