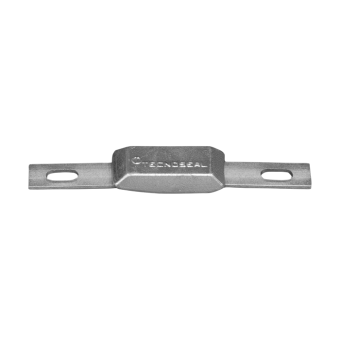

Tecnoseal Aluminium Scandinavian Type Bolt-On Sacrificial Anodes with Strap

ID 1399125

$ 19.62

1-2 weeks delivery time

Size:

95x34x17
95x40x25
75x34x16
110x42x24
120x46x35
140x82x26
220x95x32
215x90x30
220x96x30
260x90x46

Item:

150 g
160 g
250 g
1000 g
1500 g
650 g
1600 g
1300 g
2400 g

Tecnoseal aluminium Scandinavian Type bolt-on sacrificial anodes with mounting strap, available in weights from 150 g to 2.40 kg. The range includes multiple body and strap configurations with body lengths from 75 to 260 mm, widths from 34 to 96 mm, heights from 16 to 46 mm, overall dimension i from 117 to 315 mm and mounting slots from 7 × 25 to 13 × 35 mm. Select the required model according to body dimensions, mounting-slot size, overall dimension i and strap dimensions.

Description
Ask a Question

Tecnoseal Aluminium Scandinavian Type Bolt-On Sacrificial Anodes with Strap – 0.15–2.40 kg

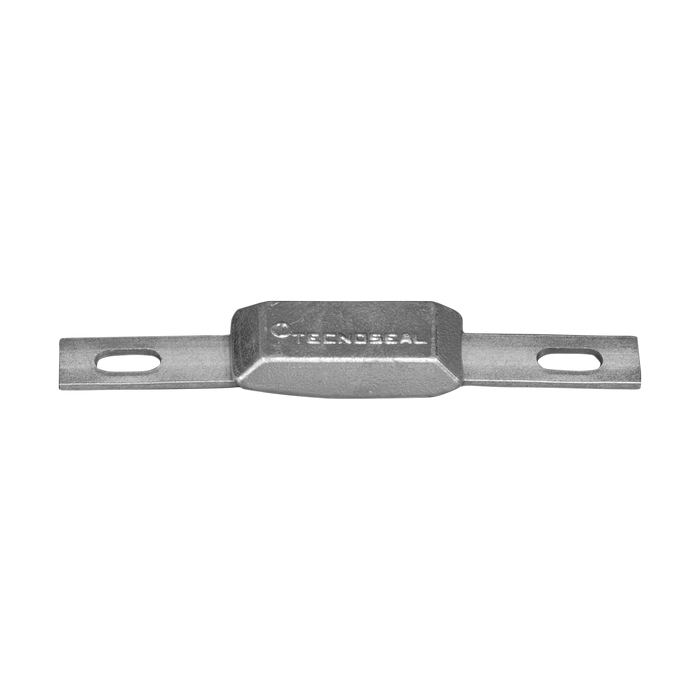

The Tecnoseal Aluminium Scandinavian Type Bolt-On Anodes are sacrificial anodes with an integrated mounting strap. The range includes multiple sizes from compact 150 g versions to larger 2.40 kg models.

The available variants differ in anode body length, width and height, overall dimension i, mounting-slot dimensions and strap size. These parameters should be compared with the existing installation when selecting a replacement.

Key Features

Brand: Tecnoseal
Product Type: Bolt-on sacrificial anode with strap
Type: Scandinavian Type
Material: Aluminium
Mounting: Bolt-on
Weight Range: 0.15–2.40 kg
Body Length Range (l): 75–260 mm
Body Width Range (a): 34–96 mm
Body Height Range (h): 16–46 mm
Dimension i Range: 117–315 mm
Mounting Slot Range: 7 × 25 to 13 × 35 mm

Available Models and Technical Specifications

Tecnoseal Code	Weight	l	a	h	i	Mounting Slot	Strap
00385AL	0.15 kg / 150 g	75 mm	34 mm	16 mm	135 mm	9 × 20 mm	175 × 20 × 3 mm
00385/1AL	0.16 kg / 160 g	95 mm	34 mm	17 mm	117 mm	7 × 25 mm	165 × 15 × 3 mm
00386AL	0.25 kg / 250 g	95 mm	40 mm	25 mm	132 mm	9 × 20 mm	170 × 20 × 3 mm
00386/1AL	0.25 kg / 250 g	110 mm	42 mm	24 mm	135 mm	9 × 20 mm	175 × 15 × 2 mm
00387AL	0.65 kg / 650 g	120 mm	46 mm	35 mm	180 mm	13 × 35 mm	255 × 25 × 5 mm
00387/1AL	0.46 kg / 460 g	135 mm	60 mm	30 mm	180 mm	13 × 25 mm	230 × 20 × 3 mm
00388AL	1.00 kg / 1000 g	140 mm	82 mm	26 mm	180 mm	13 × 35 mm	255 × 25 × 5 mm
00389-1AL	1.60 kg / 1600 g	220 mm	95 mm	32 mm	260 mm	13 × 30 mm	300 × 25 × 5 mm
00389-2AL	1.50 kg / 1500 g	215 mm	90 mm	30 mm	315 mm	12 × 20 mm	340 × 25 × 5 mm
00389-3AL	1.30 kg / 1300 g	220 mm	96 mm	30 mm	260 mm	13 × 30 mm	300 × 25 × 5 mm
00389-4AL	2.40 kg / 2400 g	260 mm	90 mm	46 mm	315 mm	12 × 20 mm	340 × 25 × 5 mm

Compact Scandinavian Type Aluminium Anodes

00385AL: 75 × 34 × 16 mm body, i 135 mm, 9 × 20 mm mounting slot, 175 × 20 × 3 mm strap, 150 g.
00385/1AL: 95 × 34 × 17 mm body, i 117 mm, 7 × 25 mm mounting slot, 165 × 15 × 3 mm strap, 160 g.
00386AL: 95 × 40 × 25 mm body, i 132 mm, 9 × 20 mm mounting slot, 170 × 20 × 3 mm strap, 250 g.
00386/1AL: 110 × 42 × 24 mm body, i 135 mm, 9 × 20 mm mounting slot, 175 × 15 × 2 mm strap, 250 g.

Medium Scandinavian Type Aluminium Anodes

00387AL: 120 × 46 × 35 mm body, i 180 mm, 13 × 35 mm mounting slot, 255 × 25 × 5 mm strap, 650 g.
00387/1AL: 135 × 60 × 30 mm body, i 180 mm, 13 × 25 mm mounting slot, 230 × 20 × 3 mm strap, 460 g.
00388AL: 140 × 82 × 26 mm body, i 180 mm, 13 × 35 mm mounting slot, 255 × 25 × 5 mm strap, 1000 g.

Large Scandinavian Type Aluminium Anodes

00389-1AL: 220 × 95 × 32 mm body, i 260 mm, 13 × 30 mm mounting slot, 300 × 25 × 5 mm strap, 1600 g.
00389-2AL: 215 × 90 × 30 mm body, i 315 mm, 12 × 20 mm mounting slot, 340 × 25 × 5 mm strap, 1500 g.
00389-3AL: 220 × 96 × 30 mm body, i 260 mm, 13 × 30 mm mounting slot, 300 × 25 × 5 mm strap, 1300 g.
00389-4AL: 260 × 90 × 46 mm body, i 315 mm, 12 × 20 mm mounting slot, 340 × 25 × 5 mm strap, 2400 g.

Dimensions for Model Selection

l: Anode body length
a: Anode body width
h: Anode body height
i: Overall dimension shown in the Tecnoseal drawing
Mounting Slot: Slotted fixing-hole dimensions
Strap: Mounting strap dimensions

For replacement selection, compare the body dimensions together with dimension i, mounting-slot size and strap dimensions.
