Tecnoseal Stainless Steel Washers for Radice Propeller Anodes, Shaft 22–100 mm

ID 1399552

$ 7.57

1-2 weeks delivery time

Shaft Diameter:

22-25
30
35
40
45
50
55
60
70-100

Size:

Ø38x16
Ø46x20
Ø51x24
Ø53x24
Ø66x33
Ø76x37
Ø81x40
Ø90x45
Ø100x50

Item:

30 g
50 g
20 g
40 g
5 g
10 g

Tecnoseal stainless steel washers for fastening Radice propeller anodes, available in nine sizes for shaft diameters from 22–25 mm up to 70–100 mm. The range includes washers with Ø1 outside diameters from 38 to 100 mm, Ø2 dimensions from 16 to 50 mm and c dimensions from 6 to 20 mm. Weights range from 0.005 to 0.05 kg. Select the required washer according to shaft size and Ø1, Ø2 and c dimensions.

Description
Ask a Question

Tecnoseal Stainless Steel Washers for Radice Propeller Anodes – Shaft 22–100 mm

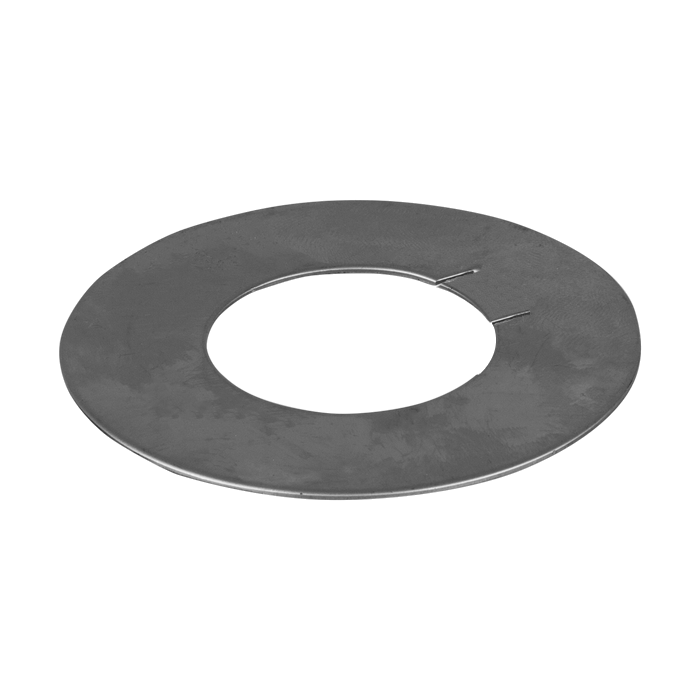

The Tecnoseal Stainless Steel Washers are designed for fastening Radice propeller anodes. The range includes nine washer sizes matched to different shaft diameters from 22–25 mm up to 70–100 mm.

Depending on the model, Ø1 dimensions range from 38 to 100 mm, Ø2 dimensions from 16 to 50 mm and c dimensions from 6 to 20 mm. Washer weights range from 0.005 to 0.05 kg.

Key Features

Brand: Tecnoseal
Product Type: Washer for Radice propeller anode fastening
Material: Stainless Steel
Available Models: 00410R, 00411R, 00412R, 00413R, 00414R, 00415R, 00416R, 00417R and 00419R
Shaft Size Range: 22–25 mm to 70–100 mm
Ø1 Range: 38–100 mm
Ø2 Range: 16–50 mm
c Range: 6–20 mm
Weight Range: 0.005–0.05 kg

Available Models and Technical Specifications

Tecnoseal Code	Shaft Size	Weight	c	Ø1	Ø2
00410R	22–25 mm	0.005 kg / 5 g	6 mm	38 mm	16 mm
00411R	30 mm	0.01 kg / 10 g	8 mm	46 mm	20 mm
00412R	35 mm	0.01 kg / 10 g	10 mm	51 mm	24 mm
00413R	40 mm	0.02 kg / 20 g	12 mm	53 mm	24 mm
00414R	45 mm	0.02 kg / 20 g	14 mm	66 mm	33 mm
00415R	50 mm	0.03 kg / 30 g	14 mm	76 mm	37 mm
00416R	55 mm	0.03 kg / 30 g	16 mm	81 mm	40 mm
00417R	60 mm	0.04 kg / 40 g	18 mm	90 mm	45 mm
00419R	70–100 mm	0.05 kg / 50 g	20 mm	100 mm	50 mm

Tecnoseal 00410R – Shaft 22–25 mm

Material: Stainless Steel
Shaft Size: 22–25 mm
Weight: 0.005 kg / 5 g / 0.01 lb
c: 6 mm / 0.24 in
Ø1: 38 mm / 1.50 in
Ø2: 16 mm / 0.63 in

Tecnoseal 00411R – Shaft 30 mm

Material: Stainless Steel
Shaft Size: 30 mm
Weight: 0.01 kg / 10 g / 0.02 lb
c: 8 mm / 0.31 in
Ø1: 46 mm / 1.81 in
Ø2: 20 mm / 0.79 in

Tecnoseal 00412R – Shaft 35 mm

Material: Stainless Steel
Shaft Size: 35 mm
Weight: 0.01 kg / 10 g / 0.02 lb
c: 10 mm / 0.39 in
Ø1: 51 mm / 2.01 in
Ø2: 24 mm / 0.94 in

Tecnoseal 00413R – Shaft 40 mm

Material: Stainless Steel
Shaft Size: 40 mm
Weight: 0.02 kg / 20 g / 0.04 lb
c: 12 mm / 0.47 in
Ø1: 53 mm / 2.09 in
Ø2: 24 mm / 0.94 in

Tecnoseal 00414R – Shaft 45 mm

Material: Stainless Steel
Shaft Size: 45 mm
Weight: 0.02 kg / 20 g / 0.04 lb
c: 14 mm / 0.55 in
Ø1: 66 mm / 2.60 in
Ø2: 33 mm / 1.30 in

Tecnoseal 00415R – Shaft 50 mm

Material: Stainless Steel
Shaft Size: 50 mm
Weight: 0.03 kg / 30 g / 0.07 lb
c: 14 mm / 0.55 in
Ø1: 76 mm / 2.99 in
Ø2: 37 mm / 1.46 in

Tecnoseal 00416R – Shaft 55 mm

Material: Stainless Steel
Shaft Size: 55 mm
Weight: 0.03 kg / 30 g / 0.07 lb
c: 16 mm / 0.63 in
Ø1: 81 mm / 3.19 in
Ø2: 40 mm / 1.57 in

Tecnoseal 00417R – Shaft 60 mm

Material: Stainless Steel
Shaft Size: 60 mm
Weight: 0.04 kg / 40 g / 0.09 lb
c: 18 mm / 0.71 in
Ø1: 90 mm / 3.54 in
Ø2: 45 mm / 1.77 in

Tecnoseal 00419R – Shaft 70–100 mm

Material: Stainless Steel
Shaft Size: 70–100 mm
Weight: 0.05 kg / 50 g / 0.11 lb
c: 20 mm / 0.79 in
Ø1: 100 mm / 3.94 in
Ø2: 50 mm / 1.97 in

Dimensions for Model Selection

Shaft Size: Shaft size corresponding to the Radice propeller anode installation
c: Catalogue dimension c
Ø1: Washer outside diameter
Ø2: Washer inside diameter

For replacement selection, compare the shaft size and c, Ø1 and Ø2 dimensions with the required Radice propeller anode installation.
