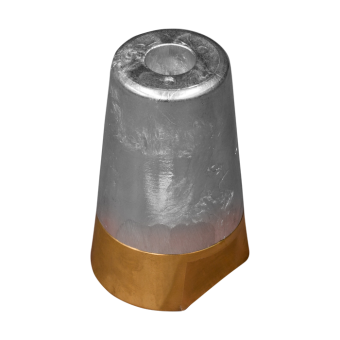

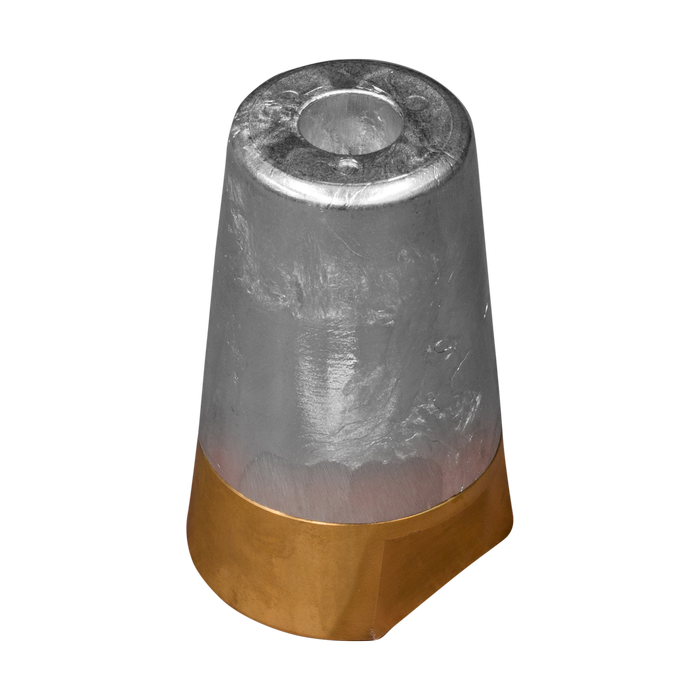

Tecnoseal Zinc Radice Conical Propeller Sacrificial Anodes with Brass Plug

ID 1399432

$ 64.40

1-2 weeks delivery time

Type:

Standard
Non-Standard

Shaft Diameter:

22-25
30
35
40
45
50
55
60
70/100

Item:

16x1,5
20x1,5
24x2
33x2
36x3
40x3
45x3
50x3
14x1,5
18x1,5
16x2
Ø8
22x1,5
Ø10
24x1,5
26x2
24x1,5 SX
27x1,5
30x2
27x2
26x1,5
Ø12
34x2
42x2
42x3
42x3 SX
45x2,5
54x2,5
48x3 DX
48x3 SX

Tecnoseal zinc Radice conical propeller sacrificial anodes for fixed pitch propeller installations, supplied complete with a brass plug. The range includes standard brass plug versions and non-standard configurations for shaft sizes from Ø22–25 mm up to Ø70/100 mm. Available models cover overall diameters from Ø37 to Ø100 mm, h dimensions from 20 to 46 mm and h1 dimensions from 18 to 54 mm, with weights from 0.27 to 7.15 kg. Standard and non-standard versions are differentiated by the m specification, including multiple thread sizes, left-hand thread versions and Ø8, Ø10 or Ø12 hole configurations. Select the required model according to shaft size, plug thread or hole specification, dimensions and weight.

Description
Ask a Question

Tecnoseal Zinc Radice Conical Propeller Sacrificial Anodes with Brass Plug – Standard & Non-Standard, Shaft Ø22–100 mm

The Tecnoseal Zinc Radice Conical Propeller Anodes are sacrificial anodes for fixed pitch propeller installations, supplied complete with a brass plug. The product family includes versions with a standard brass plug together with a wide range of non-standard plug configurations.

The range covers shaft sizes from Ø22–25 mm up to Ø70/100 mm. Depending on the shaft size and plug configuration, the available models use different thread sizes or Ø8, Ø10 and Ø12 hole configurations. Left-hand thread versions marked SX and the corresponding DX version are also available where listed.

Confirmed Osculati cross references include Tecnoseal 00410 / Osculati 43.122.20, 00411 / 43.122.30, 00412 / 43.122.35, 00414 / 43.122.46, 00415 / 43.122.50, 00410/2 / 43.122.25, 00413/1 / 43.122.40 and 00414/2 / 43.122.45.

Key Features

Brand: Tecnoseal
Type: Radice Propeller Anode – Conical Type
Application: Fixed Pitch Propeller
Material: Zinc
Supply: Complete with Brass Plug
Configurations: Standard Brass Plug and Non-Standard Plug
Osculati Cross References: 00410 / 43.122.20; 00411 / 43.122.30; 00412 / 43.122.35; 00414 / 43.122.46; 00415 / 43.122.50; 00410/2 / 43.122.25; 00413/1 / 43.122.40; 00414/2 / 43.122.45
Shaft Size Range: Ø22–25 mm to Ø70/100 mm
Overall Diameter Range: Ø37–100 mm
h Range: 20–46 mm
h1 Range: 18–54 mm
Weight Range: 0.27–7.15 kg
Plug Specification (m): Threaded, SX/DX thread or Ø8 / Ø10 / Ø12 hole depending on model

Standard Brass Plug Models

Tecnoseal Code	Osculati Reference	Shaft Size	Weight	h	h1	Ø	m
00410	43.122.20	Ø22–25 mm	0.31 kg / 310 g	20 mm	18 mm	37 mm	16x1.5
00411	43.122.30	Ø30 mm	0.55 kg / 550 g	22 mm	21 mm	45 mm	20x1.5
00412	43.122.35	Ø35 mm	0.75 kg / 750 g	24 mm	24 mm	50 mm	24x2
00413	—	Ø40 mm	1.02 kg / 1020 g	27 mm	27 mm	55 mm	24x2
00414	43.122.46	Ø45 mm	1.62 kg / 1620 g	30 mm	30 mm	65 mm	33x2
00415	43.122.50	Ø50 mm	2.28 kg / 2280 g	30 mm	31 mm	74 mm	36x3
00416	—	Ø55 mm	2.78 kg / 2780 g	40 mm	41 mm	79 mm	40x3
00417	—	Ø60 mm	3.80 kg / 3800 g	41 mm	41 mm	90 mm	45x3
00419	—	Ø70/100 mm	5.89 kg / 5890 g	46 mm	46 mm	100 mm	50x3

Non-Standard Brass Plug Models – Shaft Ø22–25 mm

Tecnoseal Code	Osculati Reference	Weight	h	h1	Ø	m
00410/1	—	0.31 kg / 310 g	20 mm	18 mm	37 mm	14x1.5
00410/2	43.122.25	0.29 kg / 290 g	20 mm	18 mm	37 mm	18x1.5
00410/3	—	0.27 kg / 270 g	20 mm	18 mm	37 mm	20x1.5
00410/4	—	0.30 kg / 300 g	20 mm	18 mm	37 mm	16x2
00410X/C	—	0.35 kg / 350 g	20 mm	18 mm	37 mm	Ø8 Hole

Non-Standard Brass Plug Models – Shaft Ø30 mm

Tecnoseal Code	Osculati Reference	Weight	h	h1	Ø	m
00411/1	—	0.59 kg / 590 g	22 mm	21 mm	45 mm	14x1.5
00411/2	—	0.53 kg / 530 g	22 mm	21 mm	45 mm	22x1.5
00411X/C	—	0.53 kg / 530 g	22 mm	21 mm	45 mm	Ø10 Hole

Non-Standard Brass Plug Models – Shaft Ø35 mm

Tecnoseal Code	Osculati Reference	Weight	h	h1	Ø	m
00412/1	—	0.78 kg / 780 g	24 mm	24 mm	50 mm	22x1.5
00412/2	—	0.84 kg / 840 g	24 mm	24 mm	50 mm	14x1.5
00412/3	—	0.75 kg / 750 g	24 mm	24 mm	50 mm	24x1.5
00412X/C	—	0.85 kg / 850 g	24 mm	24 mm	50 mm	Ø10 Hole

Non-Standard Brass Plug Models – Shaft Ø40 mm

Tecnoseal Code	Osculati Reference	Weight	h	h1	Ø	m
00413/1	43.122.40	1.10 kg / 1100 g	27 mm	27 mm	55 mm	26x2
00413/2	—	1.19 kg / 1190 g	27 mm	27 mm	55 mm	14x1.5
00413/3	—	1.07 kg / 1070 g	27 mm	27 mm	55 mm	24x1.5
00413SX	—	1.07 kg / 1070 g	27 mm	27 mm	55 mm	24x1.5 SX
00413X/C	—	0.98 kg / 980 g	27 mm	27 mm	55 mm	Ø10 Hole

Non-Standard Brass Plug Models – Shaft Ø45 mm

Tecnoseal Code	Osculati Reference	Weight	h	h1	Ø	m
00414/1	—	1.65 kg / 1650 g	30 mm	30 mm	65 mm	27x1.5
00414/2	43.122.45	1.62 kg / 1620 g	30 mm	30 mm	65 mm	30x2
00414/3	—	1.66 kg / 1660 g	30 mm	30 mm	65 mm	27x2
00414/4	—	1.79 kg / 1790 g	30 mm	30 mm	65 mm	16x1.5
00414/5	—	1.86 kg / 1860 g	30 mm	30 mm	65 mm	26x1.5
00414/6	—	1.52 kg / 1520 g	30 mm	30 mm	65 mm	36x3
00414X/C	—	1.85 kg / 1850 g	30 mm	30 mm	65 mm	Ø12 Hole

Non-Standard Brass Plug Models – Shaft Ø50 mm

Tecnoseal Code	Osculati Reference	Weight	h	h1	Ø	m
00415X/C	—	2.66 kg / 2660 g	29 mm	33 mm	75 mm	Ø12 Hole
00415/2	—	2.37 kg / 2370 g	29 mm	33 mm	75 mm	27x1.5

Non-Standard Brass Plug Models – Shaft Ø55 mm

Tecnoseal Code	Osculati Reference	Weight	h	h1	Ø	m
00416/1	—	3.40 kg / 3400 g	40 mm	40 mm	80 mm	Ø12 Hole

Non-Standard Brass Plug Models – Shaft Ø60 mm

Tecnoseal Code	Osculati Reference	Weight	h	h1	Ø	m
00417/2	—	3.50 kg / 3500 g	41 mm	44 mm	90 mm	34x2
00417/3	—	4.00 kg / 4000 g	41 mm	44 mm	90 mm	42x2
00417/4	—	3.90 kg / 3900 g	41 mm	44 mm	90 mm	42x3
00417/4SX	—	3.90 kg / 3900 g	41 mm	44 mm	90 mm	42x3 SX
00417X/C	—	3.83 kg / 3830 g	41 mm	44 mm	90 mm	Ø12 Hole

Non-Standard Brass Plug Models – Shaft Ø70/100 mm

Tecnoseal Code	Osculati Reference	Weight	h	h1	Ø	m
00419/1	—	6.62 kg / 6620 g	46 mm	54 mm	100 mm	38x2.5
00419/2	—	7.15 kg / 7150 g	46 mm	54 mm	100 mm	Ø12 Hole
00419/3	—	6.38 kg / 6380 g	46 mm	54 mm	100 mm	45x2.5
00419/4	—	6.13 kg / 6130 g	46 mm	54 mm	100 mm	54x2.5
00419/5DX	—	6.20 kg / 6200 g	46 mm	54 mm	100 mm	48x3 DX
00419/5SX	—	6.20 kg / 6200 g	46 mm	54 mm	100 mm	48x3 SX
00419/6	—	6.40 kg / 6400 g	46 mm	54 mm	100 mm	42x3
00419/6SX	—	6.40 kg / 6400 g	46 mm	54 mm	100 mm	42x3 SX

Dimensions and Plug Selection

Shaft Size: Nominal shaft size for the corresponding Radice installation
h: Anode body height
h1: Overall plug / anode profile height according to the catalogue drawing
Ø: Overall outside diameter
m: Brass plug thread size or hole diameter
SX: Left-hand version as listed in the Tecnoseal catalogue
DX: Corresponding DX version as listed in the Tecnoseal catalogue

For replacement selection, compare the shaft size, h, h1, overall diameter and brass plug thread or hole specification with the existing installation.
