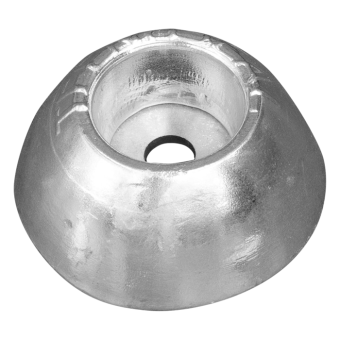

Tecnoseal Aluminium UK Type Disc Sacrificial Anodes with Steel Insert

Name: Tecnoseal Aluminium UK Type Disc Sacrificial Anodes with Steel Insert
SKU: Tecnoseal 00101UKAL

ID 1399104

$ 19

1-2 weeks delivery time

Size:

Ø70x33
98x82x32
Ø148x36

Item:

170 g
400 g
860 g

Tecnoseal aluminium UK Type disc sacrificial anodes with steel insert for rudders and trim tabs, supplied individually without mounting hardware. The range includes 00101UKAL with Ø70 × 33 mm dimensions and 170 g weight, 00102UKAL with 98 × 82 × 32 mm dimensions and 400 g weight, and 00105UKAL with Ø148 × 36 mm dimensions and 860 g weight. Depending on the model, Ø1 ranges from 30 to 42 mm and Ø2 from 11 to 14.5 mm.

Description
Ask a Question

Tecnoseal Aluminium UK Type Disc Sacrificial Anodes with Steel Insert – 00101UKAL, 00102UKAL & 00105UKAL

The Tecnoseal UK Type Aluminium Disc Anodes are sacrificial anodes with steel insert for marine rudders and trim tabs. The range includes three aluminium models with different body dimensions, insert dimensions and weights.

All models are supplied individually without mounting hardware. The 00101UKAL and 00105UKAL versions have circular bodies, while the 00102UKAL uses a 98 × 82 mm body configuration.

Key Features

Brand: Tecnoseal
Product Type: Disc sacrificial anode with insert
Type: UK Type
Material: Aluminium
Applications: Rudders and trim tabs
Configuration: Single anode
Supply: Without mounting hardware
Available Models: 00101UKAL, 00102UKAL and 00105UKAL
Weight Range: 0.17–0.86 kg

Available Models and Technical Specifications

Tecnoseal Code	Overall Dimensions	Height	Ø1	Ø2	Weight
00101UKAL	Ø70 mm	33 mm	30 mm	11 mm	0.17 kg / 170 g
00102UKAL	98 × 82 mm	32 mm	42 mm	14.5 mm	0.40 kg / 400 g
00105UKAL	Ø148 mm	36 mm	36 mm	14.5 mm	0.86 kg / 860 g

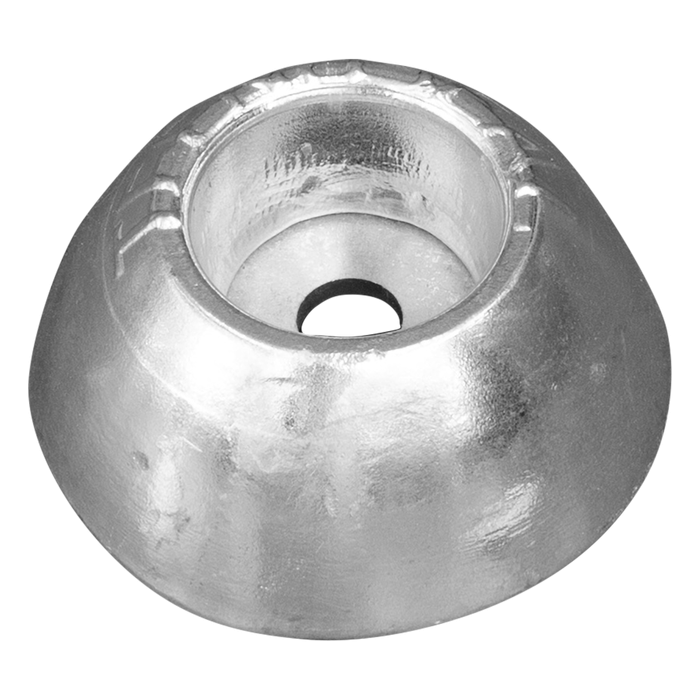

Tecnoseal 00101UKAL – Ø70 × 33 mm

Product Code: 00101UKAL
Material: Aluminium
Outside Diameter: 70 mm / 2.76 in
Height: 33 mm / 1.30 in
Ø1: 30 mm / 1.18 in
Ø2: 11 mm / 0.43 in
Weight: 0.17 kg / 0.37 lb

Tecnoseal 00102UKAL – 98 × 82 × 32 mm

Product Code: 00102UKAL
Material: Aluminium
Length (l): 98 mm / 3.86 in
Width (a): 82 mm / 3.23 in
Height: 32 mm / 1.26 in
Ø1: 42 mm / 1.65 in
Ø2: 14.5 mm / 0.57 in
Weight: 0.40 kg / 0.88 lb

Tecnoseal 00105UKAL – Ø148 × 36 mm

Product Code: 00105UKAL
Material: Aluminium
Outside Diameter: 148 mm / 5.83 in
Height: 36 mm / 1.42 in
Ø1: 36 mm / 1.42 in
Ø2: 14.5 mm / 0.57 in
Weight: 0.86 kg / 1.90 lb

Model Selection

Select the required version according to the overall body dimensions and the Ø1 / Ø2 insert dimensions. The 00102UKAL has a 98 × 82 mm body, while 00101UKAL and 00105UKAL are specified by outside diameter.
