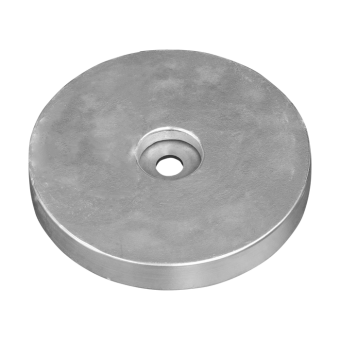

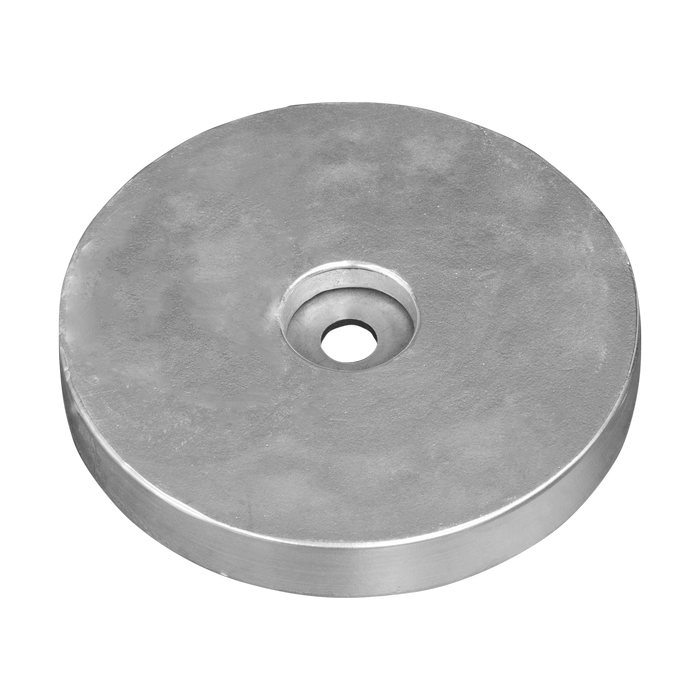

Tecnoseal Aluminium Large Disc Sacrificial Anodes with Steel Insert for Hull & Transom

Tecnoseal Aluminium Large Disc Sacrificial Anodes with Steel Insert for Hull & Transom – Ø150–230 mm

The Tecnoseal Aluminium Large Disc Anodes are large-size sacrificial disc anodes with a steel insert for hull and transom applications. The range includes seven aluminium models with different outside diameters, heights, central mounting-hole dimensions and weights.

Available sizes range from Ø150 × 25 mm to Ø230 × 35 mm, with weights from 1.30 to 3.80 kg. Select the required version according to outside diameter, height, central hole diameter and anode weight.

Key Features

• Brand: Tecnoseal
• Product Type: Large disc sacrificial anode
• Material: Aluminium
• Insert: Steel
• Applications: Hull and transom
• Available Models: 00158AL, 00159AL, 00156-1AL, 00156-2AL, 00156AL, 00157AL and 00157-1AL
• Outside Diameter Range: Ø150–230 mm
• Height Range: 25–35 mm
• Central Hole Diameters: Ø14 and Ø16 mm
• Weight Range: 1.30–3.80 kg

Available Models and Technical Specifications

Tecnoseal 00158AL – 1300 g

• Material: Aluminium
• Diameter: Ø150 mm / 5.91 in
• Height: 25 mm / 0.98 in
• Central Hole: Ø14 mm / 0.55 in
• Weight: 1.30 kg / 1300 g

Tecnoseal 00159AL – 1650 g

• Material: Aluminium
• Diameter: Ø160 mm / 6.30 in
• Height: 32 mm / 1.26 in
• Central Hole: Ø14 mm / 0.55 in
• Weight: 1.65 kg / 1650 g

Tecnoseal 00156-1AL – 2420 g

• Material: Aluminium
• Diameter: Ø200 mm / 7.87 in
• Height: 29 mm / 1.14 in
• Central Hole: Ø16 mm / 0.63 in
• Weight: 2.42 kg / 2420 g

Tecnoseal 00156-2AL – 3500 g

• Material: Aluminium
• Diameter: Ø230 mm / 9.06 in
• Height: 32 mm / 1.26 in
• Central Hole: Ø16 mm / 0.63 in
• Weight: 3.50 kg / 3500 g

Tecnoseal 00156AL – 3060 g

• Material: Aluminium
• Diameter: Ø230 mm / 9.06 in
• Height: 25 mm / 0.98 in
• Central Hole: Ø14 mm / 0.55 in
• Weight: 3.06 kg / 3060 g

Tecnoseal 00157AL – 3300 g

• Material: Aluminium
• Diameter: Ø230 mm / 9.06 in
• Height: 30 mm / 1.18 in
• Central Hole: Ø14 mm / 0.55 in
• Weight: 3.30 kg / 3300 g

Tecnoseal 00157-1AL – 3800 g

• Material: Aluminium
• Diameter: Ø230 mm / 9.06 in
• Height: 35 mm / 1.38 in
• Central Hole: Ø14 mm / 0.55 in
• Weight: 3.80 kg / 3800 g

Dimensions for Model Selection

• Ø: Outside diameter
• h: Anode height
• Ø1: Central mounting hole diameter

For replacement selection, compare the outside diameter, height, central mounting-hole diameter and anode weight with the existing installation.
