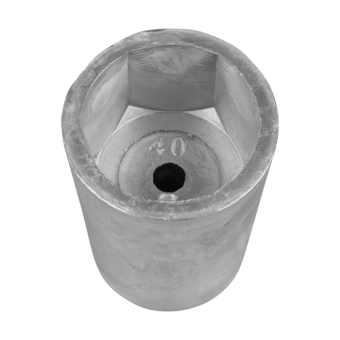

Tecnoseal Magnesium Radice Hexagonal Propeller Sacrificial Anodes, Shaft Ø22–100 mm

Name: Tecnoseal Magnesium Radice Hexagonal Propeller Sacrificial Anodes, Shaft Ø22–100 mm
SKU: Tecnoseal 00400EMG

ID 1399512

$ 14.80

1-2 weeks delivery time

Shaft Diameter:

22-25
30
35
40
45
50
55
60
70/100

Item:

250 g
420 g
30 g
200 g
90 g
650 g
70 g
120 g
260 g

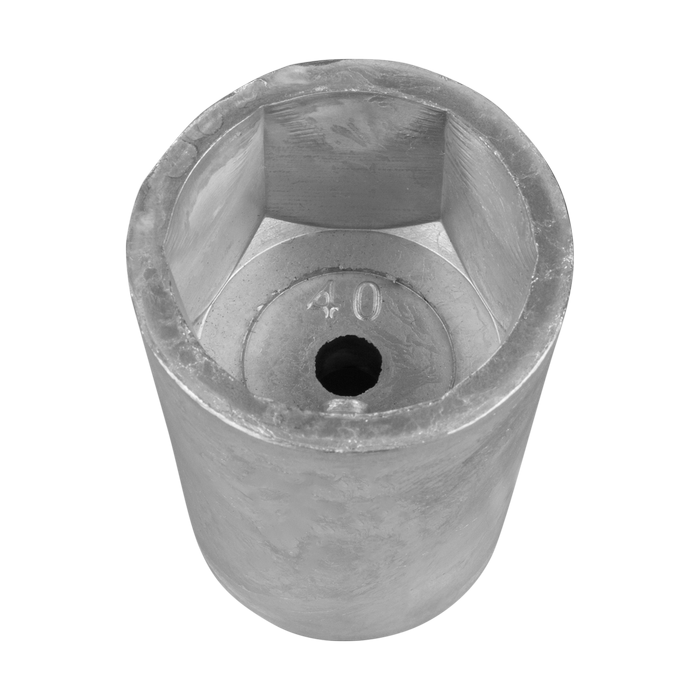

Tecnoseal magnesium Radice hexagonal-type propeller sacrificial anodes for fixed pitch propeller installations, supplied as replacement anodes only. The range includes nine models for shaft sizes from Ø22–25 mm up to Ø70/100 mm, with weights from 0.03 to 0.65 kg. Available versions range from 39 to 98 mm in height and from Ø33 to Ø97 mm in overall diameter, with individual c, Ø1 and Ø2 dimensions for replacement matching. Select the required model according to shaft size, anode dimensions and weight.

Description
Ask a Question

Tecnoseal Magnesium Radice Hexagonal Propeller Sacrificial Anodes – Replacement Anode Only, Shaft Ø22–100 mm

The Tecnoseal Magnesium Radice Hexagonal Propeller Anodes are replacement sacrificial anodes for Radice fixed pitch propeller installations. The range includes nine magnesium models designed for different shaft sizes and hexagonal anode dimensions.

The available versions cover shaft sizes from Ø22–25 mm up to Ø70/100 mm, with weights from 0.03 to 0.65 kg. Depending on the model, overall height ranges from 39 to 98 mm and overall diameter from Ø33 to Ø97 mm. Each version has specific c, Ø1 and Ø2 dimensions for replacement matching.

Key Features

Brand: Tecnoseal
Type: Radice Propeller Anode – Hexagonal Type
Application: Fixed Pitch Propeller
Supply: Replacement Anode Only
Material: Magnesium
Available Models: 00400EMG, 00401EMG, 00402EMG, 00403EMG, 00404EMG, 00405EMG, 00406EMG, 00407EMG and 00409EMG
Shaft Size Range: Ø22–25 mm to Ø70/100 mm
Height Range: 39–98 mm
Overall Diameter Range: Ø33–97 mm
Weight Range: 0.03–0.65 kg

Available Models and Technical Specifications

Tecnoseal Code	Shaft Size	Weight	c	Height (h)	Ø	Ø1	Ø2
00400EMG	Ø22–25 mm	0.03 kg / 30 g	22 mm	39 mm	33 mm	7 mm	10 mm
00401EMG	Ø30 mm	0.07 kg / 70 g	27 mm	53 mm	41 mm	9 mm	14 mm
00402EMG	Ø35 mm	0.09 kg / 90 g	32 mm	62 mm	46 mm	9 mm	14 mm
00403EMG	Ø40 mm	0.12 kg / 120 g	36 mm	67 mm	51 mm	9 mm	15 mm
00404EMG	Ø45 mm	0.20 kg / 200 g	41 mm	76 mm	61 mm	11 mm	22 mm
00405EMG	Ø50 mm	0.26 kg / 260 g	46 mm	84 mm	72 mm	11 mm	21 mm
00406EMG	Ø55 mm	0.25 kg / 250 g	50 mm	87 mm	74 mm	11 mm	20 mm
00407EMG	Ø60 mm	0.42 kg / 420 g	55 mm	98 mm	82 mm	11 mm	21 mm
00409EMG	Ø70/100 mm	0.65 kg / 650 g	54 mm	97 mm	97 mm	11 mm	21 mm

Tecnoseal 00400EMG – Shaft Ø22–25 mm

Material: Magnesium
Supply: Replacement anode only
Shaft Size: Ø22–25 mm
Weight: 0.03 kg / 30 g / 0.07 lb
c: 22 mm / 0.87 in
Height (h): 39 mm / 1.54 in
Overall Diameter (Ø): 33 mm / 1.30 in
Ø1: 7 mm / 0.28 in
Ø2: 10 mm / 0.39 in

Tecnoseal 00401EMG – Shaft Ø30 mm

Material: Magnesium
Supply: Replacement anode only
Shaft Size: Ø30 mm
Weight: 0.07 kg / 70 g / 0.15 lb
c: 27 mm / 1.06 in
Height (h): 53 mm / 2.09 in
Overall Diameter (Ø): 41 mm / 1.61 in
Ø1: 9 mm / 0.35 in
Ø2: 14 mm / 0.55 in

Tecnoseal 00402EMG – Shaft Ø35 mm

Material: Magnesium
Supply: Replacement anode only
Shaft Size: Ø35 mm
Weight: 0.09 kg / 90 g / 0.20 lb
c: 32 mm / 1.26 in
Height (h): 62 mm / 2.44 in
Overall Diameter (Ø): 46 mm / 1.81 in
Ø1: 9 mm / 0.35 in
Ø2: 14 mm / 0.55 in

Tecnoseal 00403EMG – Shaft Ø40 mm

Material: Magnesium
Supply: Replacement anode only
Shaft Size: Ø40 mm
Weight: 0.12 kg / 120 g / 0.26 lb
c: 36 mm / 1.42 in
Height (h): 67 mm / 2.64 in
Overall Diameter (Ø): 51 mm / 2.01 in
Ø1: 9 mm / 0.35 in
Ø2: 15 mm / 0.59 in

Tecnoseal 00404EMG – Shaft Ø45 mm

Material: Magnesium
Supply: Replacement anode only
Shaft Size: Ø45 mm
Weight: 0.20 kg / 200 g / 0.44 lb
c: 41 mm / 1.61 in
Height (h): 76 mm / 2.99 in
Overall Diameter (Ø): 61 mm / 2.40 in
Ø1: 11 mm / 0.43 in
Ø2: 22 mm / 0.87 in

Tecnoseal 00405EMG – Shaft Ø50 mm

Material: Magnesium
Supply: Replacement anode only
Shaft Size: Ø50 mm
Weight: 0.26 kg / 260 g / 0.57 lb
c: 46 mm / 1.81 in
Height (h): 84 mm / 3.31 in
Overall Diameter (Ø): 72 mm / 2.83 in
Ø1: 11 mm / 0.43 in
Ø2: 21 mm / 0.83 in

Tecnoseal 00406EMG – Shaft Ø55 mm

Material: Magnesium
Supply: Replacement anode only
Shaft Size: Ø55 mm
Weight: 0.25 kg / 250 g / 0.55 lb
c: 50 mm / 1.97 in
Height (h): 87 mm / 3.43 in
Overall Diameter (Ø): 74 mm / 2.91 in
Ø1: 11 mm / 0.43 in
Ø2: 20 mm / 0.79 in

Tecnoseal 00407EMG – Shaft Ø60 mm

Material: Magnesium
Supply: Replacement anode only
Shaft Size: Ø60 mm
Weight: 0.42 kg / 420 g / 0.93 lb
c: 55 mm / 2.17 in
Height (h): 98 mm / 3.86 in
Overall Diameter (Ø): 82 mm / 3.23 in
Ø1: 11 mm / 0.43 in
Ø2: 21 mm / 0.83 in

Tecnoseal 00409EMG – Shaft Ø70/100 mm

Material: Magnesium
Supply: Replacement anode only
Shaft Size: Ø70/100 mm
Weight: 0.65 kg / 650 g / 1.43 lb
c: 54 mm / 2.13 in
Height (h): 97 mm / 3.82 in
Overall Diameter (Ø): 97 mm / 3.82 in
Ø1: 11 mm / 0.43 in
Ø2: 21 mm / 0.83 in

Dimensions for Model Selection

Shaft Size: Nominal shaft size for the corresponding Radice installation
c: Hexagonal / lower body dimension according to the catalogue drawing
h: Overall anode height
Ø: Overall outside diameter
Ø1: Central mounting-hole diameter
Ø2: Upper internal diameter

For replacement selection, compare the shaft size, c, overall height, outside diameter, Ø1 and Ø2 dimensions and anode weight with the existing installation.
