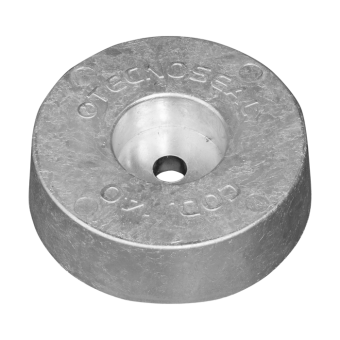

Tecnoseal Aluminium Stern Disc Sacrificial Anodes

ID 1399328

$ 92.08

1-2 weeks delivery time

Type:

Anode Only
Anode KIT

Size:

Ø125x38
Ø140x30
Ø140x35

Item:

1000 g
1100 g
1600 g
1300 g
1340 g
1370 g

Tecnoseal aluminium stern disc sacrificial anodes for stern applications, available either as anode only without insert or as complete kits with mounting components. The range covers Ø125 and Ø140 mm outside diameters, heights from 30 to 38 mm and weights from 1.00 to 1.60 kg depending on size and supply configuration. All versions feature Ø1 50 mm, Ø2 14.5 mm and Ø3 48 mm dimensions. Complete kits include the corresponding aluminium stern disc anode together with 00153-PERNOCOMPLETO / nut, PP cap and pad. Tecnoseal 00140AL corresponds to Osculati 43.210.12 and Tecnoseal 00131AL corresponds to Osculati 43.210.13. Select the required version according to diameter, height, weight and supply configuration.

Description
Ask a Question

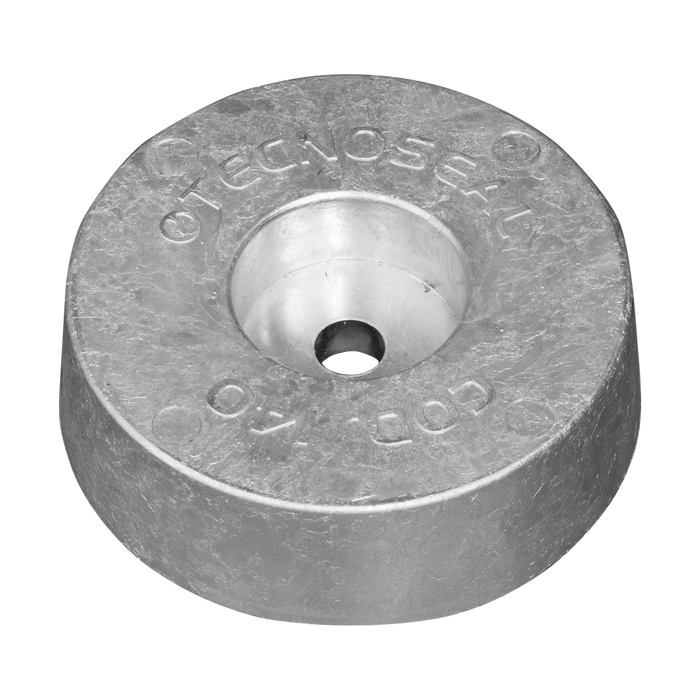

Tecnoseal Aluminium Stern Disc Sacrificial Anodes – Anode Only & Complete Kits Ø125–140 mm

The Tecnoseal Aluminium Stern Disc Anodes are sacrificial anodes for stern applications, available in two supply configurations: anode only without insert or as a complete kit with mounting components.

The range covers outside diameters of Ø125 and Ø140 mm with heights from 30 to 38 mm. All variants share the same Ø1, Ø2 and Ø3 dimensions. The complete kit versions include the corresponding aluminium stern disc anode together with 00153-PERNOCOMPLETO / nut, PP cap and pad.

Tecnoseal 00140AL is also referenced as Osculati 43.210.12, while Tecnoseal 00131AL corresponds to Osculati 43.210.13.

Key Features

Brand: Tecnoseal
Product Type: Stern disc sacrificial anode
Material: Aluminium
Application: Stern
Supply Options: Anode only without insert or complete kit
Anode Only Models: 00140AL, 00130AL and 00131AL
Complete Kit Models: 00141AL, 00130CAL and 00131CAL
Cross References: Tecnoseal 00140AL / Osculati 43.210.12; Tecnoseal 00131AL / Osculati 43.210.13
Outside Diameter Range: Ø125–140 mm
Height Range: 30–38 mm
Weight Range: 1.00–1.60 kg
Ø1: 50 mm
Ø2: 14.5 mm
Ø3: 48 mm

Available Models and Technical Specifications

Tecnoseal Code	Osculati Reference	Supply	Weight	Diameter (Ø)	Height (h)	Ø1	Ø2	Ø3
00140AL	43.210.12	Anode Only	1.10 kg / 1100 g	125 mm	38 mm	50 mm	14.5 mm	48 mm
00141AL	—	Complete Kit	1.37 kg / 1370 g	125 mm	38 mm	50 mm	14.5 mm	48 mm
00130AL	—	Anode Only	1.00 kg / 1000 g	140 mm	30 mm	50 mm	14.5 mm	48 mm
00130CAL	—	Complete Kit	1.34 kg / 1340 g	140 mm	30 mm	50 mm	14.5 mm	48 mm
00131AL	43.210.13	Anode Only	1.30 kg / 1300 g	140 mm	35 mm	50 mm	14.5 mm	48 mm
00131CAL	—	Complete Kit	1.60 kg / 1600 g	140 mm	35 mm	50 mm	14.5 mm	48 mm

Anode Only Versions

Tecnoseal 00140AL / Osculati 43.210.12 – Ø125 × 38 mm

Supply: Anode only, without insert
Material: Aluminium
Diameter: Ø125 mm / 4.92 in
Height: 38 mm / 1.50 in
Ø1: 50 mm / 1.97 in
Ø2: 14.5 mm / 0.57 in
Ø3: 48 mm / 1.89 in
Weight: 1.10 kg / 1100 g

Tecnoseal 00130AL – Ø140 × 30 mm

Supply: Anode only, without insert
Material: Aluminium
Diameter: Ø140 mm / 5.51 in
Height: 30 mm / 1.18 in
Ø1: 50 mm / 1.97 in
Ø2: 14.5 mm / 0.57 in
Ø3: 48 mm / 1.89 in
Weight: 1.00 kg / 1000 g

Tecnoseal 00131AL / Osculati 43.210.13 – Ø140 × 35 mm

Supply: Anode only, without insert
Material: Aluminium
Diameter: Ø140 mm / 5.51 in
Height: 35 mm / 1.38 in
Ø1: 50 mm / 1.97 in
Ø2: 14.5 mm / 0.57 in
Ø3: 48 mm / 1.89 in
Weight: 1.30 kg / 1300 g

Complete Kit Versions

The complete kits include the corresponding aluminium stern disc anode together with 00153-PERNOCOMPLETO / nut, PP cap and pad.

Tecnoseal 00141AL – Ø125 × 38 mm Complete Kit

Supply: Complete kit
Material: Aluminium
Diameter: Ø125 mm / 4.92 in
Height: 38 mm / 1.50 in
Ø1: 50 mm / 1.97 in
Ø2: 14.5 mm / 0.57 in
Ø3: 48 mm / 1.89 in
Kit Weight: 1.37 kg / 1370 g
Kit Components: Aluminium stern disc anode + 00153-PERNOCOMPLETO / nut, PP cap and pad

Tecnoseal 00130CAL – Ø140 × 30 mm Complete Kit

Supply: Complete kit
Material: Aluminium
Diameter: Ø140 mm / 5.51 in
Height: 30 mm / 1.18 in
Ø1: 50 mm / 1.97 in
Ø2: 14.5 mm / 0.57 in
Ø3: 48 mm / 1.89 in
Kit Weight: 1.34 kg / 1340 g
Kit Components: Aluminium stern disc anode + 00153-PERNOCOMPLETO / nut, PP cap and pad

Tecnoseal 00131CAL – Ø140 × 35 mm Complete Kit

Supply: Complete kit
Material: Aluminium
Diameter: Ø140 mm / 5.51 in
Height: 35 mm / 1.38 in
Ø1: 50 mm / 1.97 in
Ø2: 14.5 mm / 0.57 in
Ø3: 48 mm / 1.89 in
Kit Weight: 1.60 kg / 1600 g
Kit Components: Aluminium stern disc anode + 00153-PERNOCOMPLETO / nut, PP cap and pad

Dimensions for Model Selection

Ø: Outside diameter
h: Anode height
Ø1: Upper recess diameter
Ø2: Central hole diameter
Ø3: Lower recess diameter

For replacement selection, compare the outside diameter, height, Ø1 / Ø2 / Ø3 dimensions, weight and required supply configuration with the existing installation.
