Tecnoseal TEC-40 rectangular sacrificial plate anodes for marine hull and transom applications, available in zinc (TEC-40) and magnesium (TEC-40MG). Both versions measure 190 × 70 × 13 mm and feature eight Ø7 mm mounting holes arranged in two rows, with catalogue mounting dimensions i = 45 mm and i1 = 35 mm. The zinc version weighs 1.00 kg (2.20 lbs), while the magnesium version weighs 0.25 kg (0.55 lbs). Both models share the same dimensions and mounting configuration.
- Description
- Ask a Question
-

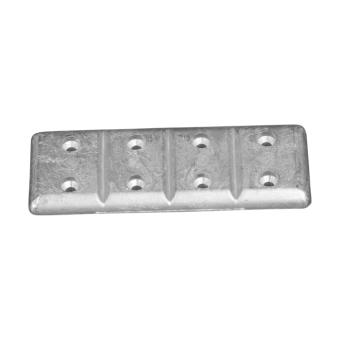

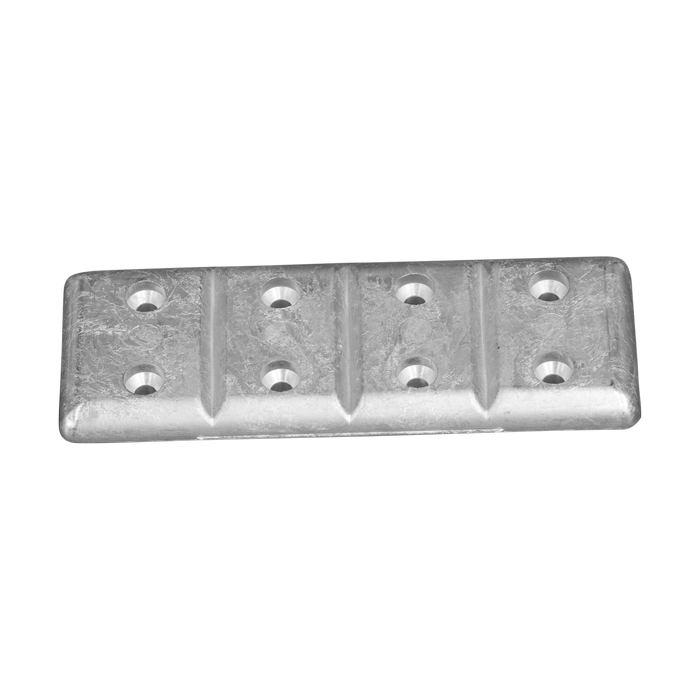

Tecnoseal TEC-40 Rectangular Hull and Transom Plate Anode 190x70x13 mm – Zinc / Magnesium
The Tecnoseal TEC-40 series includes rectangular sacrificial plate anodes for marine hull and transom applications. Two material versions are available: zinc (TEC-40) and magnesium (TEC-40MG).
Both models measure 190 × 70 × 13 mm and feature eight Ø7 mm mounting holes arranged in two rows. The catalogue specifies mounting dimensions of 45 mm (i) and 35 mm (i1).
Key Features
- Manufacturer: Tecnoseal
- Product Series: TEC-40
- Product Type: Rectangular sacrificial plate anode
- Application: Marine hull and transom
- Available Materials: Zinc, Magnesium
- Dimensions: 190 × 70 × 13 mm
- Mounting Configuration: Eight holes arranged in two rows
- Mounting Dimension (i): 45 mm
- Mounting Dimension (i1): 35 mm
- Mounting Hole Diameter (Ø): 7 mm
Technical Specifications
Parameter Specification Length (l) 190 mm / 7.48 in Width (a) 70 mm / 2.76 in Height (h) 13 mm / 0.51 in Mounting Dimension (i) 45 mm / 1.77 in Mounting Dimension (i1) 35 mm / 1.38 in Mounting Hole Diameter (Ø) 7 mm / 0.28 in Number of Mounting Holes 8
Available Models
Product Code Material Weight EAN TEC-40 Zinc 1.00 kg / 2.20 lbs 8033837068723 TEC-40MG Magnesium 0.25 kg / 0.55 lbs 8052744982106
Marine Application
The Tecnoseal TEC-40 rectangular plate anodes are intended for marine hull and transom installations requiring the specified dimensions and eight-hole mounting arrangement.
The zinc and magnesium materials provide sacrificial corrosion protection for electrically connected metallic components. Select the appropriate material according to the vessel's operating water conditions and existing corrosion protection system.
Mounting and Replacement
Both versions have eight Ø7 mm mounting holes arranged in two rows. The catalogue mounting dimensions are i = 45 mm and i1 = 35 mm.
Before ordering, compare the dimensions and hole arrangement with the existing anode.
Inspect the anode periodically and replace it when sufficiently consumed.
Supply: One Tecnoseal TEC-40 series rectangular sacrificial plate anode in the selected material.
-
