The Tecnoseal 00160 is a zinc sacrificial stern anode from the CAP series, featuring a rectangular plate with insert for marine corrosion protection. It measures 230 × 80 × 40 mm and has a central M42×3 threaded mounting specification with an additional Ø14 mm dimension shown in the manufacturer's drawing. The anode weighs 4.00 kg (8.82 lbs) and is supplied as an individual anode (anode only).
- Description
- Ask a Question
-

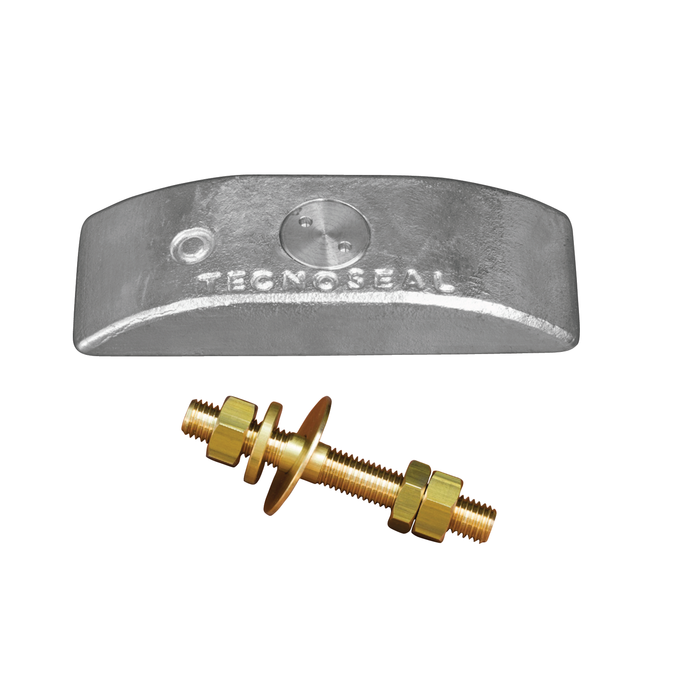

Tecnoseal 00160 CAP Series Zinc Stern Anode with Insert 230x80x40 mm M42x3
The Tecnoseal 00160 is a zinc sacrificial stern anode from the CAP series. It is a rectangular plate with insert, designed for marine stern applications requiring the specified mounting arrangement.
The anode measures 230 × 80 × 40 mm and features a central M42×3 mounting specification. The manufacturer's drawing also identifies a Ø14 mm dimension (Ø1). Its catalogue weight is 4.00 kg (8.82 lbs).
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00160
- Series: CAP
- Product Type: Sacrificial stern plate anode with insert
- Material: Zinc
- Application: Marine stern
- Dimensions: 230 × 80 × 40 mm
- Mounting Specification: M42×3
- Additional Dimension (Ø1): 14 mm
- Weight: 4.00 kg / 4000 g
- Supply: Anode only
- EAN: 8033837060215
Technical Specifications
Parameter Specification Tecnoseal Code 00160 Material Zinc Series CAP Length (l) 230 mm / 9.06 in Width (a) 80 mm / 3.15 in Height (h) 40 mm / 1.57 in Mounting (Ø) M42×3 Additional Dimension (Ø1) 14 mm / 0.55 in Weight 4.00 kg / 8.82 lbs EAN 8033837060215
CAP Series Stern Application
The Tecnoseal 00160 is intended for marine stern installations using the CAP series anode configuration.
The zinc material provides sacrificial corrosion protection for electrically connected metallic marine components when installed with proper electrical contact.
Mounting and Replacement
The anode has a central M42×3 mounting specification and an additional Ø14 mm dimension indicated in the catalogue drawing.
Before ordering, compare the dimensions, mounting specification and shape with the existing anode.
Inspect the sacrificial anode periodically and replace it when sufficiently consumed.
What's Included
- 1 × Tecnoseal 00160 zinc stern anode
Note: The manufacturer specifies "anode only". Additional mounting hardware is not listed as included.
-
