ID
1406288
$ 60.84
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 400 g
- 260 g
- 970 g
The Tecnoseal TEC-30 series includes rectangular sacrificial plate anodes for marine corrosion protection, available in zinc (TEC-30), aluminium (TEC-30AL) and magnesium (TEC-30MG). All versions measure 156 × 67 × 16 mm and share the same mounting configuration, with catalogue dimensions i = 120 mm, i1 = 117 mm and Ø6.7 mm holes. The zinc model weighs 0.97 kg, the aluminium model 0.40 kg and the magnesium model 0.26 kg. Select the required material according to the vessel's operating water conditions and corrosion protection system.
- Description
- Ask a Question
-

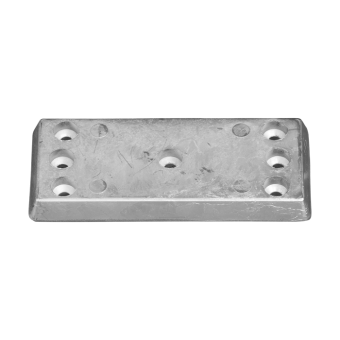

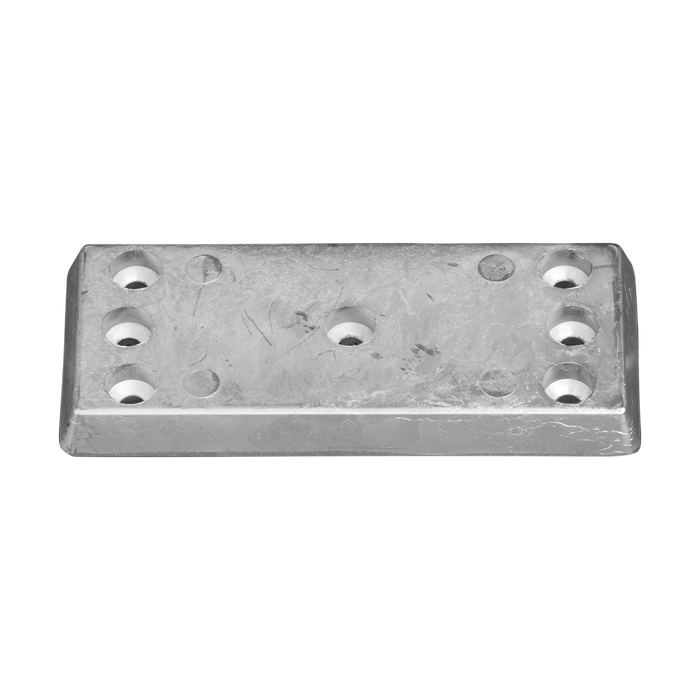

Tecnoseal TEC-30 Rectangular Plate Anode 156x67x16 mm – Zinc, Aluminium & Magnesium
The Tecnoseal TEC-30 series includes rectangular sacrificial plate anodes for marine corrosion protection. The range consists of three material versions: zinc (TEC-30), aluminium (TEC-30AL) and magnesium (TEC-30MG).
All three versions have identical external dimensions of 156 × 67 × 16 mm and share the same mounting configuration. The catalogue specifies mounting dimensions of 120 mm (i), 117 mm (i1) and a mounting hole diameter of 6.7 mm (Ø).
Key Features
- Manufacturer: Tecnoseal
- Product Series: TEC-30
- Product Type: Rectangular sacrificial plate anode
- Available Materials: Zinc, Aluminium, Magnesium
- Application: Marine corrosion protection
- Dimensions: 156 × 67 × 16 mm
- Mounting Dimension (i): 120 mm
- Mounting Dimension (i1): 117 mm
- Mounting Hole Diameter (Ø): 6.7 mm
Technical Specifications
Parameter Specification Length (l) 156 mm / 6.14 in Width (a) 67 mm / 2.64 in Height (h) 16 mm / 0.63 in Mounting Dimension (i) 120 mm / 4.72 in Mounting Dimension (i1) 117 mm / 4.61 in Mounting Hole Diameter (Ø) 6.7 mm / 0.26 in
Available Models
Product Code Material Weight EAN TEC-30 Zinc 0.97 kg / 2.14 lbs 8033837068716 TEC-30AL Aluminium 0.40 kg / 0.88 lbs 8059617810696 TEC-30MG Magnesium 0.26 kg / 0.57 lbs 8052744984728
Marine Application
The Tecnoseal TEC-30 plate anodes are used for sacrificial corrosion protection of electrically connected metallic components in marine installations.
The zinc, aluminium and magnesium versions allow selection of the appropriate material according to the vessel's operating water conditions and existing corrosion protection system.
Mounting and Replacement
All TEC-30 versions share the same mounting dimensions: i = 120 mm, i1 = 117 mm and Ø6.7 mm holes.
Before ordering, compare the anode's dimensions and mounting configuration with the existing component.
Inspect the anode periodically and replace it when sufficiently consumed.
Supply: One Tecnoseal TEC-30 series rectangular sacrificial plate anode in the selected material.
-
