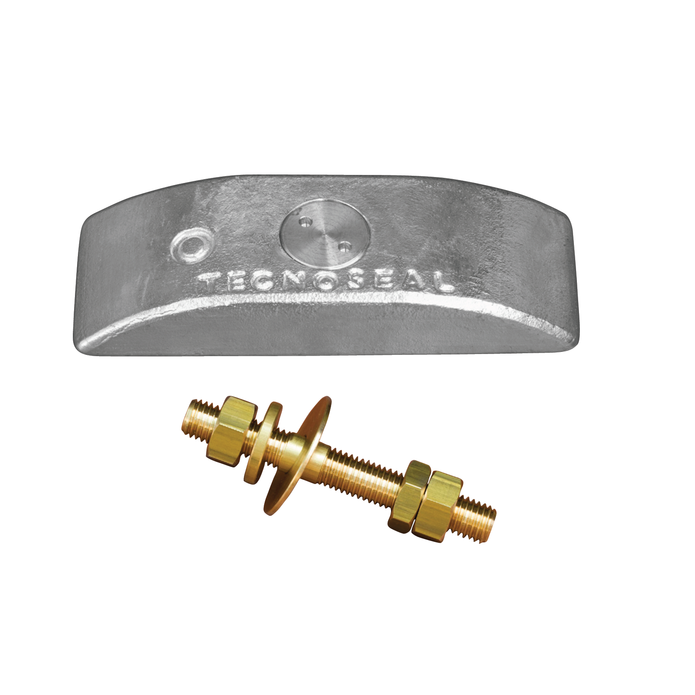

The Tecnoseal 00162 is a complete zinc stern anode kit from the CAP series, consisting of a Tecnoseal 00160 rectangular anode with insert, a 00153-PERNOCOMPLETO mounting bolt assembly and a gasket (pad). The anode measures 230 × 80 × 40 mm and features an M42×3 mounting specification with an additional Ø14 mm dimension. The complete kit weighs 4.30 kg (9.48 lbs) and is supplied with the mounting components shown in the manufacturer's catalogue.
- Description
- Ask a Question
-
Tecnoseal 00162 CAP Series Zinc Stern Anode Kit with Bolt and Gasket 230x80x40 mm M42x3
The Tecnoseal 00162 is a zinc sacrificial stern anode kit from the CAP series. The kit includes a rectangular anode with insert, a complete mounting bolt assembly and a gasket.
The included Tecnoseal 00160 anode measures 230 × 80 × 40 mm and has an M42×3 mounting specification. The complete kit has a catalogue weight of 4.30 kg (9.48 lbs).
Kit Contents
- 1 × Tecnoseal 00160: Zinc rectangular stern anode with insert
- 1 × Tecnoseal 00153-PERNOCOMPLETO: Complete mounting bolt assembly
- 1 × Gasket / Pad: Supplied with the kit
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00162
- Series: CAP
- Product Type: Stern sacrificial anode kit
- Material: Zinc
- Anode Construction: Rectangular plate with insert
- Application: Marine stern
- Anode Dimensions: 230 × 80 × 40 mm
- Mounting Specification: M42×3
- Additional Dimension (Ø1): 14 mm
- Complete Kit Weight: 4.30 kg / 9.48 lbs
- EAN: 8033837060222
Technical Specifications
Parameter Specification Tecnoseal Code 00162 Series CAP Anode Material Zinc Anode Code 00160 Length (l) 230 mm / 9.06 in Width (a) 80 mm / 3.15 in Height (h) 40 mm / 1.57 in Mounting (Ø) M42×3 Additional Dimension (Ø1) 14 mm / 0.55 in Mounting Assembly 00153-PERNOCOMPLETO Gasket / Pad Included Total Kit Weight 4.30 kg / 9.48 lbs EAN 8033837060222
CAP Series Stern Application
The Tecnoseal 00162 kit is intended for marine stern installations using the CAP series anode configuration.
The zinc anode provides sacrificial corrosion protection for electrically connected metallic marine components when installed with proper electrical contact.
Mounting and Replacement
The kit includes the Tecnoseal 00160 anode, the 00153-PERNOCOMPLETO mounting assembly and a gasket.
Before ordering, compare the 230 × 80 × 40 mm anode dimensions and M42×3 mounting specification with the existing installation.
Inspect the anode periodically and replace it when sufficiently consumed.
Supply: One complete Tecnoseal 00162 CAP series zinc stern anode kit with mounting bolt assembly and gasket.
-
